Xip -B01 Quick Manual

The Quick Guide is for quick installing and connecting the Full HD Multiple Stream Micro Bullet IP Camera XIP-B01
PANTHER. For details, please refer to the User's Manual of the IP Camera.

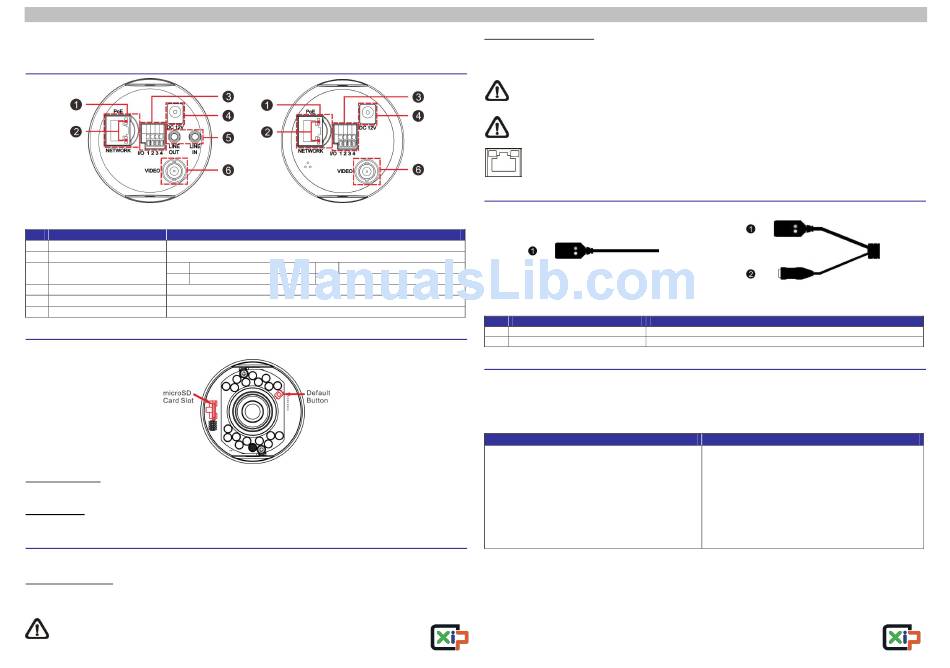

Camera's Connectors (Indoor Only)
Rear Panel 1
No. Connector Definition
1 PoE NETWORK For Ethernet cable and PSE connection
2 Network LEDs Network connection and activity indication
Input −
1
3 Alarm I/O
2 Input +
4 Power Jack DC 12V connector for power connection
5 LINE IN & LINE OUT Two-way audio transmission
6 VIDEO (BNC Connector) For analog videos output

MicroSD Card Slot / Default Button (Indoor and Outdoor Models)

The position of the microSD Card Slot and the Default Button are shown as below.
MicroSD Card Slot
Insert the SD Card in the microSD Card Slot to store videos and snapshots.
Default Button
Press the button with a proper tool for at least 20 seconds to restore the system.

IP Camera Installation

Please follow the instructions below to complete IP Camera installation.
Power up the Camera
To power up the IP Camera, please plug the camera's DC 12V cable into the power terminal block. Alternatively,
connect the Ethernet cable to the camera's RJ-45 port and plug the other end of the cable into a PoE switch.
NOTE: If PoE is used, make sure Power Sourcing Equipment (PSE) is in use in the network.
Mini IR Bullet Camera IP XIP - B01 PANTHER

Ethernet Cable Connection

Connect one end of the CAT5 Ethernet cable to the RJ-45 connector of the IP Camera, and the other end of the cable
to the network switch or PC.

Function Cables (Outdoor Only)

Rear Panel 2
Output −
3
4 Output +
No.

Before Login to the IP Camera

A client program will be automatically installed on the PC when connecting to the IP Camera. Before logging in to the
IP Camera, please ensure downloading the ActiveX control is allowed by either changing the ActiveX controls and
plug-ins or setting Internet's security level to default. For further details, please refer to the User's Manual of the IP
Camera.
Step 1: Start the Internet Explorer (IE).
Step 2: Select <Tools> from the main menu of the
Step 3: Click on the <Security> tab and select
Step 4: Set "ActiveX controls and plug-ins" items to
1
NOTE: In some cases, Ethernet Crossover cable might be needed when connecting the IP Camera directly
to the PC.
NOTE: Check the status of the link indicator and activity indicator LEDs. If the LEDs are unlit, please check
the LAN connection.
Green Link Light indicates good network connection.
Orange Activity Light flashes for network activity indication.
RJ-45 Cable
Connector
1 RJ-45 For Ethernet cable and PSE connection
2 Power Jack DC 12V connector for power connection

ActiveX Controls and Plug-ins Settings

browser. Then click on <Internet Options>.
"Internet", and click on <Custom level> to
change ActiveX settings.
<Prompt> or <Enable>.
RJ-45 & DC 12V Cable
Definition

Internet Security Level

Step 1: Start the Internet Explorer (IE).
Step 2: Select <Tools> from the main menu of the
browser. Then click on <Internet Options>.
Step 3: Click on the <Security> tab and select
"Internet".
Step 4: Down the page, click "Default Level" and click
on <OK> to confirm the setting. Close the
browser window, and open a new one later for
accessing the IP Camera.
2
