Moxa Technologies RNAS-1200 Series Quick Installation Manual

RNAS-1200 Series

Quick Installation Guide

Third Edition, January 2014
Overview
Moxa RNAS-1200 Series is a network attached storage (NAS)
appliance designed to provide high performance, high reliability
and high capacity for video surveillance or other mobile,
high-capacity storage applications facing harsh environments.
The RNAS-1200 Series comes with an Intelligent Heating Solution
(IHS) to ensure reliable operations under super low temperatures.
Data XPro also helps protect data in high temperature and high
vibration environments, while the fast synchronizations developed
for the RAID 1 architecture adapt this often fragile drive
architecture to serve as a critical component in a fully redundant,
extremely rugged data repository.
Package Checklist
Before installing the computers, verify that the package contains
the following items:
• 1 RNAS-1200 computer
• Wall mounting kit
• Documentation and CD
• Quick installation guide (printed)
• Warranty card
NOTE: Please notify your sales representative if any of the above
items are missing or damaged.

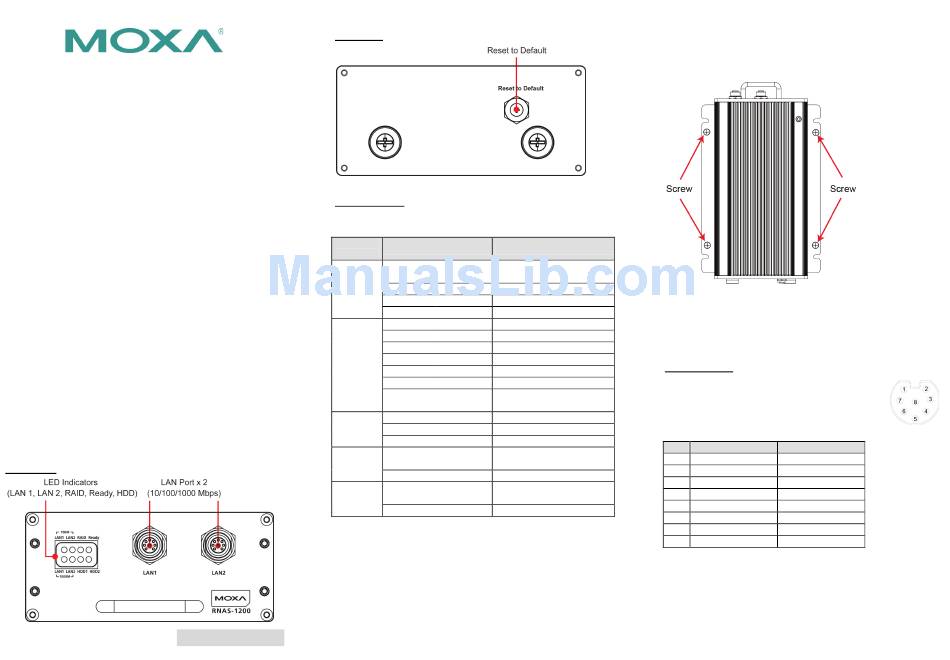

RNAS-1200 Panel Layout
Front View
P/N: 1802012000003
– 1 –
Rear View
LED Indicators
The following table describes the LED indicators located on the
front panel of the RNAS-1200.
LED
LED Color/Status
Name
Power is on and
Green
functioning normally
Ready On 1 sec Off 1 sec Resetting to default
On 5 sec Off 5 sec. IHS pre-heating
Off Power error, or off
Red RAID recovery fails
On 1 sec Off 0.5 sec RAID disk is recovering
On 5 sec Off 1 sec HDD1 fails
On 10 sec Off 1 sec HDD 2 fails
RAID
On 15 sec Off 1 sec HDD 1 and HDD2 fail
On 1 sec Off 5 sec HDD overheated; no power
RAID recovery complete, or
Off
no activity
Green 100 Mbps Ethernet mode
LAN
Yellow 1000 Mbps Ethernet mode
(1, 2)
Off No Ethernet activity
Drive 1 is
Yellow
HDD1 writing/reading data
Off No activity
HDD2 is
Yellow
HDD2 writing/reading data
Off No activity
– 2 –
Installing the RNAS-1200
The RNAS-1200 comes with two wall-mounting brackets. Use two
screws on each side to attach the RNAS-1200 to a wall or cabinet.
LED Function
The RNAS-1200 also comes with the optional rack installation kit.
Simply slide the RNAS-1200 into the rack mounting bracket to
complete the installation. Refer to the User's Manual for a more
detailed installation procedure.
Connector Description
Ethernet Ports
Two 10/100/1000 Mbps Ethernet ports using M12
connectors are located on the front panel. The pin
assignments are shown in the picture to the right,
and the table below.
No.
1
2
3
4
5
6
7
8
10/100 Mbps 1000 MBps
– TRD3+
– TRD4+
– TRD4-
ERx- TRD1-
ETx+ TRD2+
ERx+ TRD1+
– TRD3-
ETx- TRD2-
