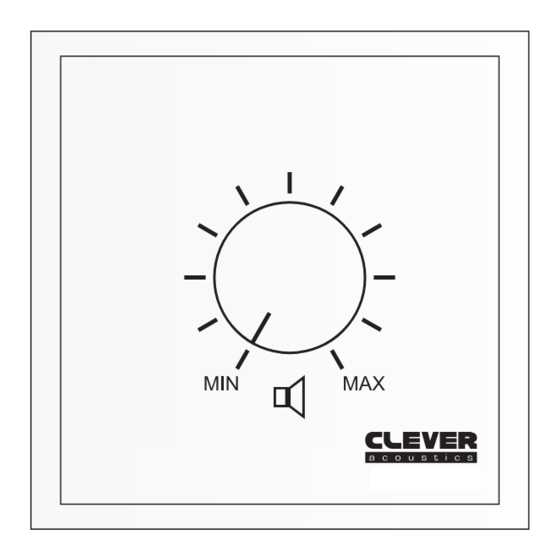

VC 20 100V 20W VOLUME CONTROL

VC 40 100V 40W VOLUME CONTROL

VC 60 100V 60W VOLUME CONTROL

VC 20R 100V 20W VOLUME CONTROL + RELAY

VC 40R 100V 40W VOLUME CONTROL + RELAY

VC 60R 100V 60W VOLUME CONTROL + RELAY

Code: CRVOL01

Code: CRVOL02

Code: CRVOL03

Code: CRVOL04

Code: CRVOL05

Code: CRVOL06

USER MANUAL

Table of Contents

Need help?

Do you have a question about the VC 20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Clever Acoustics VC 20

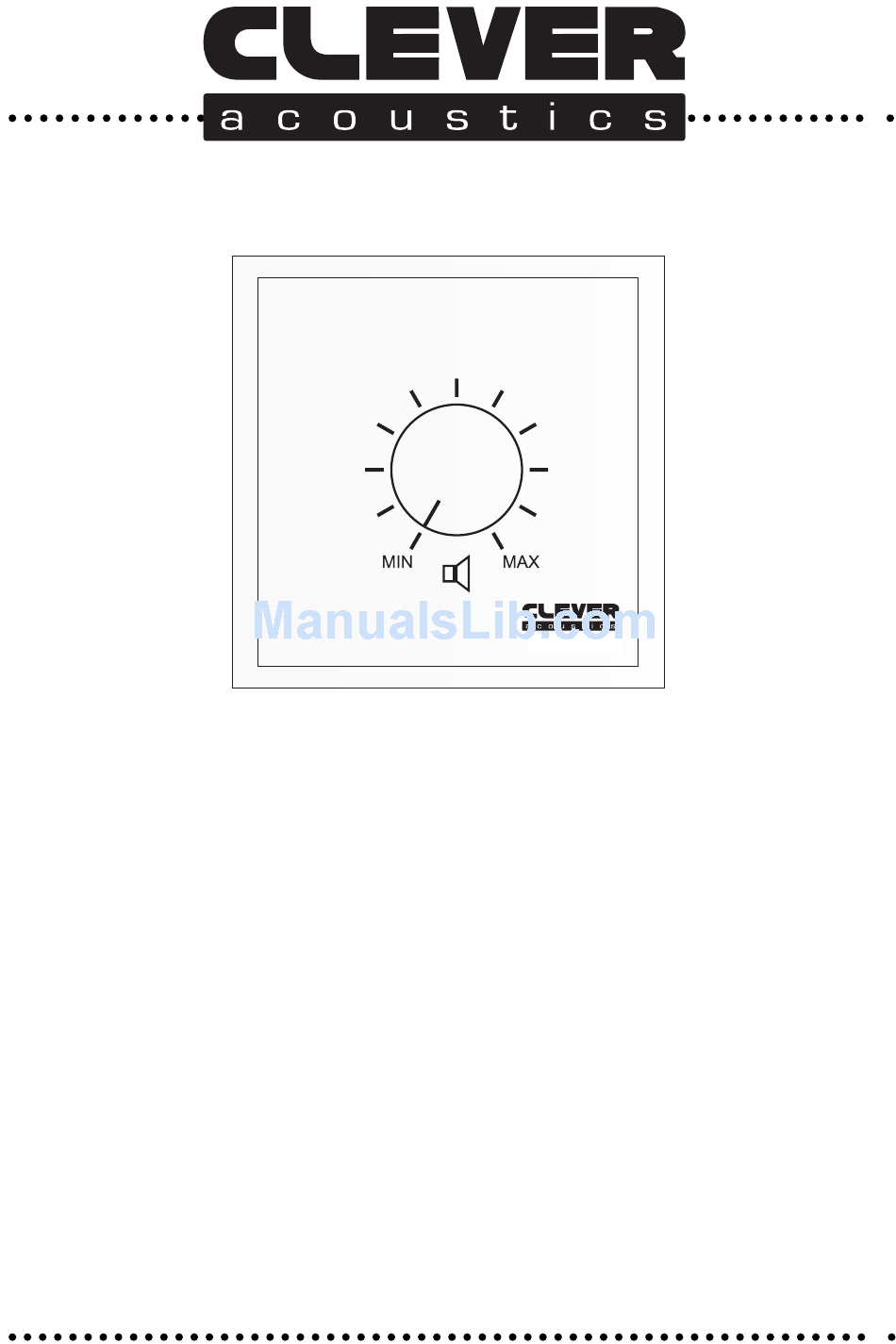

Page 1 VC 20 100V 20W VOLUME CONTROL Code: CRVOL01 VC 40 100V 40W VOLUME CONTROL Code: CRVOL02 VC 60 100V 60W VOLUME CONTROL Code: CRVOL03 VC 20R 100V 20W VOLUME CONTROL + RELAY Code: CRVOL04 VC 40R 100V 40W VOLUME CONTROL + RELAY...
Page 2 WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! INPUT VOLTAGE OF 70-100V SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual CAUTION! TAKE CARE USING THIS EQUIPMENT! HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!! Before your initial start-up, please make sure that there is no damage caused during...
Page 3 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never remove warning or informative labels from the equipment. • Do not open the equipment and do not modify the equipment. •...
Page 4 • 70V/100V inputs (from mixer amplifier) • 70V/100V outputs (to speakers) • Suitable for, schools, industrial and commercial applications where background music, announcements and paging is required Specifications VC 20 VC 40 VC 60 VC 20R VC 40R VC 60R...
Page 5 Identification: 1. 100V transformer 2. Screw mounting holes - Use these to attached the controller to the controller wall back box. 3. +ve 100V line input - Use this input to connect the speaker cable from the amplifier. 4. Input ground 5.
Page 6 EMERGENCY PANEL (VC 20R, 40R 60R ONLY) 24V DC INPUT (Optional) MAINS MIC 1 CD PLAYER AM/FM TUNER...
Page 7 CAUTION - DANGER TO LIFE SWITCH OFF AMPLIFIER AND DISCONNECT THE SPEAKER BEFORE STARTING MAINTENANCE Cleaning and Maintenance We recommend a frequent cleaning of the product. Please use a soft lint free and moistened cloth. Never use alcohol or solvents. There are no serviceable parts inside the product except for the fuse.
