NOA X8 User Manual

Retractable headset
Hide thumbs
Table of Contents

Advertisement

Quick Links

NOA X8
Retractable Headset
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X8 and is the answer not in the manual?

Questions and answers

Summary of Contents for NOA X8

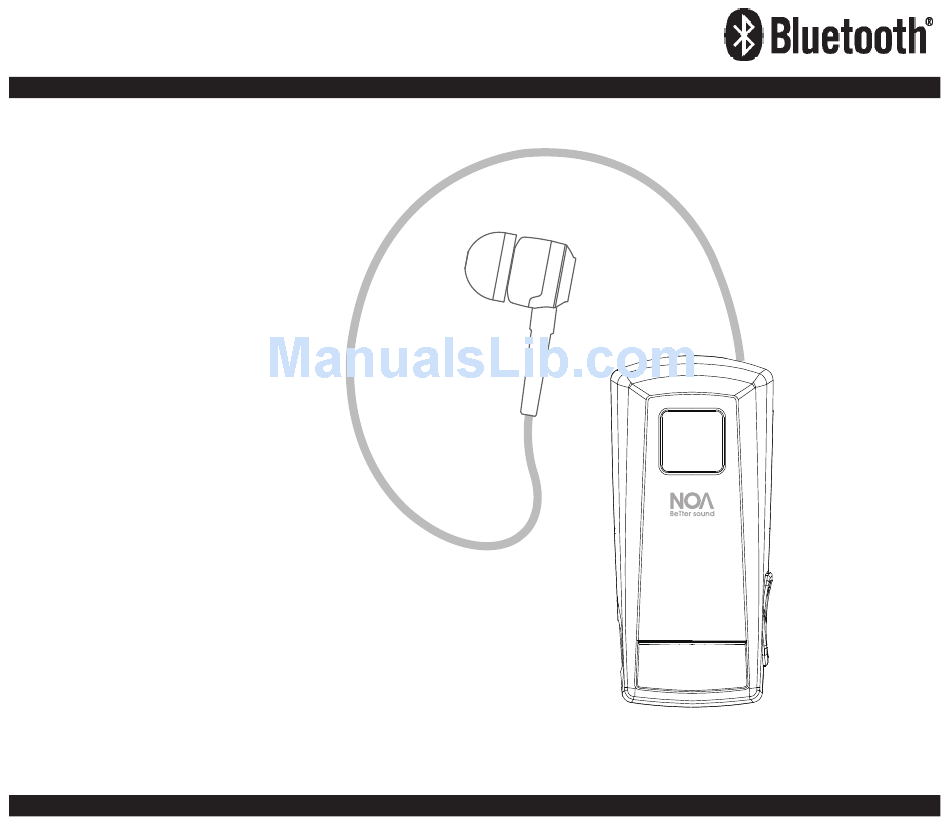

  • Page 1 NOA X8 Retractable Headset User Manual...

  • Page 2: Table Of Contents

    Contents .... 3 Components .... 3 NOA X8 Overview .... 4 Retractable Mechanism .... 5 Incoming Call Alert and Anti-Lost Function .... 6 How to Wear Your Headset .... 7-9 Charging Your Headset .... 10 Getting Started .... 11 Pairing Your Headset with a Bluetooth ®...

  • Page 3: Components

    Bluetooth v2.1+EDR ® Bluetooth Headset and Handsfree ® Operating Distance: 10 meters Operating Temperature: 0-50 degree celsius Charging Time: Around 1.5 - 2 hours Talk Time*: Up to 7 hours Standby Time*: Up to 240 hours Battery Type and Capacity: Rechargeable Li-Polymer 100mAh Dimension: 55(L) x 25.5(W) x 14.9(H) mm...

  • Page 4: Noa X8 Overview

    NOA X8 Overview 1. Rewind Button 2. Status Indicator 3. Multi-function Button (MFB) 4. Volume Button 5. Microphone 6. Speaker 7. Clip 8. Micro USB Charging Socket 9. Neck Strap hole...

  • Page 5: Retractable Mechanism

    Retractable Mechanism The earpiece cord can be extended by gently pulling on the cord. The cord can be retracted (shortened) by pressing the Rewind Button. PULL PRESS...

  • Page 6: Incoming Call Alert And Anti-Lost Function

    Incoming Call Alert and Anti-Lost Function NOA X8 has a built-in vibrator , which supports A. Incoming Call Alert B. Anti-Lost Function Headset will keep vibrate for every Headset will vibrate for every 2.5 seconds when you have an 5 seconds, reminds you that your...

  • Page 7: How To Wear Your Headset

    How to Wear Your Headset NOA X8 is designed, A. to clip onto your clothing, or...
  • Page 8 How to Wear Your Headset (cont’d) B. fasten by a neck strap to wear comfortably and securely around your neck Step 1. Loop the thin end of the neck strap through the slot on the Headset. Step 2. Loop the thicker side of the neck strap through the loop created by the thin wire and pull until snug.
  • Page 9 How to Wear Your Headset (cont’d) To release the strap, hold the strap and pull outwardly. (See the picture on left) • Use the provided neck strap only. • It may be necessort to bring the microphone closer to your mouth for lowering background noise.

  • Page 10: Charging Your Headset

    Charging Your Headset Before using your NOA X8 (”Headset”) for the first time, please insert the charger into the power source and connect the other end to micro USB charging socket of headset to charge the battery fully. Status Status Indicator Audio (Earpiece) 1.

  • Page 11: Getting Started

    3. Ensure the headset is OFF. 4. To activate the headset’s pairing mode, press and hold the MFB until the 5. Search the headset, select “NOA X8” and enter the passcode “0000”. If your mobile phone supports “Simple Pairing” function, no code is required.

  • Page 12: Pairing Your Headset With Two Bluetooth ® Wireless Technology Enabled Phones (Multi-Point)

    ® phones (Multi-point) NOA X8 supports a Multi-point function to allow simultaneous pairing of the headset with two mobile phones. with a Bluetooth mobile phone”). matically. 3. Pair the headset with the second phone (follow the step in “Pairing Your Headset with a Bluetooth mobile phone”).

  • Page 13: Reconnecting Your Headset

    Reconnecting Your Headset 1. If the headset has been powered off, it will reconnect to the phone auto- matically after switching on the headset, if not, press MFB once to manually reconnect. 2. If the phone has been powered off and headset is then disconnected, you need to press MFB once to reconnect when phone turns on again.

  • Page 14: Using Your Headset

    Using Your Headset Function Button Vibration Audio Status (Headset) (Speaker) Indicator Incoming Call Vibrate for Ringtone Blue light every 2.5 seconds taneously as the beep sound Answer a Call Press MFB once to ‘Di Do’ tone During the accept. once call, blue light 6 seconds Answer a...
  • Page 15 Using Your Headset (cont’d) Function Button Vibration Audio Status (Headset) (Speaker) Indicator Voice Dialing Press the MFB once ‘Di Do’ tone once • After you hear a short beep, say the voice tag, and you must have the voice tag record on your mobile phone. •...
  • Page 16 Using Your Headset (cont’d) Function Button Vibration Audio Status (Headset) (Speaker) Indicator Call Transfer During a ‘Do” tone once Blue light (from headset to conversation, (both from mobile phone / or press the MFB headset to mobile when a call vice versa) twice phone / or vice...
  • Page 17 10 seconds NOA X8 is designed to work with the mobile phones with Bluetooth • Hands-free not guaranteed for some phones in different operating system. In order to have a better and clear reception, there should have no obstacle to the headset while talking.

  • Page 18: Troubleshooting

    Troubleshooting I cannot pair with my mobile phone - Ensure your headset is power on and fully charged - Ensure the Bluetooth setting is activated on your phone - Ensure the headset is at pairing mode (flashes blue and red alternately) - Ensure the headset is not out of range of your phone If the above steps do not solve the problem, please turn off the headset and recharge the headset, and then try again.
  • Page 19 Troubleshooting (cont’d) My phone cannot be auto-reconnected with the headset - Manually connect the headset from your mobile phone - Turn off the mobile then turn on again - Turn off the headset then turn on again If the above steps do not solve the problem, turn off the headset and reset it, pairing the headset again.

  • Page 20: Safety Precautions

    Safety Precautions 1. Unintentional depression of the retractable button could result in an injury from the force of the earpiece cord retraction. 2. Be careful when retracting the length of the earphone. Keep a safe distance between your face and the headset. 3.

  • Page 21: Maintenance

    Maintenance 1. Do not yank or forcibly pull the earphone cord. 2. Consider turning your headset off before placing it in your pocket or bag. If the MFB is accidentally pushed, your mobile phone may place an unin- tended call. 3.

  • Page 22: Declaration Of Conformity

    Declaration of Conformity We, iXchange, declare that the following product: Model No.: NOA X8 is in conformity with the following essential requirements of Council Directive 1999/5/EC (referred to as R&TTE Directive): Article 3.1a, 3.1b and 3.2 and the product is manufactured in accordance with Annea II of the directive.
  • Page 23 Made in China...
