PCI Express Hybrid SBTVD X8507
V11.44.0309.00
PCI Express SBTVD Hybrid X8507
Quick Installation Manual
Introduction
Defining the PCI Express SBTVD Hybrid X8507

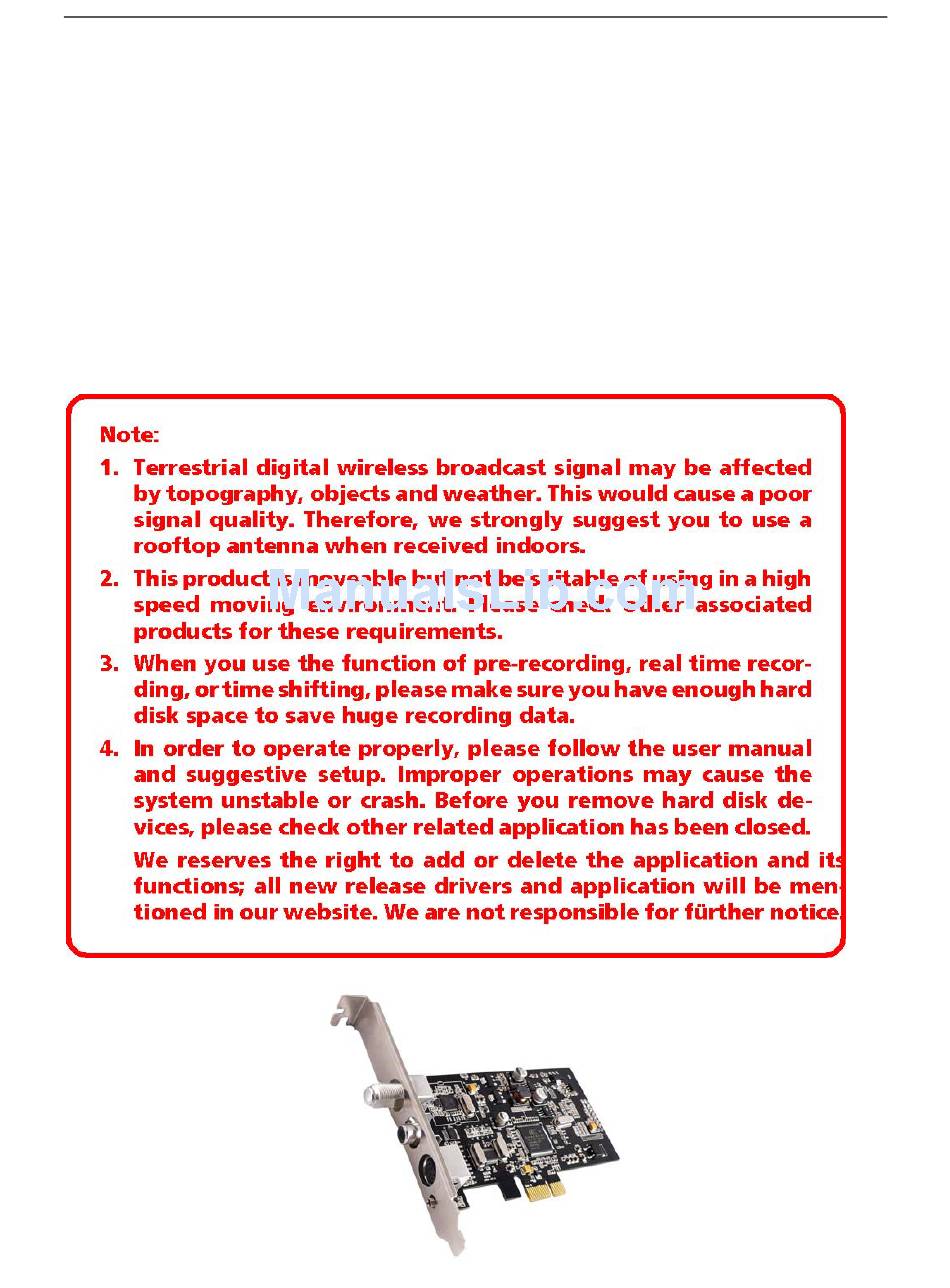

Important Notice: "All channels are subject to coverage and may be changed from time to
time. Reception may depend on the type and condition of your existing aerial. Aerial
upgrade may be required. Please confirm coverage in your area." We strongly recommend
that you install an outdoors antenna when you use the DTV receiver indoors.
Defining X8507
1
Advertisement
Table of Contents
Related Manuals for Geniatech PCI Express SBTVD Hybrid X8507
Summary of Contents for Geniatech PCI Express SBTVD Hybrid X8507
- Page 1 Quick Installation Manual Introduction Defining the PCI Express SBTVD Hybrid X8507 Important Notice: “All channels are subject to coverage and may be changed from time to time. Reception may depend on the type and condition of your existing aerial. Aerial upgrade may be required.
-
Page 2: System Requirements
graphic card connector). If you use a multiple number of PCI Express cards, you have to calculate with a current of 4A on the 5V rail for each of the used PCI Express SBTVD Hybrid X8507 PCI Express card. -
Page 3: Package Contents
PCI Express Hybrid SBTVD X8507 V11.44.0309.00 Recommended system requirements for HDTV reception SBTVD Hybrid X8507 I BM compatible PC with Intel Pentium 4 or AMD Athlon XP CPU with 2400MHz or above 3 D AGP or PCI express graphic card recommended (with MPEG2 hardware acceleration, hardware overlay support and up to date drivers) ... -
Page 4: Installing The Driver And Software
PCI Express Hybrid SBTVD X8507 V11.44.0309.00 Installing the driver and software Summary In this chapter the installation of SBTVD Hybrid X8507 PCI EXPRESS is exemplary described for the operating system Windows XP Professional Service Pack 2. The installation for the other operating systems as Windows 2000 is similar. - Page 5 PCI Express Hybrid SBTVD X8507 V11.44.0309.00 Step3: Run “Software Install” Computer will now automatically show an install page, click “Next” Step4: OS will promote to install devices，Click “Continue Anyway” Step5: Click “Finish” to completely install the Driver Software Installing TotalMedia Step6: Installation of Total Media, Choose setup language...
- Page 6 PCI Express Hybrid SBTVD X8507 V11.44.0309.00 Step7: Click “Next” to continue installation Step8: Click “Yes” and then it will install “Arcsoft TotalMedia” Step9: If you want to change the destination folder, please click “Browse” and click “next” (Recommended is better) Step10: Please click “Next”...
- Page 7 PCI Express Hybrid SBTVD X8507 V11.44.0309.00 Step18: When all finished, please check on Control panel, select “System”—“System properties”—“Device Manager”, you can see one device installed. Arcsoft Total Media Users How to use TotalMedia, you can get online help. Connection Summary...
- Page 8 PCI Express Hybrid SBTVD X8507 V11.44.0309.00 X8507 Connection (Only SBTVD) 1. Connecting SBTVD Hybrid X8507 TV Receiver to PCI Express interface on your PC 2. Connecting Analog TV Cable (for analog TV) or digital antenna (for digital TV) to SBTVD Hybrid X8507 TV Receiver.
- Page 9 PCI Express Hybrid SBTVD X8507 V11.44.0309.00 3. When you want to switch analog, please switch to analog cable (SBTVD antenna can’t receive analog TV channel) 4. Input & Output Connections...
-
Page 10: Troubleshooting
PCI Express Hybrid SBTVD X8507 V11.44.0309.00 Remote Control Button List TV/AV: Switch between S-Video, Composite, and TV TotalMedia TotalMedia: Open/Close Software 0 - 9: Channel Number Keys ESC: Return MUTE: On/Off volume mute Down Left Right CH+/CH-: Channel Up/Channel Down 9、... - Page 11 PCI Express Hybrid SBTVD X8507 V11.44.0309.00 4. Please check if you select right country in the Total Media software scaning function page. 5. Please try to use an outdoor antenna and scan once more. 2. I do find some channels, but this time I get less channels than last time 1.
