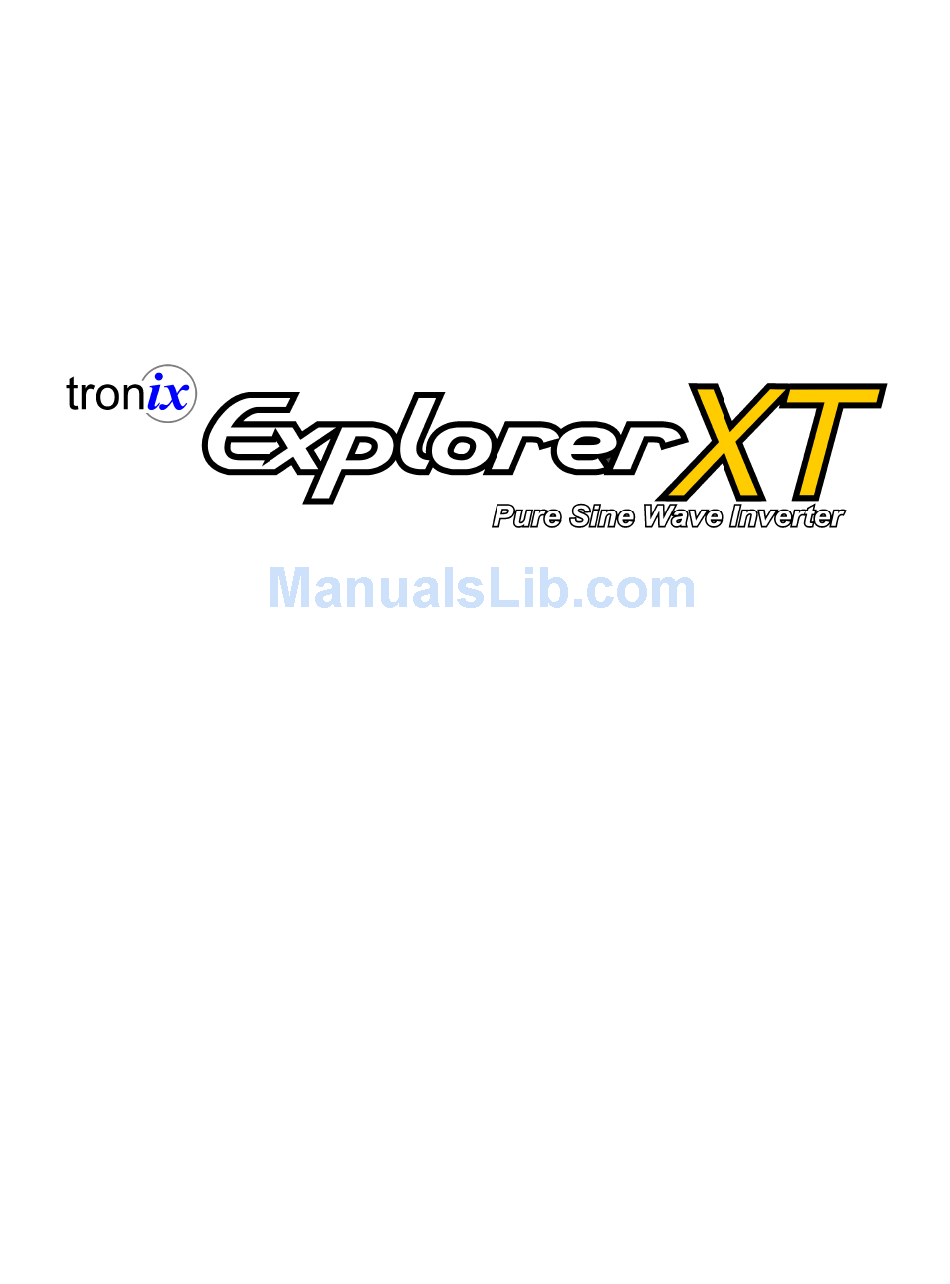

- Page 1 USER’S GUIDE (For Tronix Explorer XT / Tronix Explorer XT SE)
- Page 2 TRONIX EXPLORER XT Congratulations on your purchase of the Tronix Explorer XT! The technically superior Tronix Explorer XT, rated at 350 Watts continuous and at 1200-Watts peak power, is designed to provide power to most flash and power pack units. It makes your studio lights work on location or when power is not available - with faster recycling time, more power and better performance.
-
Page 3: Table Of Contents
Contents Important Safety Instructions General Safety Electrical Safety Battery Safety Getting Started Shipping Materials Installation Operation Charging Maintenance Battery Replacement Troubleshooting Frequently Asked Questions Technical Specifications Service and Warranty Contact Information... -
Page 4: Important Safety Instructions
Do NOT expose the Tronix Explorer XT to dust, moisture, liquids, rain or snow. Do NOT block ventilation openings of the Tronix Explorer XT; Overheating may occur. Do NOT place the Tronix Explorer XT in a compartment with zero clearance. Not recommended attachments, when used with Tronix Explorer XT, may result in risk of fire, electrical hazard or injury. -
Page 5: Battery Safety
Battery Safety Do NOT make any changes or modifications to Tronix Explorer XT unless otherwise specified. Except the batteries, Tronix Explorer XT has no serviceable parts. CAUTION: Do NOT place the batteries near open flames or heat. The batteries may explode. -
Page 6: Getting Started
Installation 1. Make sure that the Tronix Explorer XT is switched OFF. 2. Always place the Tronix Explorer XT in an environment there is no excess of heat, dust and moisture. 3. Plug the power cord to a 100V to 240V AC mains supply. On the front... - Page 7 NOTE: The connections between the flash units and the Tronix Explorer XT must be in close proximity and must be easily accessed. 4. Turn on Tronix Explorer XT by switching the power switch to “|” position. The Battery Level Indicators...
-
Page 8: Charging
Charging LED indicator stopped blinking (LED stays ON), the battery is fully charged. 14V DC Outlet Plug the Tronix Explorer XT to a 14V DC outlet. A car cigarette lighter socket would be an example. Make sure the appropriate adaptor is used. -
Page 9: Battery Replacement
(See separate document for complete instructions on battery replacement) 1. Make sure that Tronix Explorer XT is turned OFF. 2. Remove the screws of the cover located at the sides and top portion of the unit. -
Page 10: Troubleshooting
Dispose replaced batteries properly. Deliver the battery to its manufacturer for recycling. Troubleshooting Refer to the table below to address minor problems regarding installation and operation of Tronix Explorer XT. For problems that cannot be solved using the table, contact Innovatronix Customer Service (see Contact Information). Problem... -
Page 11: Frequently Asked Questions
For digital flash units, this will probably cause a reset of its settings to power up stage. Though this case is not damaging to the flash or Tronix Explorer XT, the flash will just not work properly... - Page 12 What are the things to watch out when using Explorer XT? Just like any portable power source from batteries, the recycling time of Tronix Explorer XT for flash units and power packs can never be faster than the recycling time when a studio light or power pack is plugged directly from a convenience outlet or power line.
- Page 13 30 days and will be replaced as soon as possible or in about 10-15 days. All costs are charged to Innovatronix Inc. It also carries a 30-day satisfaction guarantee. This program applies only to units directly purchased from Innovatronix.
-
Page 14: Technical Specifications
Technical Specifications Feature Specification Available 115V/60Hz 230V/50Hz 230V/60Hz Models Output Power 440VA 350W max. Capacity Voltage 115V 230V Frequency 60Hz 50Hz 60Hz Current Waveform Sine wave Socket Universal (x2) Input AC Input Voltage 100-240V Frequency 50/60Hz Current 280-130mA Connector IEC C14 Auxiliary Battery Voltage 24-28V... -
Page 15: Service And Warranty
Service and Warranty The Tronix Explorer XT is covered by a one-year warranty starting from the date of purchase. From that date, the product should be free of any defect in material and workmanship and it will function in accordance to its stated performance. -
Page 16: Contact Information
Innovatronix Inc. The information contained herein is designed only for the use with Tronix Explorer XT. Innovatronix is not responsible for any use of this information as applied to other portable power supplies and other related products.
