invotel SX9800 User Manual

Problems
• Unplug the power connector wait 30 seconds then plug it back
1.
Player not working or
in. make sure the connector is plugged in securely. Be sure to
stopped working
observe the LED lights are dancing with volume up.
• Be sure MX9008/MX9017 card is inserted all the way into it's slot
securely
2. No audio on hold
• Check audio cord; try re-inserting it again, adjust the volume on
player clockwise to hear it. Try testing player by SPEAKER set to
ON. Try MODE A setting.
3. Audio quality is poor
• Verify that the audio cord is plugged in securely Make sure the
audio volume is not too loud, adjust the volume control counter
clock wise to correct the problem.
• Set Volume to Medium. Adjust the TONE. Try the other RCA jack
• Be sure the recording volume is correct adjust your audio source
volume.
4.
Cannot hear the • Set SPEAKER to ON, MODE A, VOLUME max, confirm you
monitor speaker can hear it. Be sure to re-adjust the VOLUME back to correct
level for on hold-

Warranty

This product is warranted against defects for a period of Three (3) years from the date of
original invoice. We will repair/replace the product with no charge for parts or labor within this
time. To obtain warranty service the product needs to be returned freight prepaid by the
customer with a copy of original invoice. This warranty does not apply if in the sole opinion of
Innovative Telecommunication Technology, the product has been tampered with or damaged by
lightning or any other acts of nature, misuse, neglect or unauthorized service.
EXCEPT AS SPECIFICALLY PROVIDED IN THIS AGREEMENT, THERE ARE NO OTHER
WARRANTIES, EXPRESSED OR OTHERWISE,INCLUDING, BUT NOT LIMITED TO ANY
IMPLIED WARRANTIES OR MERCHANTIBILITES OR FITNESS FOR A SPECIAL PURPOSE.
IN NO EVENT SHALL INNOVATIVE TELECOMMUNICATION TECHNOLOGY (INVOTEL) BE
LIABLE FOR LOSS OF PROFITS OR BENEFITS , INDIRECT, SPECIAL, CONSEQUENTIAL
OR OTHERWISE ARRISING FROM ANY BREACH OF THIS WARRANTY OR OTHERWISE.
®
99 Washington Street
Melrose, MA 02176
Fax 781-665-0780
TestEquipmentDepot.com
Possible Cause / Solution
User Manual
Invotel SX9800
Digital Audio System Player/Recorder

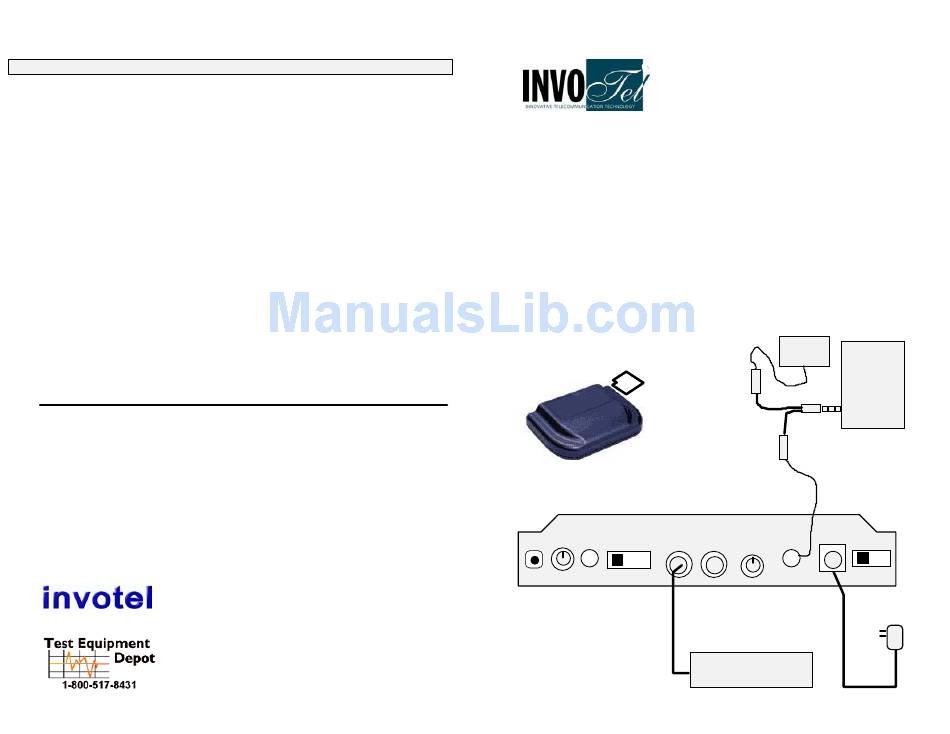

Insert the MX9008 or MX9017 Flash card into the slot as shown
•
insert the card all the way into the blue connector)
• If you need to record into SX9800 connect your "audio source" to the
"Audio IN" jack of the SX9800 using the provided 3.5mm to 3.5mm audio
cord & the "Y" patch cable.
Plug one end of the RCA audio cable into the 8 Ω Red RCA connector
•
and the other end into your PBX phone system "MOH" RCA connector.
(If you have regular Non-PBX telephones, plug the other end into the Music-On-Hold
adapter "Audio In" RCA connector instead)
Set the Volume to mid level on the player as shown.
•
Set the MODE switch to A or B
•
Plug the included AC adapter. (110V AC to 5-12V)
•
Flash Card
SX9800
MODE
TONE
MIC
A B
8Ω
IN
NXT/REC
N
DIGITAL
FLASH MEMORY
Technology
Rev 01
(be sure to
PC
PC
Speakers
Speaker
OUT
"Y" Patch cable
3.5mm to 3.5mm audio cord
Volume
9VAC
AUDIO
600Ω OFF ON
SPEAKER
IN
Max
110 V
TELEPHONE SYSTEM
MOH Port
