Summary of Contents for SeismicAudio SA-15T

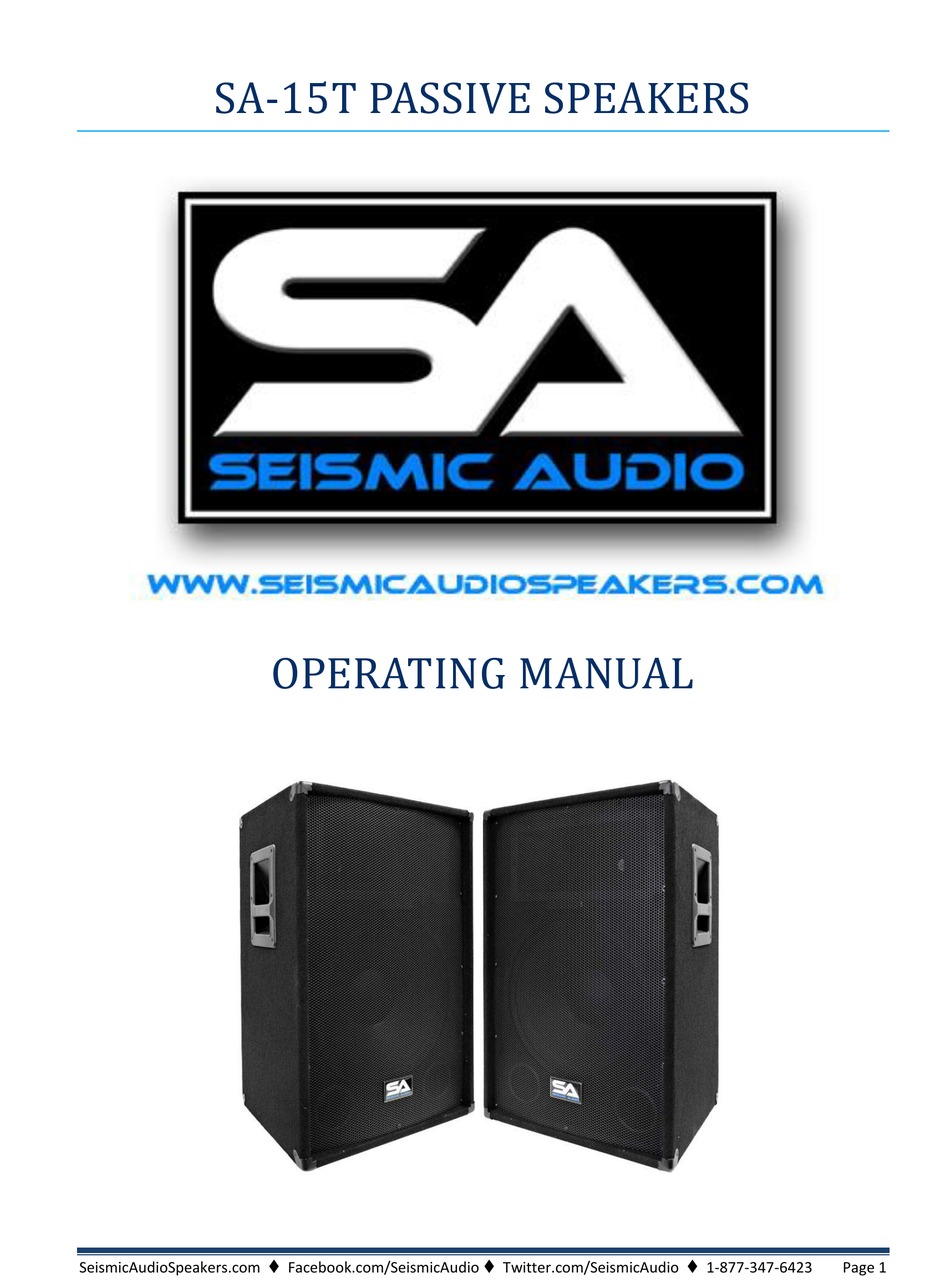

- Page 1 SA-15T PASSIVE SPEAKERS OPERATING MANUAL SeismicAudioSpeakers.com Facebook.com/SeismicAudio Twitter.com/SeismicAudio 1-877-347-6423 Page 1...
-
Page 2: Safety Instructions
This symbol, wherever it appears, alerts you electrical shock, do not expose this to important operating and maintenance instructions in the accompanying literature. equipment to rain or moisture. Read the manual. SeismicAudioSpeakers.com Facebook.com/SeismicAudio Twitter.com/SeismicAudio 1-877-347-6423 Page 2... - Page 3 Black Carpet with Black Metal Corners ENCLOSURE 5/8” Plywood Front Panel POLE MOUNT HEIGHT 29" 19" WIDTH 15" DEPTH WEIGHT 50 lbs. per Cabinet One Year Warranty WARRANTY SPECIAL FEATURES Can be Daisy Chained SeismicAudioSpeakers.com Facebook.com/SeismicAudio Twitter.com/SeismicAudio 1-877-347-6423 Page 3...
- Page 4 20K and 100 watts RMS. These will fit all horns with a 1 3/8" thread. Crossover - Model: SACN-153 Replacement Crossover for SA-15T-PW CBulb - Model: CBulb Replacement Fuse for SA-15T Crossover / SACN-153 Replacement Speaker - Model: Quake15 Replacement Speaker for SA-15T Speaker Stands - Model: SpeakerStands...

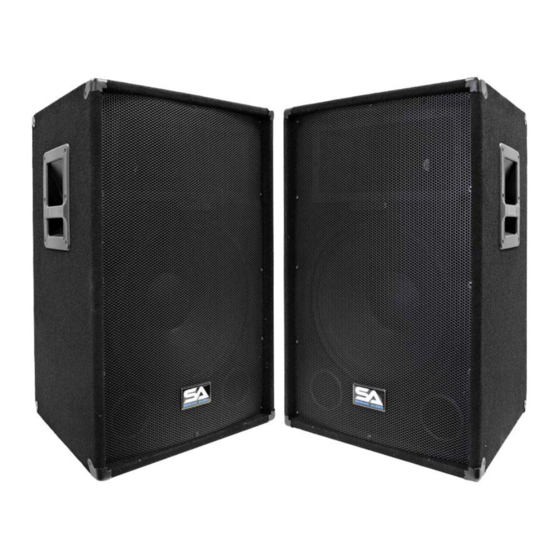

- Page 5 100W Titanium Horn Recessed Handles 15” Woofer 350W RMS Full Metal Grill Dual Ports Rubber Feet Metal Top Hat for Pole Mounting 1 3/8” Speakon Input / Output ¼” Input / Output SeismicAudioSpeakers.com Facebook.com/SeismicAudio Twitter.com/SeismicAudio 1-877-347-6423 Page 5...
- Page 6 MBG-4000 Power Amp This example shows how to connect two SA-15T speakers to a standard Mixer and Amplifier. This application requires (2) XLR Male to Female Cables and (2) Speakon to Speakon cables. Seismic Audio offers these cables. The model numbers are: SAXLX- 3 and TW12S25.
- Page 7 Guitar Guitar This example shows how to connect two SA-15T speakers to a Powered Mixer. By choosing this method, it will eliminate the need for an external amplifier and mixer. Simply input (1) Speakon cable into one of the available Speakon Outputs on the power amplifier by inserting and twisting it “clockwise”...
-
Page 8: Frequently Asked Questions
How do I daisy chain the speakers? Answer: You can daisy chain other SA-15T speakers by using one of the available ¼” or Speakon output jacks on the primary speaker. (note: daisy chaining causes impedance to change. Make sure your amplifier is stable based on the amount of speakers you have in a daisy chain.) ... - Page 9 Features and specifications are subject to change without notice. Seismic Audio Speakers, LLC 4440 Malone Road Memphis, TN 38118 901-363-6030 SeismicAudioSpeakers.com Facebook.com/SeismicAudio Twitter.com/SeismicAudio 1-877-347-6423 Page 9...
