GPS Safety Mobile Phone Manual
Welcome to use our mobile phone!
Thank you for choosing our GPS safety monitoring mobile phone. This mobile phone represents the
perfect combination of GSM and GPS technologies. It is characterized by streamline fashionable
profile design, simplicity and elegance; it fully shows the fashionable personality. With large-capacity
phonebook, SMS, alarm clock, call center, phone settings, FM radio, GPS, hang-up state emergency
alarm, etc, it can help you enjoy a rich and colorful life.
●
Before use, be sure to read this manual carefully.
1
Advertisement
Table of Contents
Summary of Contents for Heacent HC601
- Page 1 GPS Safety Mobile Phone Manual Welcome to use our mobile phone! Thank you for choosing our GPS safety monitoring mobile phone. This mobile phone represents the perfect combination of GSM and GPS technologies. It is characterized by streamline fashionable profile design, simplicity and elegance; it fully shows the fashionable personality. With large-capacity phonebook, SMS, alarm clock, call center, phone settings, FM radio, GPS, hang-up state emergency alarm, etc, it can help you enjoy a rich and colorful life.
-
Page 2: Table Of Contents
● The new battery cannot have optimal performance until it has 2-3 complete charges and discharges (at least12hs). It is recommended to charge the battery until the battery is empty and the mobile phone switches off automatically The content of this manual may be different from the real object, so the latter shall prevail. Should any update on this phone and its accessories, we will not make further notice. -
Page 3: Precautions And Notices
7.1 Introduction to GPS-related Functions ................17 7.2 Commands Corresponding to and Operation Method of Basic Functions ...... 17 7.2.1 Location Inquiry ......................17 (1) SMS Inquiry ........................17 (2) Platform Inquiry ......................17 7.2.2 Setup of Center Number ....................17 7.2.3 Alarm number setting function .................. -
Page 4: Notices On Using The Phone
1.2 Notices on using the phone Do not use the phone while driving a car in order to avoid traffic accidents. When you must use the phone during driving, be sure to stop the car in a safe place. Please switch off your mobile when it is not permitted to use, such as in plane, hospital, etc. -
Page 5: Notices On Using The Charger
Please do not disassemble or refit the battery, otherwise it might lead to the leakage of battery liquid, overheating, cracking, and even fire. If the liquid of the battery spills onto your skin or clothes, it might burn your skin. Please flush the liquid with water immediately. -
Page 6: Related Requirements
If there is water or other liquid on the charger, please get the charger out of the AC outlet right away, to prevent overheating, fire, electric shock, and charger malfunction. Always use the original charger because the use of other chargers may damage the phone. - Page 7 Charging requirements Please do not charge your phone at such places: the sunshine can reach directly; the outer temperature is below 5℃ or higher than 40 ; Humid and dusty places or vibrating places ℃ (might cause malfunction); near television, radio, or other electrical devices (might affect the image and sound of these devices).
-
Page 8: Use Notices
2. Use Notices 2.1. Check the Phone and Accessories Unpack the mobile phone package and check if the phone and its accessories are complete. In case of any incompletion, please consult the local distributor. • 1X mobile phone; • 1 x battery; •... -

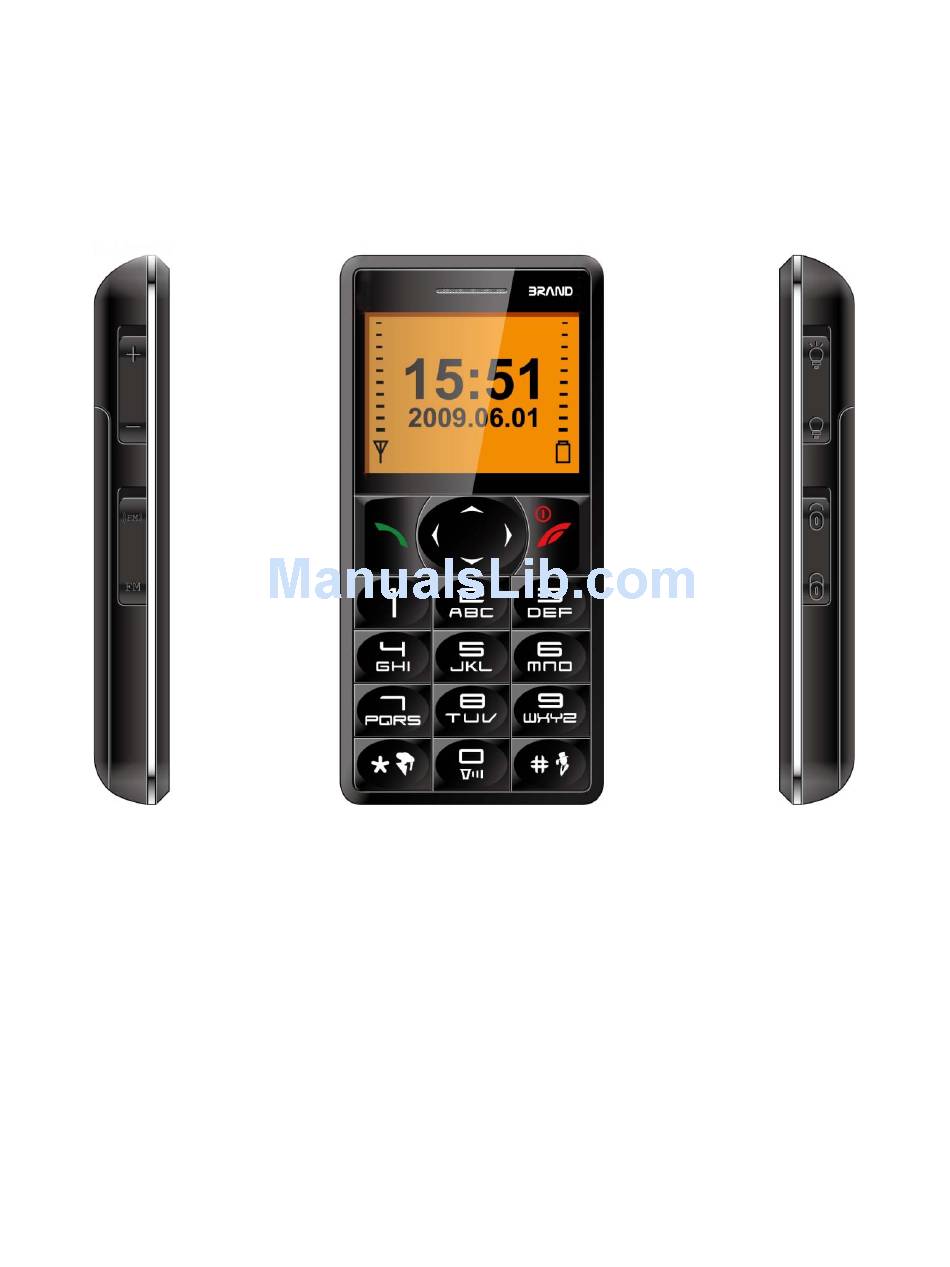

Page 9: Appearance
2.3. Appearance Name Functional Description FM antenna When listening to FM radio, you need to pull out the FM antenna. Volume key During call, listening to FM radio, etc, to adjust volume, just press this key. FM shortcut key Push the key upward to open FM radio and downward to close Answer and dial key Dial a call or receive a call;... -
Page 10: How To Insert The Sim Card
End key End or refuse a call; In operation, back to the previous level, i.e. Cancel or Back; On the switch-off state, press this key long to switch on the phone; On the standby interface, press this key long to switch off the phone;... - Page 11 When the battery icon of the phone stops flickering, it will indicate that the charging is over and the screen will display “Charged”. Charge with the phone on: 1) Insert the charging plug of the charger into the charging port of the phone and the other end of the charger into the 220V power socket.
-
Page 12: Basic Operation
3. Basic Operation 3.1 Switch-on/off Switch-on Press the [Switch-on Key] to switch on the phone and enter the standby interface. Tips: 1. If the SIM protection is activated, you need to input SIM password, press the [Left Function Key] to confirm and enter the standby interface. -
Page 13: Functional Description
[Back Key]: Exits from the current input state. [Up Direction Key], [Down Direction Key]: Moves the cursor up and down. [* Key]: Inputs punctuations. [# Key: Switches input modes. [0 Key]~[9 Key]: Input digits. 4. Functional Description 4.1. Phonebook The phonebook is used to store your phone numbers and it includes phone phonebook and SIM phonebook. -
Page 14: Create Sms
symbols. 4.2.1 Create SMS 1. Create: Via Main Menu→ SMS →Create, enter the SMS editing interface (for SMS editing, refer to the input mode) 2. Choose Number: After the content of the SMS is input completely, press the [Left Function Key] to select “Send”... -
Page 15: Phone Maintenance
Via the alarm clock settings on the tool bar of the main menu, display the list of alarm clocks, choose one alarm clock, press the [Enter Key] to enter alarm clock settings. 5. Phone Maintenance Wipe off the common dirt with dry and soft cloth. If too much dirt, twist the soft towel with neutral detergent dry and gently wipe off dirt and then wipe the phone with dry soft cloth. -
Page 16: Troubleshooting
6. Troubleshooting During operation, when feeling abnormal, please restore factory settings and refer to the following solutions. If the problem cannot be solved, please contact the distributor or the service provider. Failures Possible Causes Solutions The battery is used up. Charge the battery. -
Page 17: About Gps
7. About GPS 7.1 Introduction to GPS-related Functions GPS individual positioning High-sensitivity, new workmanship and the most advanced GPS chip; Can work effectively in limited space such as the remote and narrow places in a city; Low energy consumption; Fast signal capturing; Supports single positioning and continuous tracking;... -
Page 18: Alarm Number Setting Function
mobile phone sending the SMS will receive the “config OK” response message from the terminal. Command format: #710# center number # user password ## For example: #710#134xxxxxxxx#0000## Note: All alarming information thereafter including SOS, low power, electronic fence, etc will be returned to such number. -
Page 19: Function Of Changing Password
7.2.6 Function of Changing Password Send the SMS “#770# User new password # User old password ##” by mobile phone to the terminal number, after successful sending, the mobile phone with such setup will receive one piece of config ok response information。... -
Page 20: Server Center Address Command
command is set successfully, the terminal will read the data of the module fence working status and return message to the sending mobile phone, or PASSWORD ER if the password is wrong. For example: #752#0000## Return: #open:1#lat:11456.209400#lng:2233.470100#distance:500#time:5#status:2 Where, open: 1 indicates fence open; Open: 0 indicates fence closed; lat:11456.209400, latitude;... -
Page 21: After-Sale Service
8. After-sale Service For more information about after-sale service, please refer to the attached After-sale Service Manual. Notices: This device is of non-waterproof design. This device must work with the cooperation of GSM/GPRS network. Make sure that the SIM card has sufficient balance in order to avoid inconvenience in use. This device will not be able to work in case of power-off and out of the service area, even if you are a registered user.
