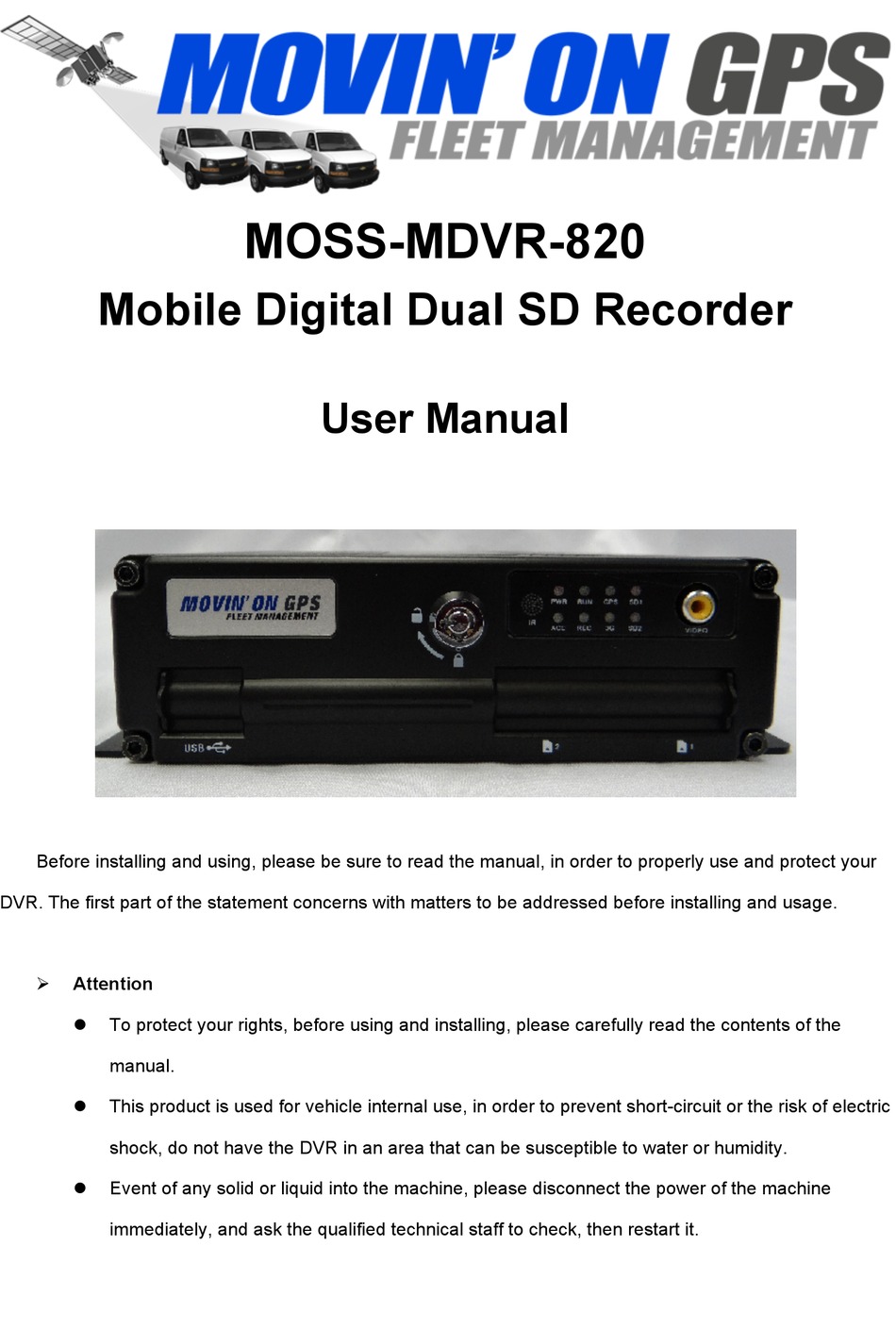

Movin' On GPS MOSS-MDVR-820 User Manual

Mobile digital dual sd recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Mobile Digital Dual SD Recorder
Before installing and using, please be sure to read the manual, in order to properly use and protect your
DVR. The first part of the statement concerns with matters to be addressed before installing and usage.
Ø
Attention
l
To protect your rights, before using and installing, please carefully read the contents of the
manual.
l
This product is used for vehicle internal use, in order to prevent short-circuit or the risk of electric
shock, do not have the DVR in an area that can be susceptible to water or humidity.
l
Event of any solid or liquid into the machine, please disconnect the power of the machine
immediately, and ask the qualified technical staff to check, then restart it.
MOSS-MDVR-820

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOSS-MDVR-820 and is the answer not in the manual?

Questions and answers

Summary of Contents for Movin' On GPS MOSS-MDVR-820

  • Page 1: User Manual

    MOSS-MDVR-820 Mobile Digital Dual SD Recorder User Manual Before installing and using, please be sure to read the manual, in order to properly use and protect your DVR. The first part of the statement concerns with matters to be addressed before installing and usage.

  • Page 2: Table Of Contents

    Ø Installation Environment l 8-36V DC power supply, please confirm the local power supply before power on. l If the machine were not used for a long time, please completely disconnect the power supply. l Please select the appropriate location for the installation of the machine, where the air can flow freely around the machine to avoid overheating or water flow.

  • Page 3: Product Overview

    Features ..................................5 3.1 Operating system ..............................5 3.2 Compression format .............................. 5 3.3 Monitoring and Recording ............................. 6 3.4 Index and Playback ..............................6 3.5 SD card storage and data backup ........................... 6 3.6 Control ................................... 6 3.7 Others ..................................6 Technical Parameters ..............................

  • Page 4: Audio/Video Recording Mode

    Audio/video recording mode l Compression format: The audio video data are stored through special files, encrypted to prevent data loss under frequent power failure circumstances. l Compression stream: Image quality with 8 levels and adjustable (192kbps-1536kbps/channel). l Storage: Support 2 x 64G SD card, auto overwritten and cycle storage. Image quality when monitoring, recording, playback l...

  • Page 5: Signal Loss Alarming Function

    Signal loss alarming function l When the video signal gets lost, the device will send alarm signal via internet. Responding in less than 5 seconds with log information. NOTE this function will not work when a channel is not in recording status or if a channel is displaying in full screen.

  • Page 6: Networking

    2.14 Networking l Combining the CMS software with built-in 3G module, the car can be monitored remotely. 2.15 Data backup l To backup the SD data into computer via SD card reader; l Downloading the SD data remotely through network. Transfer the SD card data to computer, download and play the media via unique DVR player l...

  • Page 7: Monitoring And Recording

    3.3 Monitoring and Recording l Monitor: 4CH D1 (PAL: 704x576; NTSC: 704x480 ) l Record: PAL 100fps, NTSC 120fps, full real-time 4CH CIF, HD1, D1recording. l Record mode: by alarm, schedule, manual, motion detection. Support 4CH video and 4CH audio meanwhile recording. l...

  • Page 8: Technical Parameters

    4 Technical Parameters Items Device parameters Performance index Name Product Name 4 Channel Mobile DVR (SD Storage) Operation System Linux Operation Interface Graphical Interfaces, Chinese/English optional System File System Proprietary Format System Privileges User Password Video Input 4ch Independent Input: 1.0Vp-p，75Ω.Both B&W and Color Cameras Video Output 1 Channel PAL/NTSC Output, 1.0Vp-p，75Ω，...
  • Page 9 G-Sensor G-Sensor Can Expand Module Inside Canbus Canbus Can Expand Module Inside Power Consumption DC8-36V 5% 8W（without HDD） Others Working Temperature -20℃ ~ +60℃ Clock Built-In Clock, Calendar Product Size 154(L) x 190(W) x 52(H)mm Product Weight 0.9KG(without HDD) Package 1 per box- 10 per carton Packaging Box Size...

  • Page 10: Instruction Of Installation

    5 Instruction of Installation Instruction of External Interface Wiring Remarks: l If the power supply is 12V, then the current of 12V output can be just 1A. So if there are more than 3pcs cameras, we suggest customers to get power for other cameras from the 12V vehicle power directly.

  • Page 11: Instruction Of Sd Card Installation

    5.2 Instruction of SD Card Installation Unlock the main board with key, make sure the “arrowhead” point to the left “turn on” then switch it to the “turn off”. Note: The lock in the main board can also control the power. When the main board is locked, it also means the machine starts.

  • Page 12: Instruction Of Remote Control Operation

    ü WIFI LED: when wifi module is running the LED is on. l Key and Other Descriptions ü IR: infrared receiving window. ü LOCK: while removing the hard drive, use the key to unlock in order to remove the hard drive, unlock after machine’s auto-disconnects the power, the power auto-connect after being locked.
  • Page 13 l ：① Exit when video playback or backup. ② Exit from PTZ mode. l :①Upward for MENU selection. ②”UP” direction for PTZ control mode. l :①Downward for MENU selection. ②”Down” direction for PTZ control mode. l : ①Towards to left for MENU selection or MENU setup. ②”Left” direction for PTZ control mode.

  • Page 14: Menu Setting Instruction

    Menu Setting Instruction: First press" "key, next press" " to enter the default password"6666", then press“ ”to enter the main menu interface; There are "System"、"Disk"、"Record"、"Playback"、"Network" and "Alarm"options, select the option by pressing these buttons" " ,then press " "to enter. Basic Settings: includes options of “system setting”, “PTZ setting”, ”system info”, “vehicle info”.
  • Page 15 l Setup: Set the System time, Car Number, TV system, Language，etc. ü Date format: Offer 3 display methods like “y/m/d, m/d/y, d/m/y” for personal habit. ü Daylight saving time: suitable for according countries or areas. ü Date: Adjust the date of SD recorder ü...
  • Page 16 ü Password: Enter the default password before changing the new password (Note: You have to enter the original password after press "OK", otherwise the DVR will keep staying in the changing password status, and the remote control will not work. ü...
  • Page 17 ü Device encoding: only for this DVR, the code is unique. ü Software version: the version No. of DVR software. ü IMIE: IMIE No. of 3G network or module ü Strength Of 3G signal: strength value:99, unknown: 0-31 ü Strength Of GPS signal: AA-BB(AA: GPS No.;BB: GPS strength. Show signal strength of max.3 ü...
  • Page 18 Car plate number: can be showed by English, Chinese simplified language, Numbers or ü common symbols. Route: the driving route and code ü ü Driver code: set up the driver code information l G-sensor: GSensor-X：0000mg( default value, this value will change accordingly if the X direction ü...
  • Page 19 l LOG information User action log, alarm logging, equipment status log ü n Disk： Check and format ü Disk Name： Display the system recognized SD card name ü Total Size: Display the total size of SD ü Free Size: Display the remaining Capacity of SD ü...
  • Page 20 Record: the video files setting n ü Channel: select the channel setting (the information of each channel could be set independently) ü Resolution： CIF/HD1/D1； The left side is the local storage information, The right side is network transmission information; local “CIF, HD1, D1”is optional, only “CIF” for network transmission ü...
  • Page 21 ü Rec mode： VIDEO ,Audio +Video（A+V）,No record（N） ü File Len： the packaged video files length setting （300/600/900/1200/1500/1800/2100/2400/2700/3000/3300/3600s optional） ü Save： save after finished video parameter setting (have to restart the DVR after setting.) The operating method is similar to the "basic settings" operating n...
  • Page 22 The operating method refers to “local video playback instruction” n Network ： LAN,3G and WIFI l LAN： Net Type： LAN or 3G-WIFI Optional (auto switch 3G and WIFI, when detecting wifi, it will be ü first chosen) ü Auto obtain IP: open this function by setting “ON”, close by setting “OFF” ü...
  • Page 23 l 3G Network Setting Support manually set up via DVR device or through U-disk or USB interface after CMS software configuration. Here is how to set up manually: . ü APM: data access address of local network operator. ü Dialing number: the number to connect the network. ü...
  • Page 24 ü Alarm REC： Alarm-triggered video duration （30-330s optional，30s unit） ü Positioning Interval： GPS Data upload interval, used with other system interface Alarm out： Alarm output time (5s-900s) ü ü Over speed： Set the over speed alarm value ü Motion Detect： Open and close motion detect record and motion detect sensitivity selection such as “off”, “high”, “medium”, “low”.

  • Page 25: Dvr Video Playback Instruction

    DVR Video Playback Instruction Enter the main menu, move to “search/playb ack” option ,press “ ” to enter, next press the key“ ”or“ ”to select the playback date, then press “ ”key to display the video files of the selected date(file named by the record time),same press “ ”or“...

  • Page 26: Ptz Control

    to“backup”option,and press “OK”to backup, “COPY END”display after backup finished,the USB disk could be taken away, then press ” ” to exit if no other operations. n If you need to back up another files, press “ ” to repeat the previous steps to backup。 Take the SD card out from DVR, then connect the SD reader to the PC, you can check the video playback on PC via the installed our company’s local playback analysis software.

  • Page 27: Video Data Volume

    6.7 Video Data Volume The required volumes of video and video-related settings ，please see the following table： VIDEO QUALITY Total Record Frame Data Size Per Hour HIGHEST 100 frame 2700 MB HIGHER 100 frame 2250MB HIGH（default） 100 frame 1800 MB BETTER 100 frame 1350 MB...
