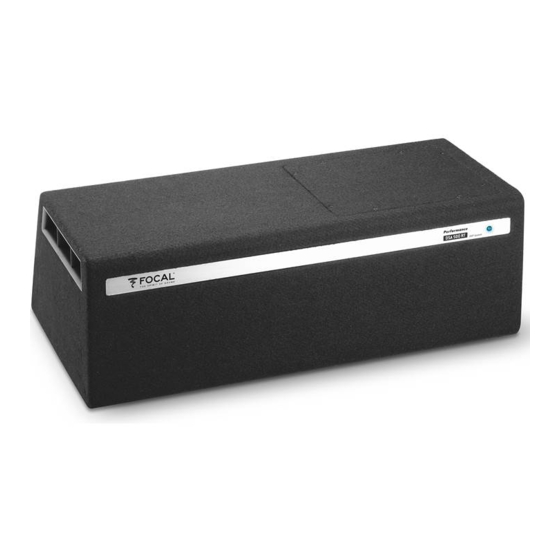

Focal PERFORMANCEEXPERT DSA 500 RT User Manual

Car audio system
Hide thumbs

Advertisement

Quick Links

Download this manual
PERFORMANCE
EXPERT DSA 500 RT
User manual / Manuel d'utilisation
English page 2
Français page 18

Advertisement

loading
Need help?

Need help?

Do you have a question about the PERFORMANCEEXPERT DSA 500 RT and is the answer not in the manual?

Questions and answers

Related Manuals for Focal PERFORMANCEEXPERT DSA 500 RT

Summary of Contents for Focal PERFORMANCEEXPERT DSA 500 RT

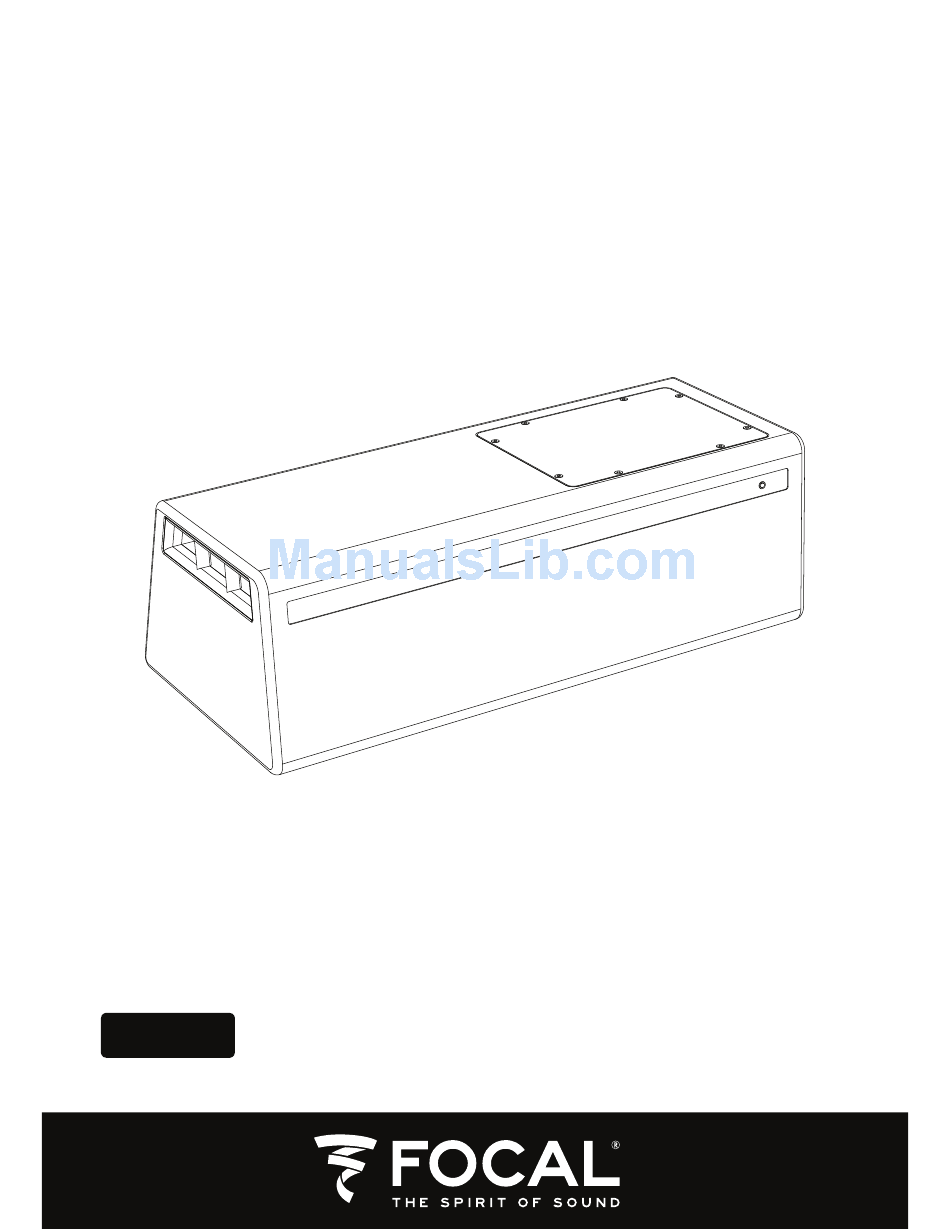

  • Page 1 PERFORMANCE EXPERT DSA 500 RT User manual / Manuel d’utilisation English page 2 Français page 18...
  • Page 2 For the best results, we recommend you have your DSA 500 RT installed by your Focal distributor. To make the best use of all the functionalities of your DSA 500 RT and fully enjoy its performance levels, we recommend that you read the instructions in this booklet carefully and keep it somewhere safe for future reference.
  • Page 3 PERFORMANCE EXPERT DSA 500 RT U s e r m a n u a l Contents of the package: ∙ 1 DSA 500 RT amplified subwoofer ∙ 1 user manual ∙ 2 fixing pads ∙ 2 replacement fuses ∙ 1 REAL TIME remote control cable ∙...
  • Page 4 130 dB may result in irreparable hearing loss. the equipment. If a problem persists, return the product to your Focal distributor for repair. user manual and those contained in the package. The use of other components may result in internal damage to the product or in the product not being correctly installed.
  • Page 5 The installation of this product requires technical knowledge and experience. If you have any doubts about your ability to install the amplifier, get it done by a Focal distributor so that you can take full advantage of all the options available with the DSA 500 RT.
  • Page 6 PERFORMANCE EXPERT DSA 500 RT U s e r m a n u a l prevent any interference with the signal. 5. Use top-quality connectors and crimps to on the DSA 500 RT terminal block to ensure reliable installation and to minimise any losses of signal or power.
  • Page 7 U s e r m a n u a l 3. Wiring Warning If you have any doubts about your ability to install the amplifier and wire the system properly, get it done by a Focal distributor/installer. Beware Avoid routing power supply cables close to low-level input cables and high-level inputs, aerials, sensitive equipment...
  • Page 8 PERFORMANCE EXPERT DSA 500 RT U s e r m a n u a l 3.3. Wiring of the DSA 500 RT power supply Fig.3 3.3.1. cable that it passes opposite the cable already drawn to prevent 3.3.2. be as short as possible and ideally should be no longer than 1 metre, in order to ensure a perfect connection between the amplifier and the car chassis.
  • Page 9 PERFORMANCE EXPERT DSA 500 RT U s e r m a n u a l 3.4. Connection of the input signals on the DSA 500 RT The connection phase for the input/output cables can begin. 3.4.1. Your car radio is equipped with RCA outputs adjusted crimps (fig.5.
  • Page 10 PERFORMANCE EXPERT DSA 500 RT U s e r m a n u a l 3.4.2. Your car radio is only equipped with amplified outputs (speaker outputs) radio. It is therefore not essential to wire the REM input, the DSA 500 RT being equipped with a signal detection system on the high-level inputs.
  • Page 11 PERFORMANCE EXPERT DSA 500 RT U s e r m a n u a l 3.5. Wiring of the RT remote control Fig. 7 tuning and volume control functions for the subwoofer. (fig.8) R = Right / Droite L = Left / Gauche Fig.
  • Page 12 PERFORMANCE EXPERT DSA 500 RT U s e r m a n u a l 3.6. Wiring the power supply the cable in place by screwing it down firmly. Beware The fuse-holder connections must be fully insulated. battery (10-40 cm (fig. 9)). Remove the fuse holder, taking care to remove the fuse. Fix the base for the fuse-holder in place.
  • Page 13 PERFORMANCE EXPERT DSA 500 RT U s e r m a n u a l 3.7. Start-up and checks Fig.10 The connection phase is now complete. You must still verify the correct power supply as well as the correct operation of the complete system (car radio/DSA 500 RT/ loudspeakers).
  • Page 14 PERFORMANCE EXPERT DSA 500 RT U s e r m a n u a l Remote control Fig. 13 mean more power, but more noise. The voltage gain varies between 0.2 V to maximum gains as soon as possible upstream of the stereo system, and the minimum gains downstream.

  • Page 15: Troubleshooting

    Terms and conditions of the warranty If you encounter problems, first contact your Focal distributor. The warranty for France on all Focal materials is for two years. In the event of faulty equipment, it should be sent, at your own expense, in its original packaging to your distributor, who will then analyse the equipment and determine the nature of the problem.

  • Page 16: Technical Specifications

    PERFORMANCE EXPERT DSA 500 RT U s e r m a n u a l 8. Technical specifications Satellite channels RMS power– 14.4V - 4 Ω - THD+N < 1% (CEA 2006) 2 x 65 watts Stability under 2 ohms Maximum power–...

  • Page 17: Garantie France

    Garantie France Pour validation de la garantie Focal, nous renvoyer cette page dans les 10 jours, à l’adresse suivante : Focal-JMlab - BP 374 - 108, rue de l’Avenir - 42353 La Talaudière cedex - FRANCE Il est maintenant possible d’enregistrer son produit en ligne : www.focal.com/garantie Vous : Vos centres d’intérêts :...

  • Page 18: International Guarantee

    International Guarantee For the validation of the Focal guarantee, send back this sheet within 10 days to the following address: Focal-JMlab - BP 374 - 108, rue de l’Avenir - 42353 La Talaudière cedex - FRANCE Now it's possible to register on line : www.focal.com/warranty...
  • Page 19 ® Focal-JMlab...
  • Page 20 EXPERT DSA 500 RT DSA500 RT: Active Digital 2.1 subwoofer Powerfull subwoofer box, “all inside” concept and compact design REAL TIME CONTROL CONTROL WHAT MAKES THE DIFFERENCE TECHNICAL SPECIFICATIONS atts rms Compatible with Windows XP/Vista/7/8 Compatible with Mac OS X from version 10.6 Performance Performance C R E A T E Y O U R S O U N D...

  • Page 21: Specifications

    C R E A T E Y O U R S O U N D ® ® Focal is a trademark of Focal-JMlab -Tel. (33) 04 77 43 57 00 - www.focal.com - Images may not conform exactly to specific product. Photos L’Atelier Sylvain Madelon - SCEB140521/2...
  • Page 22 PERFORMANCE EXPERT FOCAL MANAGER RT User manual / Manuel d’utilisation/ Gebrauchsanleitung / Руководство пользователя Please read before using this software. ИНСТРУКЦИЯ Пожалуйста, прочитайте перед использованием этого программного обеспечения. English page 3 Français page 26 России стр. 49 Deutsch seite 81...
  • Page 23 page 4 page 4 page 5 page 6 page 6 page 13 page 16 page 22 page 25...
  • Page 24 For the best results, we recommend you have your DSA 500 RT installed by your Focal distributor. In order to enjoy the functionalities of your DSA 500 RT and FOCAL MANAGER RT and to get the best results, we recommend that you read the instructions in this booklet carefully, and retain this booklet for future reference. Any problems associated with a failure to observe the rules for operation may result in the warranty becoming invalid.
  • Page 25 FOCAL MANAGER DSA 500 RT EXPERT PERFORMANCE U s e r m a n u a l Communication between your MAC/PC computer and the DSA 500 RT is realised via a standard USB connector. The mini-USB connection is found at the back of the remote control supplied.
  • Page 26 (fig. 1) A dynamic assistance feature is available at any time when you use FOCAL MANAGER RT, and can be activated in the lower area of the interface. Simply click on the question mark (fig. 2) to activate or deactivate this feature.
  • Page 27 FOCAL MANAGER DSA 500 RT EXPERT PERFORMANCE U s e r m a n u a l Once the assistance has been activated, basic explanations of the configurations (based on which zones of the software are explored) and how to use them are proposed. (fig. 3) (fig.
  • Page 28 FOCAL MANAGER DSA 500 RT EXPERT PERFORMANCE U s e r m a n u a l The area in the upper preset banner is used to create, rename and listen to up to 6 presets in parallel. (fig. 6) When you are connected to the DSA 500 RT and you go from one preset to another, all configurations are transferred to the product;...
  • Page 29 FOCAL MANAGER DSA 500 RT EXPERT PERFORMANCE U s e r m a n u a l (fig. 9) Clicking on the equaliser curve loads the parametric equaliser. (fig. 9) For each of the 7 equaliser points available, the data entry box can be used to change the central correction frequency (in Hz).
  • Page 30 FOCAL MANAGER DSA 500 RT EXPERT PERFORMANCE U s e r m a n u a l For each of the 7 equaliser points available, the rotating potentiometer can be used to change the value for correction quality factor. Turn to the right to increase this value and turn to the left to decrease it.
  • Page 31 FOCAL MANAGER DSA 500 RT EXPERT PERFORMANCE U s e r m a n u a l Click on the car area to access the configuration of your speaker filters (Speakers & Crossover). (fig. 14) (fig. 14) The left-hand area contains the parameters for the subwoofer. The horizontal potentiometers are used to change the cutoff for the subsonic crossover and the cutoff for the low-pass crossover.
  • Page 32 FOCAL MANAGER DSA 500 RT EXPERT PERFORMANCE U s e r m a n u a l The right-hand area contains the parameters for the front channels. The horizontal potentiometer is used to adjust the cutoff frequency for the high-pass crossover. The vertical gain is used to adjust the sound volume of the front channels.
  • Page 33 FOCAL MANAGER DSA 500 RT EXPERT PERFORMANCE U s e r m a n u a l The second stage in the configuration sequence is accessible from the car area (fig. 15). This stage is not essential in terms of operating your DSA 500 RT but it does allow the listening parameters for your sound system to be optimised.
  • Page 34 FOCAL MANAGER DSA 500 RT EXPERT PERFORMANCE U s e r m a n u a l The compressor menu (fig. 20) is divided into 2 zones. The upper area is devoted to the front channels (labelled in yellow). The lower area is devoted to the subwoofer (labelled in blue).
  • Page 35 FOCAL MANAGER DSA 500 RT EXPERT PERFORMANCE U s e r m a n u a l In highest dynamic zones (approaching 0dB relative), depending on the parameters set for threshold and ratio, the dynamic compressor will react in response to external excursions to limit saturation, vibration or excessive load on the speakers.
  • Page 36 FOCAL MANAGER DSA 500 RT EXPERT PERFORMANCE U s e r m a n u a l (fig. 24) (fig. 24) The third stage in the configuration sequence is accessible from the car zone (fig. 18). This stage is not essential in terms of operating your DSA 500 RT but it does allow the listening parameters to be optimised.
  • Page 37 FOCAL MANAGER DSA 500 RT EXPERT PERFORMANCE U s e r m a n u a l (fig. 26) Each delay can be adjusted using the horizontal linear potentiometer. (fig. 27) The delay can be entered in ms using the active data entry box or the associated stepper . You can also use the arrows on the keyboard for more precise adjustments.
  • Page 38 FOCAL MANAGER DSA 500 RT EXPERT PERFORMANCE U s e r m a n u a l drag (fig. 28) (fig. 28) An example of how this is applied in pratice is given below: The precedence effect is a recognised acoustic phenomenon that induces the brain into thinking that the only source of a sound is the source from which the sound waves reach the ears firstly.
  • Page 39 FOCAL MANAGER DSA 500 RT EXPERT PERFORMANCE U s e r m a n u a l (fig. 29) The lower area devoted to the subwoofer is used to manage the alignment parameters for the subwoofer (fig. 30). The blue halo represents the sound waves issued from the subwoofer. Variations in the intensity of these waves indicate the variation of temporal alignment obtained between the subwoofer and the front channels when the frequency is tuned.
  • Page 40 FOCAL MANAGER DSA 500 RT EXPERT PERFORMANCE U s e r m a n u a l In the frequency adjustment zone between the subwoofer and the rest of the speakers for the system, adjus- ting the cutoff frequency is unfortunately not enough to ensure accurate reproduction and the expected impact for low frequencies.
  • Page 41 FOCAL MANAGER DSA 500 RT EXPERT PERFORMANCE U s e r m a n u a l 0,34 1,03 1,72 2,06 2,75 3,44 5,16 6,88 10,32 13,76 1000 rotation Adding too great a delay may produce an undesired echo effect. It should be used very gradually.
  • Page 42 FOCAL MANAGER DSA 500 RT EXPERT PERFORMANCE U s e r m a n u a l " " This menu can be accessed via the FILE -> SAVE or UPLOAD menu and allows you to add details regarding your parame- ters before saving or applying them to your DSA 500 RT.
  • Page 43 You can also enter personal contact information and/or, if you are a professional installer, information about yourself and your end client. Personal information (names and addresses) will not be visible to other users; they are required solely for the purpose of accessing the FOCAL web service. (fig. 35) (fig. 35)
  • Page 44 - Upload: If you think it would be interesting to share the results of your sound experience, you can send your configu- ration preset to FOCAl. This preset will then be made available to other users on the dedicated DSA 500 RT A configurator per manufacturer and type of vehicle is available in order to find only the relevant configuration files.
  • Page 45 FOCAL MANAGER DSA 500 RT EXPERT PERFORMANCE U s e r m a n u a l E " " Accessible from the FILE -> LOAD Preset menu, this allows you to open a preset saved locally or a preset downloaded...
  • Page 46 ® Focal-JMlab - BP 374 - 108, rue de l'Avenir - 42353 La Talaudière cedex - France - www.focal.com Tel. (+33) 04 77 43 57 00 - Fax (+33) 04 77 43 57 04 - SCEB-130610/1...
