Summary of Contents for Madell Technology Corporation TPR3000

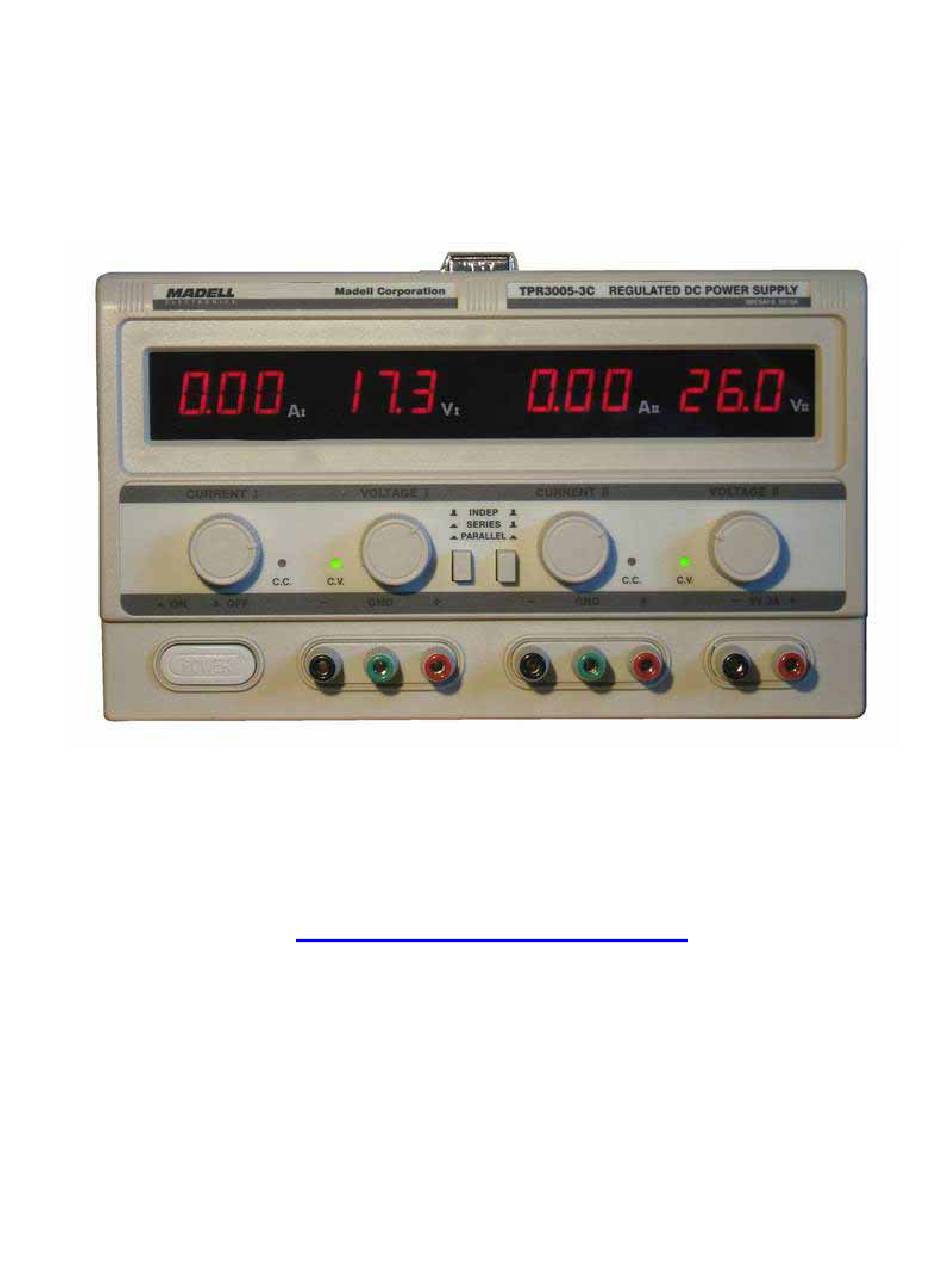

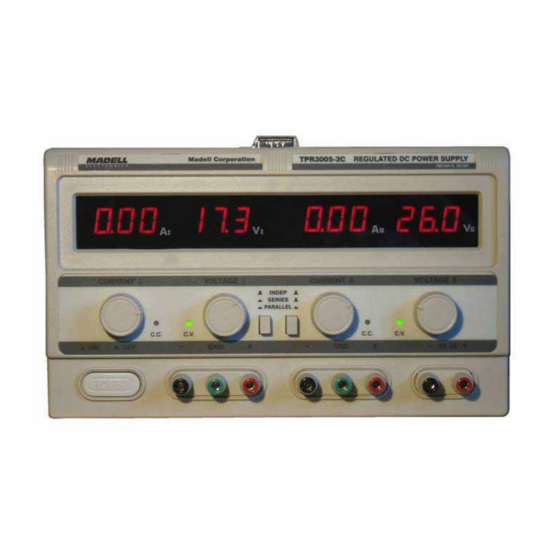

- Page 1 TPR3000 Triple-Output Regulated DC Power Supplies Madell Technology Corporation http://www.madelltech.com © Copyright 2005...
- Page 2 Welcome to use Madell TPR3000-3C high precision regulated DC power supply. Please read this user’s manual carefully before start using it. General TPR3002-3C, TPR3003-3C, TPR3005-3C. TPR3010-3C series are high precision linear DC power supplies. These are dual constant voltage, constant current (CV, CC) regulated DC power supplies with the features of low ripple, excellent anti-interference ability and high precision.
-
Page 3: Operation Instructions
3. Constant Voltage Specifications Model Voltage Stability Load Stability Ripple and Noise TPR-3C Series ≤0.01&±2mV ≤0.01&±2mV ≤1mVrms (effective value) 4. Constant Current Specifications Model Voltage Stability Ripple and Noise TPR-3C Series ≤0.2&±3mA ≤3mArms Operation Instructions 1. Notice (1) AC Input AC Input should be 110V±1% and 60Hz (2) Heat Radiator The heat sink radiator is located at the back of the power supply. - Page 4 knob and the slave channel (left) voltage tracks the master voltage. Total output voltage is the summation of the master and slave. Serial mode output can be obtained from the “+” terminal of master channel (right) and “-“ terminal of the slave channel(left).
- Page 5 Do not spray cleaning liquid directly on to the power supply. Use a wet soft cloth to clean the outside box. Do not use gasoline or other erosive chemical liquid to clean. Madell Technology Corp. 7372 Walnut Ave. Suite V Buena Park, CA 90620 1-877-670-9023 info@madelltech.com...
