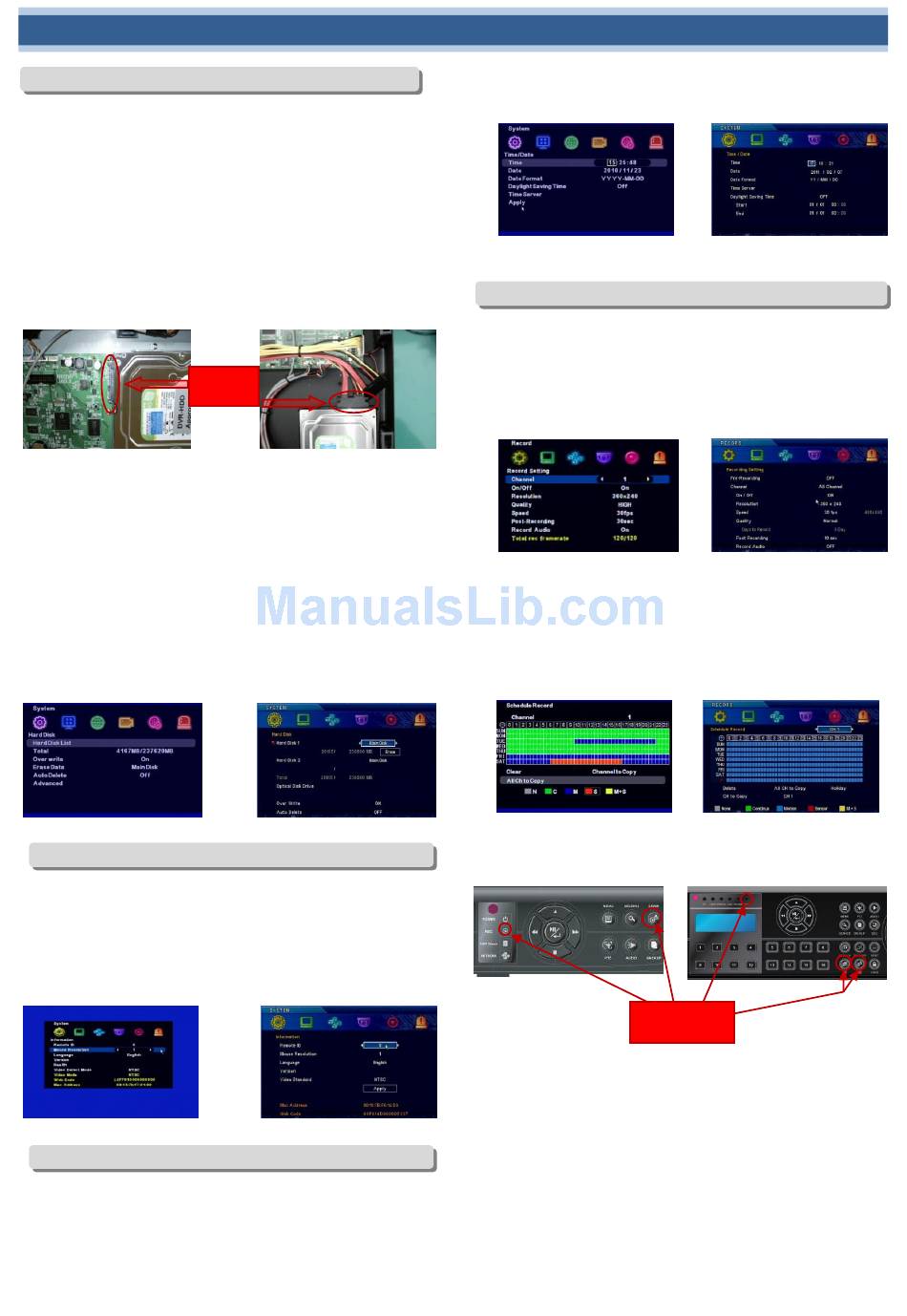

RHINO 4/9/16CH H.264 DVR Quick Manual

Quick Manual for 4/9/16CH H.264 DVR

1. Starting DVR

. DVR (Digital Video Recorder) essentially requires Hard Disk for recording.
. Before installing Hard Disk, be sure to refer to "Approved HDD List" on the
first page of instruction manual to pick up the approved Hard Disk.
. If you install Hard Disk that is not on the list, the DVR might malfunction.
. Before installing HDD, turn off the power of DVR and fix the HDD to
provided bracket. And check the connection between SATA port and power
supply.
. In case you want to install HDD that is not on the list, please consult with
your supplier.
4CH DVR ( 1 HDD can be installed.)
. Please make sure to use the power supply which was provided by
manufacturer.
▶4CH DVR: DC12V/ 3.5Amp, ▶9/16CH DVR: DC12V 6Amp.
. Even if the DVR does not alert you with WARNING message of FORMAT,
sure to format the HDD before using DVR regardless of whether it is brand
new or used one. To format the HDD from DVR, go into the DVR OSD menu
and go to "System –> Hard Disk –> Erase". If you click on "ERASE", the DVR
will format the HDD
.
4CH

2. Checking Video Signal

. Our DVR supports NTSC & PAL video systems.
. We set it to either PAL or NTSC system before releasing as our customer‟s
demand. If something is wrong, please check out video system of DVR &
camera. You can change the video system by yourself on the menu "System
-> Information -> Video Mode".
4CH

3. DVR Time Setup

. If the DVR time is not set, you will have difficulty in recording and searching
at the time you want. If DVR was connected to the internet, the DVR can
set-up the time automatically. Then the DVR maintains correct time
synchronize with actual time of the connected Time Server by every 24hours.
Caution
9/16CH DVR (2 HDD can be installed.)
9/16CH
9/16CH
. When it comes to applying the GMT, please set the TIME ZONE.
. If DVR is not connected to the internet the time might not be correct..
4CH

4. Recording

. Enter DVR OSD menu and go to "RECORD SETTING" to set up each channels.
. On "RECORD SETTING" menu, select ON / OFF per channel. If recording
mode is OFF, the unit will not record even if you set the
RECORDING".
4CH
. The DVR supports "Schedule Recording" and you can set-up its recording
be
mode by hour.
. Default of schedule recording is "Motion Detection", every 30 minutes user
can set up such as "None, Continue, Motion, Sensor, Motion+Sensor".
4CH
. Remote control, Mouse or Front Key can be used to start recording.
4CH
. Schedule/ Emergency Recording can also be set from one button in the
Front Key if it is DVR-400H. But there are two buttons on DVR-0800S, DVR-
1600S for Schedule or Emergency Recording in the Front Key.
. If the "REC" LED is on it means it is under schedule recording mode.
If the LED flickers it is under emergency recording mode.
. Emergency recording enables to unconditional record regardless of setup
made by user. (Please note that it will not record even if you press
"Emergency Recording" button in case recording of the relevant channel is set
"OFF".
. "ER" means Emergency recording, "SR" means Schedule recording in status
bar.
9/16CH
"EMERGENCY
9/16CH
9/16CH
9/16CH
Check Here
