Summary of Contents for Ironton 37800

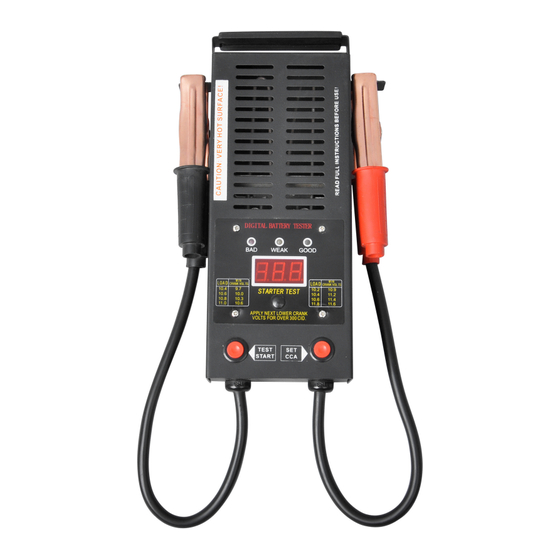

- Page 1 125 AMP BATTERY LOAD TESTER WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item# 37800...
-
Page 2: Technical Specifications
Thank you very much for choosing a Ironton product! For future reference, please complete the owner’s record below: Model: _______________ Purchase Date: _______________ Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it. - Page 3 IMPORTANT SAFETY CONSIDERATIONS SPECIFIC SAFETY PRECAUTIONS 1. Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. 2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks, which may ignite the dust or fumes.
- Page 4 Clamp (B) goes to the negative terminal of the battery. 16. When placing the Battery Tester in the vehicle (on the frame, engine, or fender), take special care that the metal housing of the Battery Tester does not come in contact with either terminal of the battery or other electrical connections.
- Page 5 Clamps are connected to the proper terminal posts. Make certain a clean connection has been made between the Clamps and terminal posts. Push and release the Test Start button(C), a solid and consistent measurement is indicated by the Battery Tester. Within five seconds, read the LED Window display. Do not test more than three times in a five minute period.
- Page 6 Start the engine and let it run. Do not using the Test Start Button, observe the voltage readout when the engine speed reaches between 1200 to 1500 RPM (normal idle speed). Once you push the Test Start Button (C), then tester will into charging system mode.
- Page 7 WARRANTY One-year limited warranty Distributed by: Northern Tool + Equipment Co., Inc. Burnsville, Minnesota 55306 NorthernTool.com Made in China...
