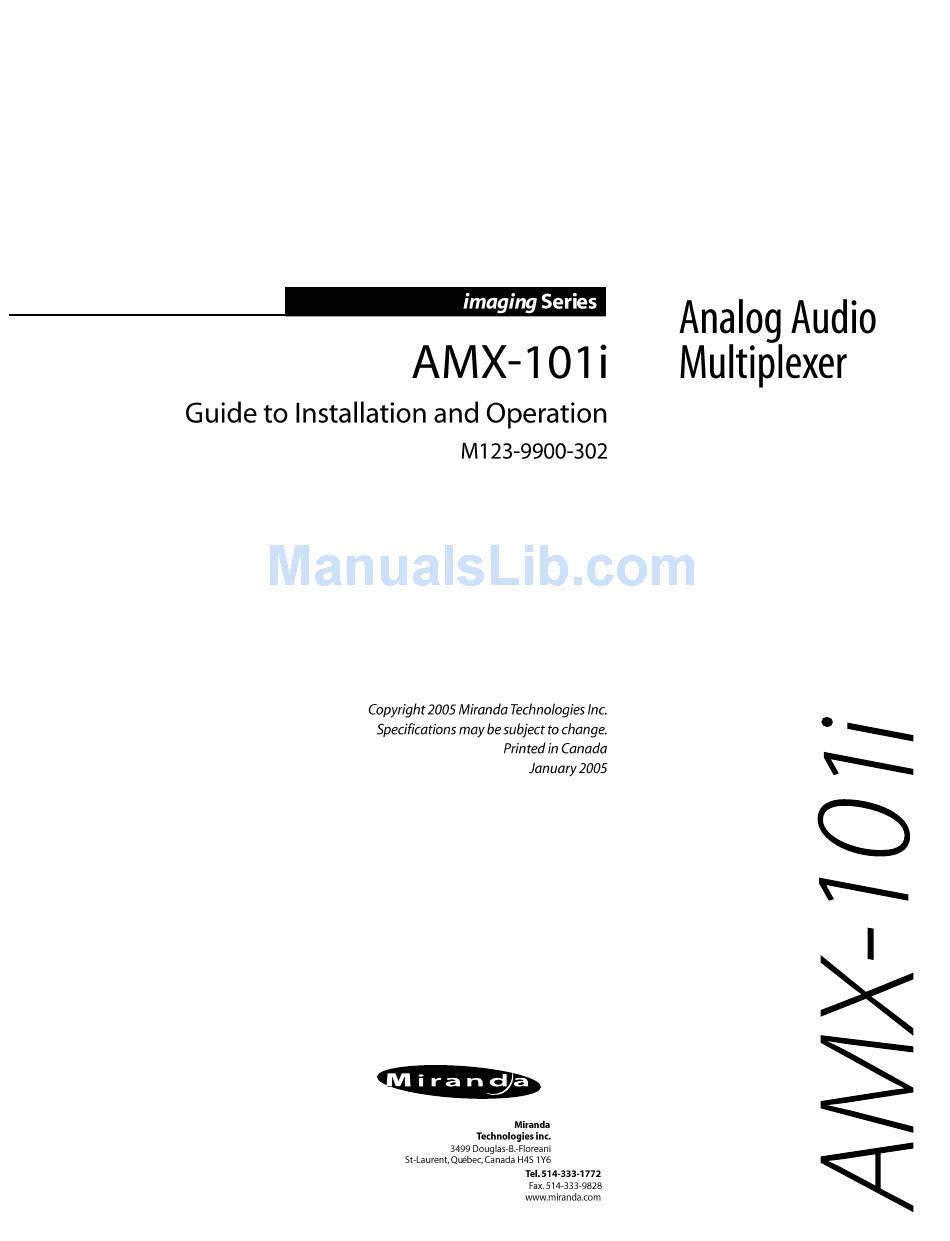

Miranda AMX-101i Manual To Installation And Operation

Alalog audio multiplexer imaging series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMX-101i and is the answer not in the manual?

Questions and answers

Related Manuals for Miranda AMX-101i

Summary of Contents for Miranda AMX-101i

  • Page 2 - This equipment complies with the requirements of EN55022 Class A, Electromagnetic Emissions, En 60555-2 & -3, Disturbance in Supply Systems and EN50082-1, Electromagnetic Immunity. CONTACT MIRANDA For technical assistance, please contact the Miranda Technical support centre nearest you: Americas Asia...

  • Page 3: Table Of Contents

    CONTENTS 1 AMX-101i Analog Audio Multiplexer ............. 1 1.1 Introduction ......................1 1.2 Features ........................1 2 Installation..................... 2 2.1 Unpacking ....................... 2 2.2 AMX-101i Mechanical Installation ................2 2.3 Rear Panel Label ....................3 2.4 AMX-101i Electrical Installation................5 2.5 600 Ω...

  • Page 4: Amx-101I Analog Audio Multiplexer

    525/625 input detection with full EDH monitoring. The AMX-101i is a member of the imaging family of digital video modules and therefore requires the imaging Quartet-A-75 or the imaging Symphonie frame with Symphonie-R-A75 rear module for mounting and power.

  • Page 5: Installation

    2 Installation 2.1 Unpacking Make sure the following items have been shipped with the AMX-101i. If any of the following items are missing, contact your distributor or Miranda Technologies Inc. § AMX-101i Analog Audio Multiplexer § AMX-101i rear panel labels (2) §...

  • Page 6: Rear Panel Label

    2.3 Rear Panel Label A connector label has been shipped with the AMX-101i. This label is to be installed on the frames’ rear panel in order to identify the module's external connectors. 2.3.1 Quartet-A-75 Frame To install the rear panel label on a Quartet-A-75 frame, follow these steps while referring to Figure 2.1.
  • Page 7 2.3.2 Symphonie Frame To install the Symphonie label, follow these steps while referring to Figure 2.2. 1. On Symphonie’s rear panel, locate the appropriate connectors. 2. Remove the rear label mounting screws from the rear module. 3. Carefully apply the label to the connectors making sure the label’s text is read from top to bottom.

  • Page 8: Amx-101I Electrical Installation

    Refer to Figure 2.5 for rear panel electrical installation. 4:2:2 IN: serial digital video input with active loop-through Connect a 4:2:2 serial digital video source to 4:2:2 IN. The AMX-101i accepts a 4:2:2 serial digital video signal in either 525 or 625-line format. This input must conform to the SMPTE 259M-C standard.

  • Page 9: 600 Ω Internal Termination Jumper

    2.5 600 Ω Internal Termination Jumper When 600 Ω audio impedance equipment is connected to the AMX-101I, its input impedance must be internally calibrated for 600 Ω. To do so, perform these steps. It is necessary to use the imaging Extender Module to access the potentiometers (refer to the frame’s Guide to Installation and Operation for more...

  • Page 10: Operation

    Potentiometers AMX-101i (top view) 3 Operation 3.1 AMX-101i User Interface Figure 3.1 illustrates the AMX-101i's user interface situated at the front end of the module. The interface components include the following: § Digital video input status monitoring § Analog audio input status monitoring §...

  • Page 11: Menu Introduction

    3.2 Menu Introduction Most AMX-101i parameters are accessed and changed via an easy-to-use menu. The flow chart of Figure 3.2 outlines the entire AMX-101i menu path. The menu consists of 10 major functions: audio group selection, mute, level adjustments, group monitoring, channel swap, audio delay, overwrite, channel status mode, calibration, and factory reset.
  • Page 12 Figure 3.2 AMX-101i menu hierarchy Home menu [NONE,GRP1,GRP2,GRP3,GRP4] MUTE [OFF,ON] [OFF,ON] [OFF,ON] [OFF,ON] [OFF,ON] [0,0.5,1.0,...,30.5,31.0] LEVL (dB) [0,0.5,1.0,...,30.5,31.0] (dB) [0,0.5,1.0,...,30.5,31.0] (dB) [0,0.5,1.0,...,30.5,31.0] (dB) [0,0.5,1.0,...,30.5,31.0] (dB) MONI [1234] SWAP [NO,YES] [NO,YES] [NO,YES] [0,1,...,10] DELAY OVWR [ON, OFF] CHAN STAT [PRO,CONS] EMPH...

  • Page 13: Input Status Monitoring

    3.3 Input Status Monitoring § The 525 LED turns on to indicate a 525-line serial digital 4:2:2 signal has been detected on the 4:2:2 IN BNC. § The 625 LED turns on to indicate a 625-line serial digital 4:2:2 signal has been detected on the 4:2:2 IN BNC.

  • Page 14: Audio Group Selection

    3.5 Audio Group Selection The analog audio inputs can be embedded in any of four groups within the horizontal ancillary data space (HANC) of the 4:2:2 digital video signal. If no audio data is detected in the audio group, selected here, within the input 4:2:2 serial digital signal, then multiplexing is automatically performed.

  • Page 15: Level Adjustments

    3.7 Level Adjustments This section describes the necessary steps to take in order to adjust the analog audio input levels. Each input gain configuration L1, R1, L2 and R2 can be individually set between 0dB and 31 dB. A 0 dB setting provides a full scale output of 24 dBu.

  • Page 16: Channel Swapping

    3.9 Channel Swapping The following swap combinations are provided by the AMX-101i. AES: Channel pair swap between AES 1 and AES 2. LR1: Swap the left and right channels of AES 1. LR2: Swap the left and right channels of AES 2.

  • Page 17: Overwrite

    3. Press SELECT to enter the calibration menu. NO is displayed. 4. Press (+) to display YES. Press SELECT begin the ADC calibration. After completing the ADC calibration, the AMX-101i returns to the CAL menu. 5. Press ESC to return to normal mode.

  • Page 18: Factory Reset

    To enable the tone generator and the internal color bar pattern, follow these steps: 1. Make sure the AMX-101i is in normal mode. 2. Press TEST(+) to enable the tone and color bar generator. During this time, the TEST LED is on.

  • Page 19: Specifications

    Steady 1 KHz sine wave on each audio output Storage temperature: -40 to 85°C Operating environment: 0 to 40°C, non-condensing Output timing drift: < 0.1 ns/°C Humidity: 10 to 90%, non-condensing Power consumption: Physical format: imaging size (6.0”x10.0”) Remote control: ICP-S (Miranda proprietary serial bus)
