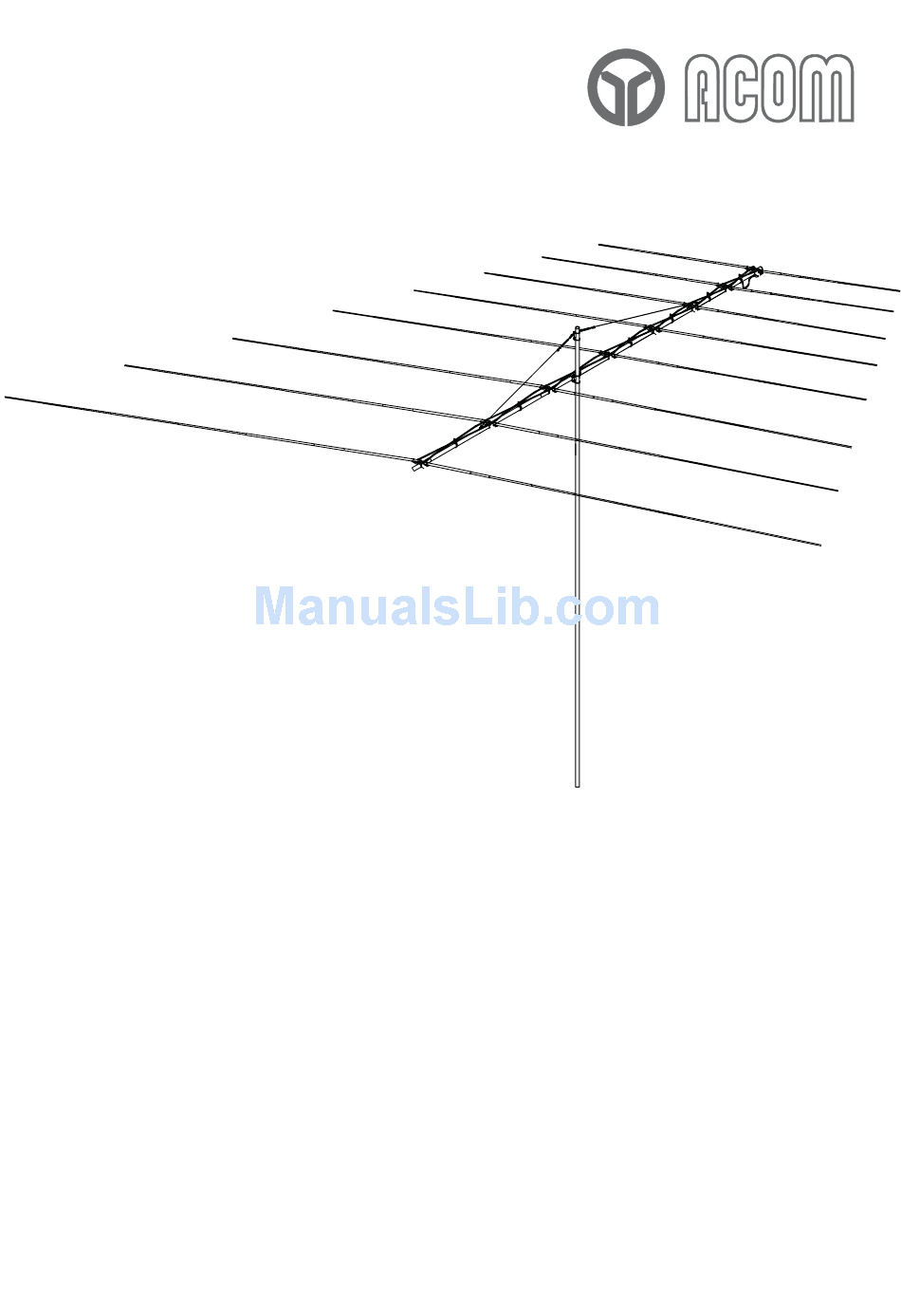

- Page 1 ASSEMBLING MANUAL LS 86 HF Log – Periodic Antenna 14 – 30 MHz...
-
Page 2: Assembling Manual
1.1. Introduction and Description This manual explains the assembling of the ACOM LS86 HF Log-Periodic Antenna. The LS86 is a directional wideband antenna that covers the HF spectrum between 14 and 30 MHz continuously. It can be used with the full legal power of 1500W continuously or 3000W PEP. - Page 3 The first step to installation is to fully read this manual. Then, carefully inspect the shipping cartons for any physical damage. ACOM ships antennas in highly protected containers, but it cannot assure that mistreatment by shippers will not occur. If there is any such damage, notify your ACOM dealer immediately. Failure to do so may invalidate your warranty.
- Page 4 ACOM LS86 HF Log-periodic Antenna Align the three riveting holes and insert a rivet in each hole, without riveting. Arrange the whole half-element in this manner for a test only, without riveting for now. Check the total half-element length per Table 1 - Half- Element Lengths.
- Page 5 ACOM LS86 HF Log-periodic Antenna Continue in the same manner until you install all the seven strap pairs crossing between the antenna elements (straps actually zigzag). At the last element (number 8), place a plain washer on the bolts closest to the boom.
- Page 6 ACOM LS86 HF Log-periodic Antenna bracket downwards along the mast in order to hook the guys. Unlock the shackle-locking pin. Align the drawing bracket, shackle holes, and re-insert the locking pin. Tighten properly. Now move the drawing bracket upwards again and stretch the guys until the boom is essentially straightened.
