Terrestrial Digital XG91 Assembly And Installation

XG91 Assembly and Installation
1.)
To assemble the antenna, join the three sections of the boom using the joining
brackets bolts and wing nuts. Ensure that the holes that locate the directors are on the top
of the boom.
2.)
Place the black balun box on the underside of the boom and fix with thumb screw
bolt provided.
3.)
Attach "U" shaped tilt bracket assembly to the underside of the boom and tighten the
wing nuts in the desired position. (Note this assembly can be fitted to enable either a
vertical or horizontal installation, depending on your local area.
4.)
To fit the directors to the boom, line up each piece with a corresponding hole in the
boom and press firmly to snap together. As each director assembly is identical, it does not
matter in which order they are fitted.
5.)
After the directors have been fitted, attach the two large corner reflector screens to the
boom by sliding the metal brackets under the head of the screw and the wing nut.
6.)
Fix antenna to mast and firmly tighten all screws.

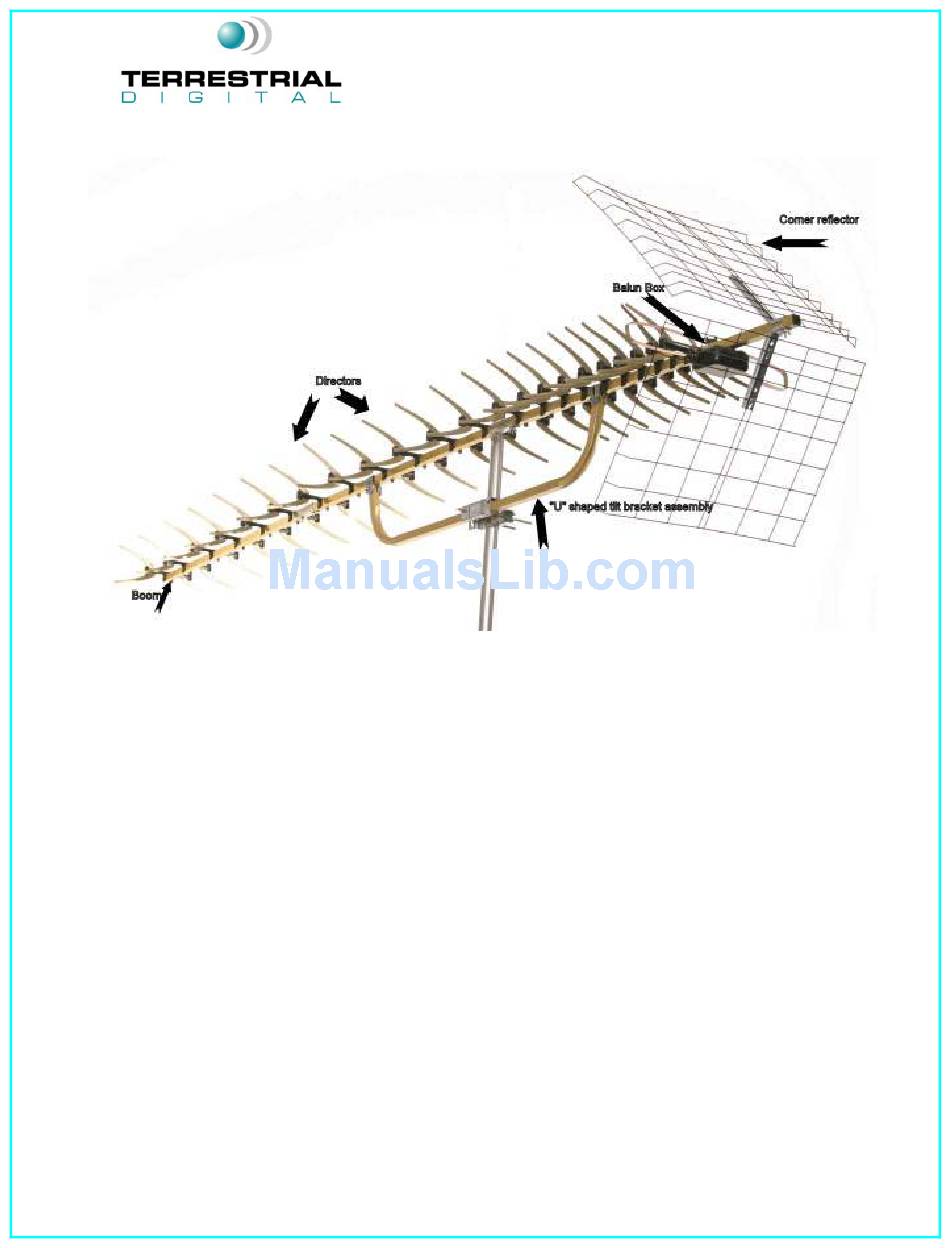

Note, illustration shows an installation for a horizontally antenna. By changing the
orientation of the tilt assembly, a vertically mounted installation can be achieved.
