Gobo Projector 1

User Manual

Professional Entertainment Technology

Table of Contents

Need help?

Do you have a question about the Gobo Projector 1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rush Gobo Projector 1

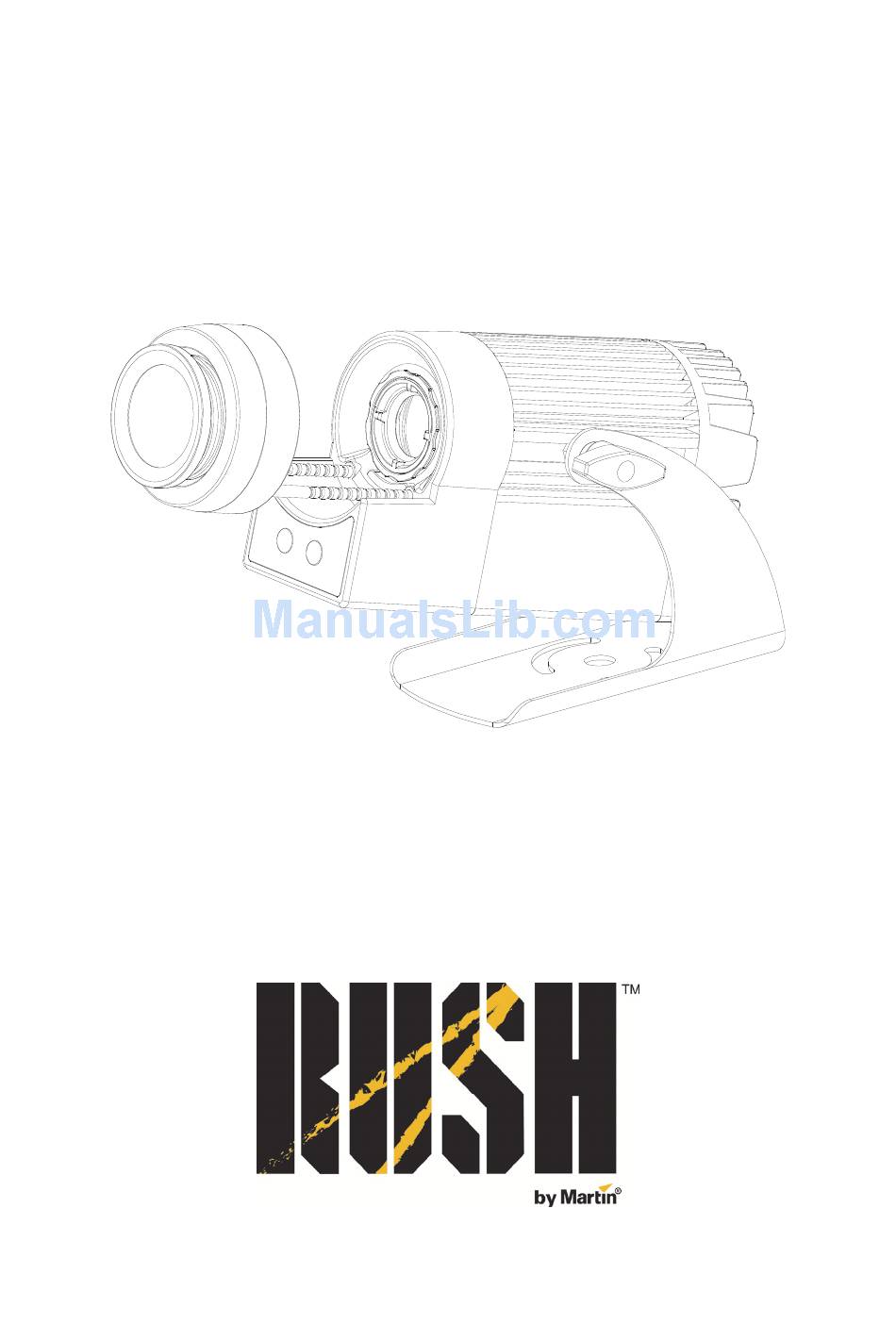

Page 1 Gobo Projector 1 User Manual Professional Entertainment Technology...
Page 2 The Martin logo, the RUSH by Martin logo, the RUSH by Martin name, the Martin name and all other trademarks in this document pertaining to services or products by Martin Professional or its affiliates and subsidiaries are trademarks owned or licensed by Martin Professional or its affiliates or subsidiaries.
Page 3: Table Of Contents
Table of contents Safety information ..................... 5 Introduction ....................... 9 Before using the product ................9 Physical installation ..................10 Fastening the fixture to a flat surface ............10 AC power ......................11 Operation ......................12 Fixture overview ..................12 Projecting a gobo ..................
Page 5: Safety Information
If you have any questions about how to install, operate or service the fixture safely, please contact your Martin™ distributor (see www.martin.com/distributors for details) or call the Martin™ 24-hour service hotline on +45 8740 0000, or in the USA on 1- 888-tech-180. RUSH Gobo Projector 1 User Manual...
Page 6 It may also cause damage or malfunction and it may void your product warranty. Install, operate and service RUSH by Martin™ products only as directed in their user manuals, or you may create a safety hazard or cause damage that is not covered by product warranties.
Page 7 Do not attempt to bypass thermostatic switches or fuses. Do not stick filters, masks or other materials onto any optical component. Use only glass or metal gobos. Do not insert film, plastic, paper, or any other flammable material in the gobo holder. RUSH Gobo Projector 1 User Manual...
Page 8 Do not attempt to use a fixture that is obviously damaged. Do not modify the fixture in any way not described in this manual or install other than genuine RUSH by Martin™ parts. RUSH Gobo Projector 1 User Manual...
Page 9: Introduction
RUSH by Martin™ user manual revisions are identified by the revision letter at the bottom of the inside cover. Note that when the fixture is powered on for the first time, it may smoke slightly as it warms up, but this will only last a few minutes and is no cause for concern.
Page 10: Physical Installation
7 mm (1/4 in.) curved mounting slots in the mounting bracket as shown. The bracket’s 13 mm (1/2 in.) hole may also be used for fastening. Use at least two fasteners for installation RUSH Gobo Projector 1 User Manual...
Page 11: Ac Power
EU system Brown Blue Yellow/green The fixture has an auto-ranging power supply that accepts AC mains power at 100V~240V, 50/60Hz. Do not apply AC mains power at any other voltage or frequency to the fixture. RUSH Gobo Projector 1 User Manual...
Page 12: Operation
Operation Read ‘Before using the product’ on page 9 before operating the fixture. Fixture overview RUSH Gobo Projector 1 User Manual...
Page 13: Projecting A Gobo
5. Press the Speed button repeatedly to set the desired gobo rotation speed: fast, medium or slow. Note: The selected rotation direction and speed settings are stored in memory and applied when the fixture is powered on. RUSH Gobo Projector 1 User Manual...
Page 14: Replacing The Gobo
Replacing a gobo The Rush Gobo Projector 1 accepts size E glass or metal gobos. See ‘Gobo’ on page 17 for gobo requirements. To replace a gobo: 1. Disconnect the fixture from AC power and allow it to cool for at least 15 minutes.
Page 15: Maintenance
Check again at frequent intervals. This procedure will allow you to assess cleaning requirements in your particular situation. If in doubt, consult your RUSH by Martin dealer about a suitable maintenance schedule.
Page 16 Dry with a soft, clean, lint-free cloth or low-pressure compressed air. Remove stuck particles with an unscented tissue or cotton swab moistened with glass cleaner or distilled water. 4. Check that the fixture is dry before reapplying power. RUSH Gobo Projector 1 User Manual...
Page 17: Specifications
Protection rating ..................IP20 Gobo Size ..........E24 (Size E, max. image diameter 24 mm) Recommended material ............Steel or glass Outside diameter ............37.5 mm +0/-0.2 mm Maximum image diameter ..............24 mm RUSH Gobo Projector 1 User Manual...
Page 18 EN 61000-3-3, EN 61547 US safety ................... UL 122 US EMC ............... FCC Part 15 Class A Canadian safety ............ CSA C22.2 No. 118-1959 Canadian EMC ..............ICES-003 Class A Australia/NZ ................C-Tick N4241 RUSH Gobo Projector 1 User Manual...
Page 19: Included Items
Power cable, 1.9 m (without mains plug on EU model) Ordering Information RUSH Gobo Projector 1™ in cardboard box, EU model ..P/N 90480060 RUSH Gobo Projector 1™ in cardboard box, US model ..P/N 90480065 Specifications are subject to change without notice. For latest product specifications, see www.martin.com...
