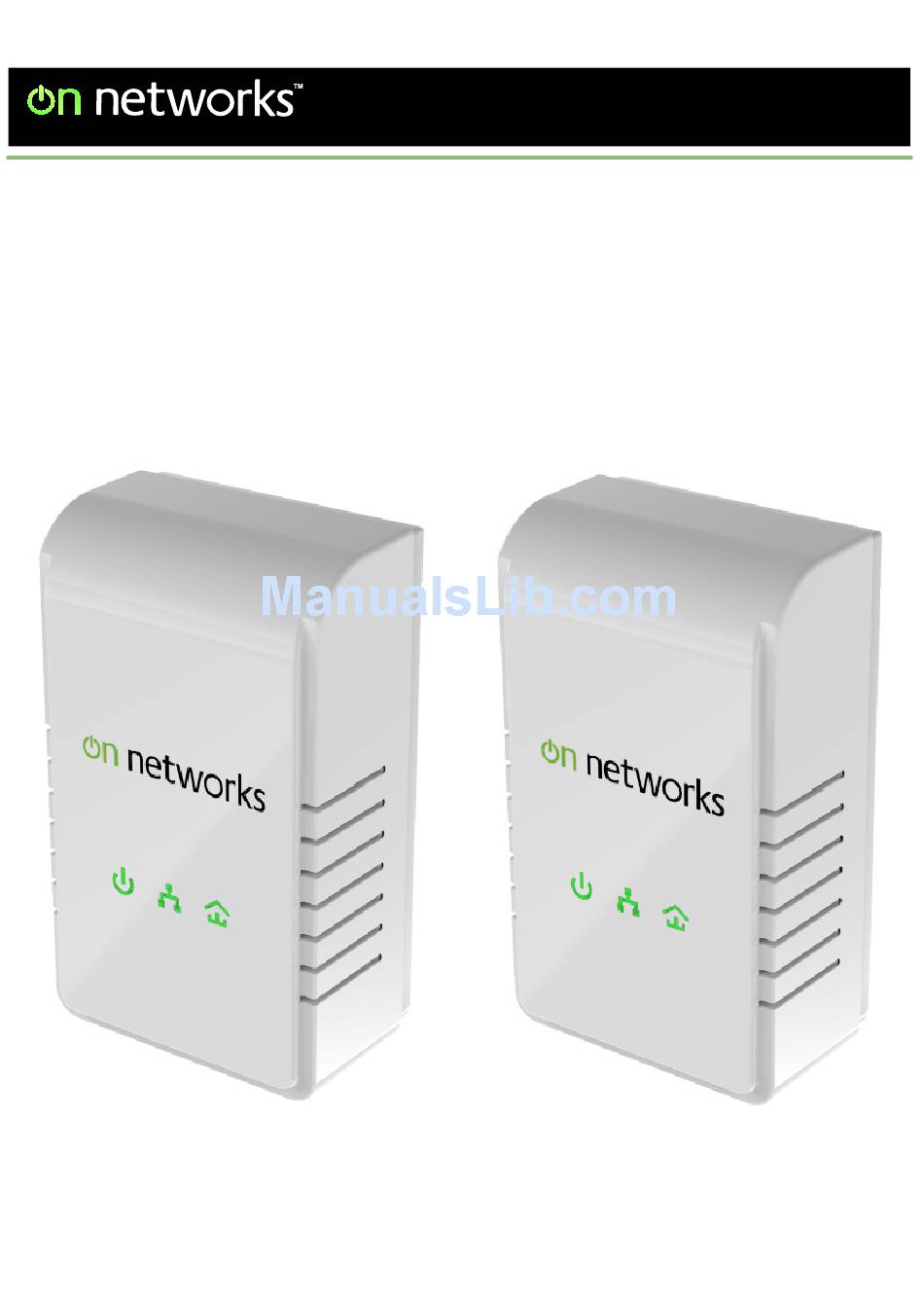

  • Page 1 Installation Guide Easy, Reliable & Secure Pow er l i n e 2 00 H o me N e twor k A dapter (P L200)
  • Page 2 Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, On Networks reserves the right to make changes to the products described in this document without notice. On Networks does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
  • Page 3 LED descriptions Item Description • Solid green. The electrical Power LED power is on. • Solid amber. The adapter is in power saving mode. • Blinking green. The adapter is in the process of setting up security. • Off. There is no electrical power. •...
  • Page 4 Button descriptions Reset button Security button Ethernet port Item Description Press the Reset button for 1 second, Factory Reset then release it to return the Power- line adapter to its factory default set- tings. Security After you plug in your new AV adapter, press the Security button Button for 2 seconds, then press the security...
  • Page 5 Install your Powerline adapter For each Powerline adapter you are adding to your existing Powerline network, do the following: 1. Plug each Powerline adapter into a power outlet. 2. Set up security on your Powerline adapter to add it to your existing Powerline network. Press the Security button for 2 seconds, then press the Security button on one of the other Powerline adapters in your existing...
  • Page 6: Safety Information

    3. Connect devices to your Powerline adapter. To the Ethernet port on the bottom of the Powerline adapter, you can connect a device, such as a router or a computer. Safety Information • AC input: 100-240V~, 60m A (Max). • Operating temperature: 0C~40C.
  • Page 7: Technical Support

    Technical Support Thank you for selecting On Networks products. After installing your device, locate the serial number on the label of your product, and use it to register your product at http://www.on-networks.com/register. Registration is required before you can use the telephone support service.
