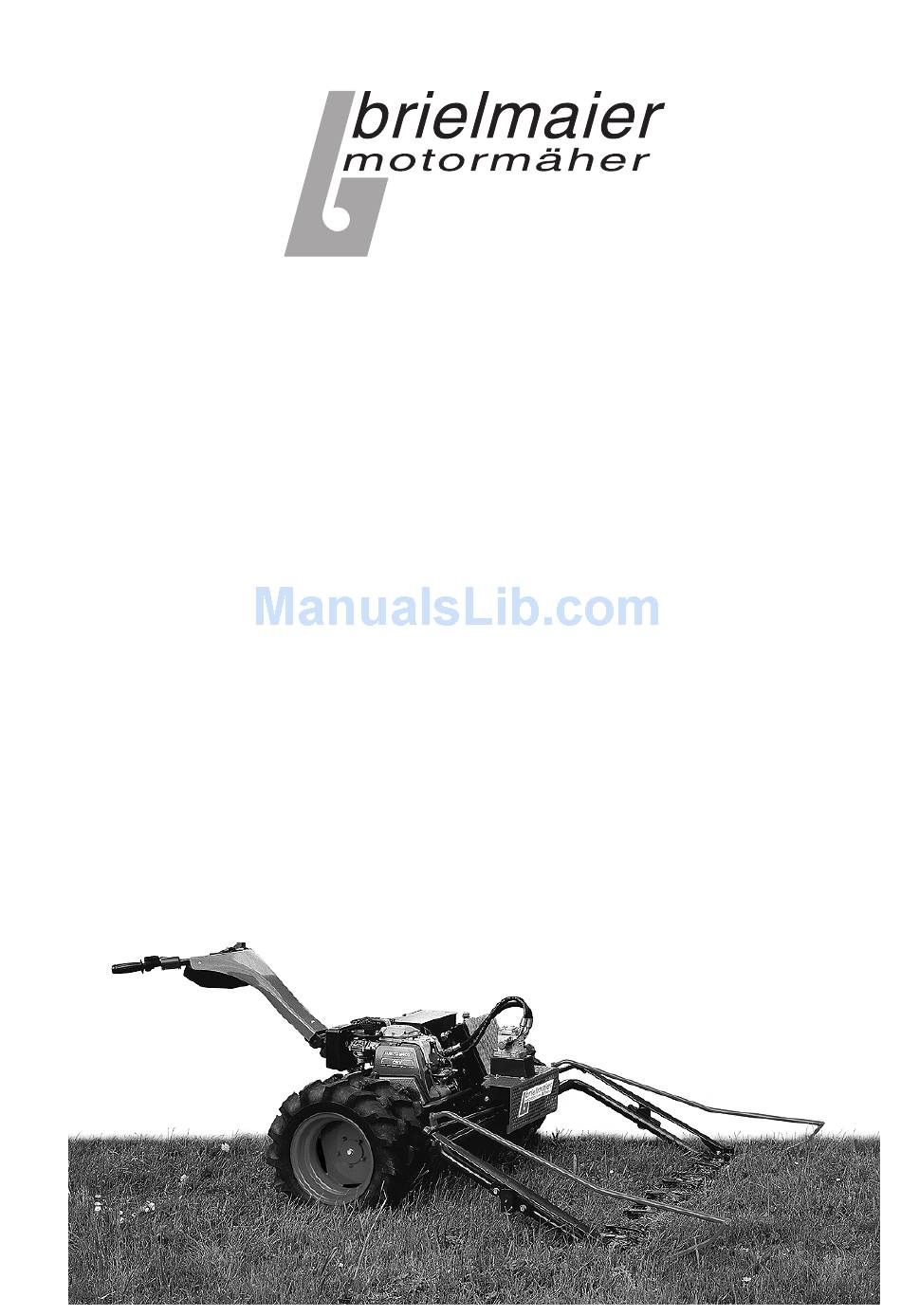

Page 1 Operating Manual (Subject technical changes)
Page 2: Table Of Contents
operating manual & Ersatzteilliste Contents Page Declaration of confirmity · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1- 2 Technical Data ·...
Page 3: Declaration Of Confirmity
Germany - 88048 Friedrichshafen declares as sole responsible entity that the product, namely the Brielmaier motor mower type 108.00001.41 and type 108.00001.43 referred to by this operating manual, correspond to the pertinent basic safety and health requirements of the EC provisions 98/37EG.
Page 5: Technical Data
105 kg 112 kg 1) Measuring procedure according to prEN 12733:2000 2) Measuring by means of Bidux mower machinery, cutting width 200 cm 3) Measuring by means of Brielmaier Mulcher 125 4) Measuring by means of HUMUS Safety Mulcher 125...
Page 6: Device Description
Thus, you reduce the risk of accidents for yourself The Brielmaier motor mower is driven by a 4- and/or third party! stroke gas engine. This engine drives a triple Please, above all read through the instructions...
Page 7: Device Description, Adhesive Warning Label And Symbols
Device description, adhesive warning label and symbols Caution! Real safety means for you to be familiar with all safety instruction labels. This applies to the nature and location of possible danger and in particular to any kind of appropriate safety measures.
Page 8: Safety Instructions / Before Starting Operation
• rocker arm mounting, joint bolts and knife guide featuring good grip only. arms are greased in the area of „mushrooms“ • The Brielmaier motor mower is to be used on knife blades exclusively as a mower and/or is designed for...
Page 9: The Most Important Control Elements
The most important operating elements 9 10 14 15 12 13 16 17 All actuators are ergonomically and arranged When starting the mower by releasing the within easy reach. This way, the mower can be coupling lever the mower machinery is easily conducted without major efforts.
Page 10 Die wichtigsten Bedienelemente 9 10 14 15 12 13 16 17 5. Deadman switch After starting the motor there is no As soon as this switch is no longer being driving speed pressed, the engine and consequently the engaged, the mower stops.
Page 11 The most important operating elements 9 10 14 15 12 13 16 17 Center position: straight forward movement 16. Switch for ignition and electro start Right hand Right wheel stationary Left wheel stationary Right wheel Left wheel 17. Light-emitting diode indicating ignition ON 21.
Page 12: Start And Turn Off Engine
Start and turn off engine 9 10 14 15 12 13 16 17 When starting the engine please proceed as • Switch on ignition (position 16), then turn key follows: to the right and align with „Start“ • Activate acceleration lever to approx. 1/3 •...
Page 13: Start To Mow
9 10 14 15 12 13 16 17 Familiarize yourself with the Brielmaier motor • Leave turnable control bar in medium position mower’s basic functions before initial utilization (position 22)and thus, the mower is set to and choose a free and plane ground.
Page 14 Start and mow 9 10 14 15 12 13 16 17 The mower is now running • You can reduce or increase the operating speed of the cutting unit or of other connected • For shifting, press button 3 and 4 on the left operating equipment (optional equipment) via control bar or buttons 12 and 13 on the the push-buttons 9 and 10...
Page 15: How To Exchange Devices
Tighten the screw The Brielmaier motor mower is now ready for • Remove first the operation with the attached device. smaller and then...
Page 16: Advice With Regard To Mower Shipping And Safety During Transportation
Please, respect the trailing load of the pulling unit and the admitted net weight of the trailer! Use suitable ramp with permitted load-carrying capacity to load the Brielmaier motor mower! The ramps must be secured against rolling back and slipping!
Page 17: How To Demount And Mount The Knife / Greasing
This is how you can mount and dismount the knife CAUTION! • Ensure that knife guide is decoupled from the knife’s „mushrooms“ Ensure that the mower is positioned firmly on The knife must be lying loose on-top and is only flat ground and that the ignition is turned off fixed to the left side (driving direction) of the before starting any kind of work on the mower...
Page 18 There are four (4) lubricating nipples at the mowing machinery of the Brielmaier motor mower. They must be greased for mower operation on an every day basis with two to three grease gun injections.
Page 19: Operating Manual And Safety Instructions For The Cutting Unit
Operating manual and Safety instructions for double knife cutting machinery...
Page 20 Operating manual and Safety instructions for double knife cutting machinery...
Page 21 Operating manual and Safety instructions for double knife cutting machinery Servicing the bidux system Cutter Bar Blades: • The blades must always be straight. • The individual knife sections must, under all circumstances, be in alignment. • Only sharp, well ground knives work trouble-free. •...
Page 22 Operating manual and Safety instructions for double knife cutting machinery Regrinding of the blades is of eminent importance for clean, trouble-free cutting. • Only regrind with a suitable machine e.g. MERZ, KÖMAG, MENKE, HERDER, HARTMANN • The knife sections must not become hot. If they turn blue, then they are unusable ( temper drawn off and soft ).
Page 23 Operating manual and Safety instructions for double knife cutting machinery The pressure exerted by the top arms on the pair of blades is set at the factory to 130 –160 N (13-16 kp ). The pressure can be adjusted by moving the rubber block in the holder when the locking screw is released.
Page 24 Operating manual and Safety instructions for double knife cutting machinery...
Page 25: Check Engine Oil And Refill
Check motor oil level and re-fill Fan and thermostat Here, you will find the oil filler neck and the oil • Cooler dirty dipstick for the motor oil • Fan out of work The latter can also have various causes: •...
Page 26: Check Hydraulic Oil And Refill
Check hydraulic oil level and re-fill The fill hole for the hydraulic oil as well as the • Bleed oil cooler after filling oil! ventilation hoses are situated at the cooler Now rotate the locking plug carefully a quarter of a turn up to max. half of a turn, thus air can escape (do not continue to turn to avoid uncontrolled oil outflow).
Page 27: Exchange Of Hydraulic Oil And Oil Filter
Change of hydraulic oil and oil filter Standstill for a prolonged period • Unscrew the oil locking plug and take it away. If you are not going to use the motor for a Drain used oil completely and dispose of prolonged period (longer than a month), please correctly.
Page 28: Hydraulic Valves, Battery And Adjustable Control Bar
The battery is also packed into the tooling compartment. The battery must be charged with max. 1 ampere (charging current)! The control bar of the Brielmaier motor mower can be adjusted vertically and horizontally; and for this purpose, proceed as follows: •...
Page 29: Warning Advice And Safety Instructions For Lead-Acid Batteries
Warning instructions and safety provisions for lead acid batteries Follow instructions referring to the battery Never dispose of used batteries with domestic waste! included in the instruction and the mower Instructions for starter batteries manual. 1. Storage and transport • Unfilled starter batteries need no maintenance. Store in a dry and cool room (frost-free).
Page 30 Warning instructions and safety provisions for lead- acid batteries 4. Charging outside the motor mower • Connect cable poles: Both motors are switched off! Connect first the positive poles 1 and 2, then connect • Remove the battery for recharging. If you leave the the negative pole of the charged battery 3 with a battery inside the mower during recharging, the metallic bare point on the needy motor mower 4...
Page 31: Circuit Board: Cable Connections And Connectors Arrangement
Circuit board: cable poles and connector assignment Valve 5.2 Valve 6.1 Valve 6.2 Valve 5.1 Valve 1.3 Valve 8.3 Valve 8.1 Valve 8.2...
Page 32: Adjustment Of Valves
Adjustment of valves To adjust the valves plug in the bypassing plug as Flashing of the middle diode (2) indicates that shown on the circuit board. now, the steering to the left can be adjusted. Turn the fine adjustment now backward until the left wheel stops moving.Then turn slowly clockwise until the left wheel rotates as fast the right one.
