User Manual
STEP 1: C

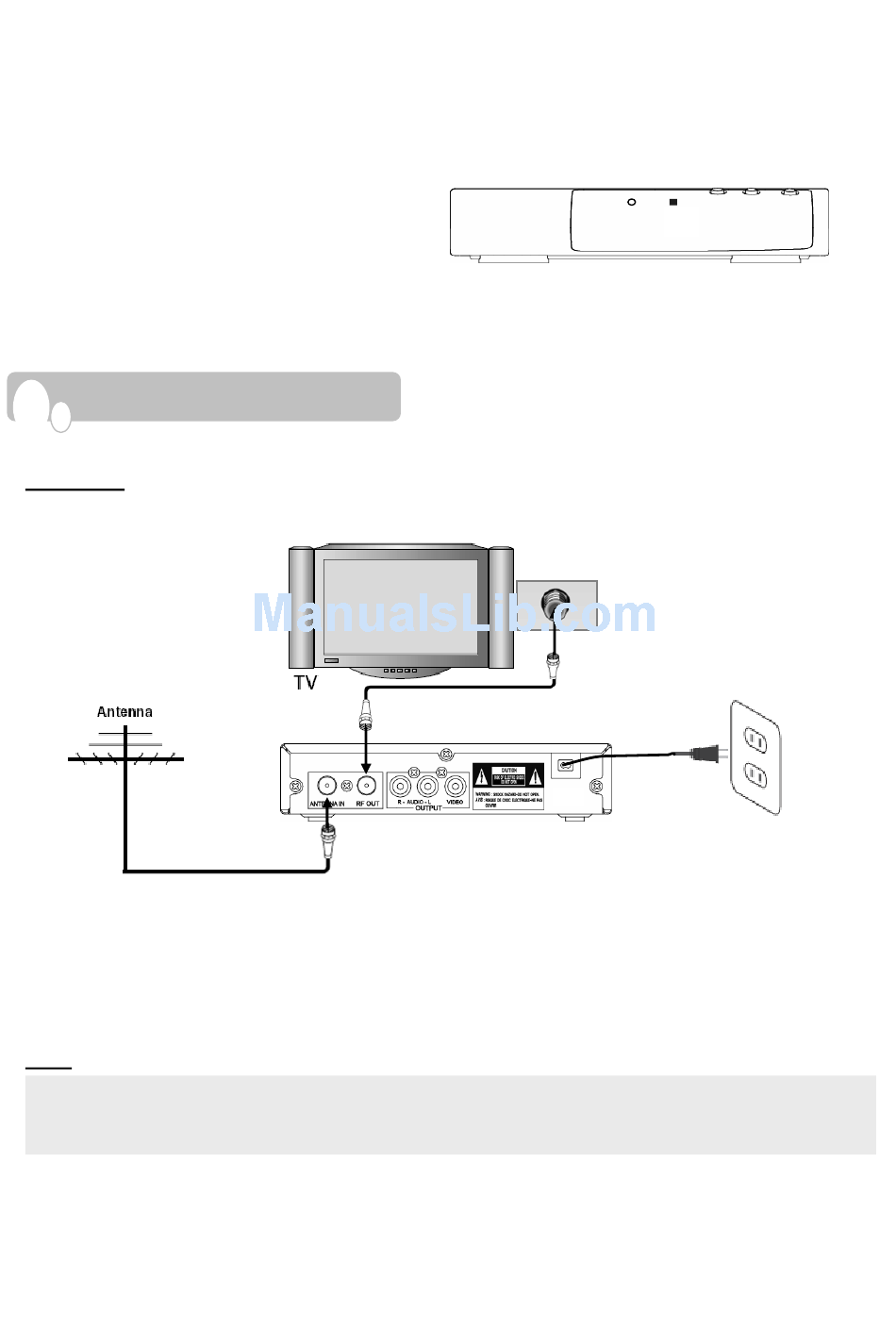

Option 1. Antenna and RF Cable Connections
1. Connect an antenna cable to the "ANTENNA IN" jack on the rear of the Converter Box.
2. Connect the "RF OUT" jack from the rear of the Converter Box to the "ANT IN" jack on your TV using
the RF cable supplied with the Converter Box.
3. Connect the AC power cable of the Converter Box to suitable wall outlet.
Note
• If you connect "RF OUT" of Converter Box to ANT. IN of your TV, you can watch the video and the
audio of the Converter Box on Ch.3 or Ch.4 of your TV. The RF output channels can be selected in
output channel of menu-option. (Refer to page 15 in user manual)
※ CAX-03 and CAX-04 have analog pass-through.
~ These models are
ONNECTIONS
capable of passing through the analog signal to the TV set in standby mode.
Q
UICK
CAX-01/CAX-03/CAX-04
ANT IN
Converter Box's Rear Panel
S
G
TART
UIDE
Advertisement
Related Manuals for Casti CAX-01
Summary of Contents for Casti CAX-01
- Page 1 UICK TART UIDE CAX-01/CAX-03/CAX-04 STEP 1: C ONNECTIONS Option 1. Antenna and RF Cable Connections ANT IN Converter Box’s Rear Panel 1. Connect an antenna cable to the “ANTENNA IN" jack on the rear of the Converter Box. 2. Connect the “RF OUT” jack from the rear of the Converter Box to the “ANT IN” jack on your TV using the RF cable supplied with the Converter Box.
- Page 2 UICK TART UIDE CAX-01/CAX-03/CAX-04 Option 2. Analog TV (Monitor) Connection with RCA Cables Converter Box Rear Panel A/V IN TV Connection Panel 1. Connect an antenna cable to the “ANTENNA IN" jack on the rear of the Converter Box. 2. Connect the “R-AUDIO-L” jacks and “VIDEO” jack from the converter box to the “A/V IN” jacks on your TV using RCA-type cables.
- Page 3 UICK TART UIDE CAX-01/CAX-03/CAX-04 STEP 2: P ROGRAM THE REMOTE CONTROLLER You can control TV sets of all major brands after programming the Converter Box remote controller with the PGM(Program) button. 1. Refer to the Program Code List (page 21 in user manual).
- Page 4 UICK TART UIDE CAX-01/CAX-03/CAX-04 STEP 3: T URN ON THE CONVERTER BOX 1. Press POWER on the converter box or BOX POWER on the remote controller. The power indicator will turn green if the power is on. 2. Press TV POWER of remote controller to turn on your TV 3.
