ARG MCC-TV Operating Manual

Multiple classic computer (mcc)
Hide thumbs

Advertisement

Quick Links

Download this manual

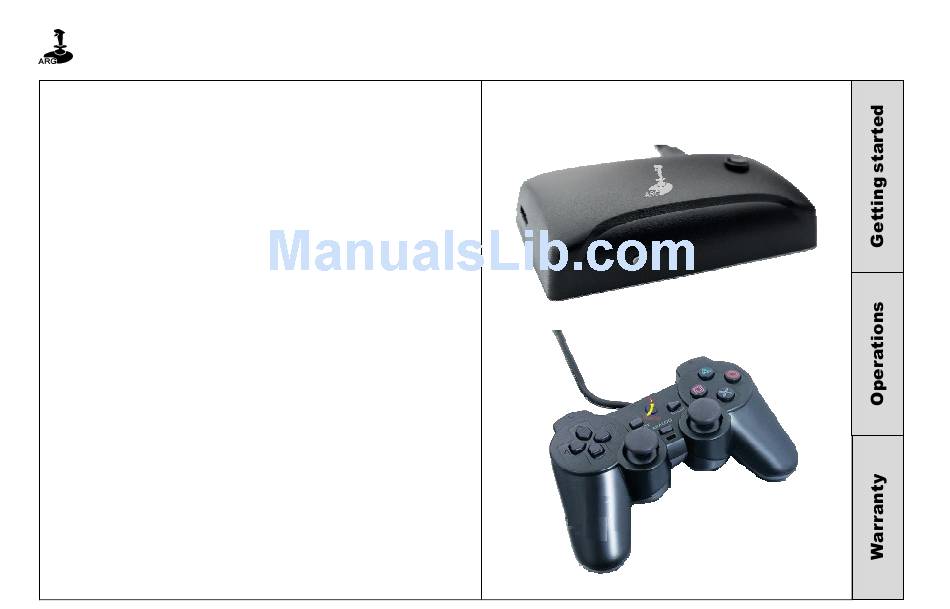

Arcade Retro Gaming
Operating Manual
Multiple Classic Computer (MCC)
MCC-TV
Model No.
Dear customer:
Thank you for purchasing Multiple Classic Computer
(MCC-TV).
For optimum performance and saftey, please read the
instructions herin carefully.
Setup and connecting information are found inside.
Please keep this manual for future reference.
If you have additional question, you may contact us via
email at:
Mail: contact@ArcadeRetroGaming.com
Web: www.MCC-home.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the MCC-TV and is the answer not in the manual?

Questions and answers

Summary of Contents for ARG MCC-TV

  • Page 1 Arcade Retro Gaming Operating Manual Multiple Classic Computer (MCC) MCC-TV Model No. Dear customer: Thank you for purchasing Multiple Classic Computer (MCC-TV). For optimum performance and saftey, please read the instructions herin carefully. Setup and connecting information are found inside.

  • Page 2: Epilepsy Warning

    EPILEPSY WARNING PLEASE READ BEFORE USING ANY VIDEO GAMES OR ALLOWING CHILDREN TO USE IT. Some people are liable to have an epileptic seizure or loss of consciousness when exposed to flashing lights or certain normal conditions of everyday life. Such persons could risk a seizure while watching televised images or while playing certain video games.

  • Page 3: General Precautions

    GENERAL PRECAUTIONS PLEASE TAKE THE FOLLOWING GENERAL PRECAUTIONS WHEN PLAYING VIDEO GAMES. Do not sit too close to the monitor. Position yourself with the linking cable fully stretch. Play video games preferably on a small screen. Do not play if you are tired or lacking sleep. Make sure that the room in which you are playing is well lit.
  • Page 4 Getting Started – Items The following items are included: USB Powersupply Micro SD-Card for MCC Multiple Classic Computer - TV CVBS-Video Cable USB Joypad USB Joypad (Option: Order separate) Page 4...
  • Page 5 Getting Started – MCC Interfaces System back System Front Power AV Interface Power LED System right System left On/Off Micro SD Card USB Joypad 1 USB Joypad 2 Page 5...
  • Page 6 Getting Started – Micro SD Card Interface Micro SD-Card for MCC Micro SD Card STEP 1: Insert the Micro SD-Card !! CAUTION !!: When you insert the Micro SD-Card into the small slot, do so at the middle of the slot and push the card in all •...
  • Page 7 Getting Started – Audio/Video Connection STEP 2: Connect the MCC-TV to the A/V Inputs Video - Yellow Audio Left - White Audio Right - Red Page 7...
  • Page 8 Getting Started – Joystick STEP 3 : Connect the Joypad Mandatory Joypad 1 Optional for 2 player Joypad 2 (not part of initial shipment) Page 8...
  • Page 9 Getting Started – Power Supply Connection STEP 4 : Power Supply connection Either mini USB charger or mini USB cable / battery pack Page 9...
  • Page 10 Operations If the Multiple Classic Computer is switched (ON) the green LED will light up. The MCC has two main different menus – Core Selection and Game / Demo / User / PREF menu The Core Selection MENU The Core Selection menu allows the user to launch the different classic computer cores. In addition from this menu the Boot menu can be accessed.
  • Page 11 Operations The Game / Demo / USER/PREF selection menu o You will see the start up screen which will look similar to this picture. o Now you can use the Joystick to browse the menu and select an item. Joypad »...
  • Page 12 Operations RE-START into Core Selection Menu: 1) To come back to the Core selection menu please press and hold the Select button at any time for more than 5 sec. This will allow you to switch between different cores. 2) To fully restart the system, press the On/Off button. This brings you as well back in the Core Selection menu. RE-START into Game Application menu: 1) To enter from every classic computer platform the Game or Application menu please press and hold the Start button for 5 sec.
  • Page 13 C64 core features MCC-TV C64 Feature list: • Commodore C64 re-implementation including 1541 disc drive • Load and Save all your favorite discs and tapes on micro SD-card • Supports C64 virtual keyboard with original key function • Easy to use interface to start games, demos with on click •...
  • Page 14 Joypad Mapping for the MCC-TV C64 core Joypad Buttons: Name Function Commodore C64 Left Joystick Left Player 1 or 2, Menu left Right Joystick Right Player 1 or 2, Menu right Joystick Up Player 1 or 2, Menu up Down...
  • Page 15 AMIGA 500 core features MCC-TV AMIGA 500 Feature list: • AMIGA 500 re-implementation • Load all your favorite ROMs and cartridges from micro SD-card • Emulates up to 10 drives • Easy to use interface to start games, demos with on click •...
  • Page 16 Joypad mapping for the MCC-TV AMIGA 500 core Joypad Buttons: Name Function AMIGA 500 Left Joystick Left Player 1 or 2, Menu left Right Joystick Right Player 1 or 2, Menu right Joystick Up Player 1 or 2, Menu up...
  • Page 17 Cloanto® is well known for his C64 Forever® and AMIGA Forever™ PC software distribution. This software can be used to add additional content (games and applications) to the MCC-TV with your PC. Please check out their Webpage for the latest products: www.c64forever.com...
  • Page 18 Add additional Games or ROMs to the MCC-TV How to add additional games or applications ? The user can add content (ROMs) to the initial game SD-card Folder structure selection of games to the MCC-TV. The SD-card contains for each classic computer a specific ROM folder which will be displayed in the game/application menu.
  • Page 19 Technical Data Multiple Classic Computer C64 Core Reconfigurable core, incl. main CPU, graphic engine, • Emulation of C64 hardware (PAL and NTSC) • sound engine and interfaces • More than 100 C64 games preloaded Integrated SDR Memory 16 MBytes • •...

  • Page 20: Limited Warranty Coverage

    ArcadeRetroGaming dealer from whom you purchased the product. ALL ACCESSORIES ARE REQUIRED WITH ANY CLAIMS TO ENABLE A FULL TEST OF THE SYSTEM. Proof of purchase is required. Detaild description of issue is helpful. FIGURE 1 Product or Part Name Parts Labor MCC-TV One year 60 Days Accessories ½ year Not applicable THIS LIMITED WARRANTY IS NON-TRANSFERABLE AND ONLY APPLIES TO THE ORIGINAL PURCHASER.
  • Page 21 Limited Warranty LIMITED WARRANTY LIMITS AND EXCLUSIONS: This Limited Warranty ONLY COVERS failures due to defect in material or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT APPLY if failures occurred due to application of products not supplied by the warranto;...
