Panasonic SC-AKX10 Operating Instructions

Operating Instructions

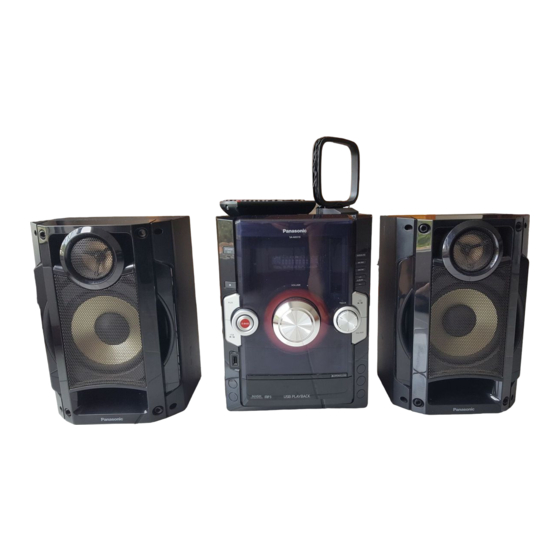

CD Stereo System
SC-AKX10
Model No.
Dear Customer
Thank you for purchasing this product.
For optimum performance and safety, please
read these instructions thoroughly before
SUPPLIED ACCESSORIES
connecting, operating or adjusting this product.
Please keep this manual for future reference.
Please check and identify the supplied accessories.
Use numbers indicated in parentheses when asking for
These operating instructions are applicable to
replacement parts. (As of January 2010)
the following system.
1 x AC mains lead 1 x FM indoor antenna
System SC-AKX10
(RSAX0002)
For the United Kingdom
Main unit SA-AKX10
(K2CZ3YY00005)
1 x AM loop antenna
Speakers SB-AKX10
For Australia
(N1DYYYY00010)
(K2CJ2DA00008)
Your unit may not look exactly the same as
illustrated.
For the United Kingdom
1 x Remote control
1 x Antenna plug adaptor
(N2QAYB000500)
(K1YZ02000013)
2 x Remote control
batteries
Note:
"EB" on the packaging indicates the United Kingdom.
Panasonic Corporation
EB
Web Site: http://panasonic.net
EU
Pursuant to at the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
RQTX1089-B
Winsbergring 15, 22525 Hamburg, Germany
Back of product
Inside of product
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
The socket outlet shall be installed near the equipment
PERFORMANCE OF PROCEDURES OTHER THAN
and easily accessible.
THOSE SPECIFIED HEREIN MAY RESULT IN
The mains plug of the power supply cord shall remain
HAZARDOUS RADIATION EXPOSURE.
readily operable.
DO NOT OPEN COVERS AND DO NOT REPAIR
To completely disconnect this apparatus from the AC
YOURSELF. REFER SERVICING TO QUALIFIED
Mains, disconnect the power supply cord plug from AC
PERSONNEL.
receptacle.
This product may receive radio interference caused
WARNING:
by mobile telephones during use. If such interference
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK is apparent, please increase separation between the
OR PRODUCT DAMAGE, product and the mobile telephone.
• DO NOT EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND THAT
NO OBJECTS FILLED WITH LIQUIDS, SUCH AS
THIS UNIT IS INTENDED FOR USE IN MODERATE
VASES, SHALL BE PLACED ON THE APPARATUS.
CLIMATES.
• USE ONLY THE RECOMMENDED ACCESSORIES.
• DO NOT REMOVE THE COVER (OR BACK); THERE
ARE NO USER SERVICEABLE PARTS INSIDE. For the United Kingdom and Republic of Ireland
REFER SERVICING TO QUALIFIED SERVICE
■ Sales and Support Information
PERSONNEL.
Customer Care Centre
• For customers within the UK: 0844 844 3852
• For customers within the Republic of Ireland:
CAUTION!
01 289 8333
• Visit our website for product information
• DO NOT INSTALL OR PLACE THIS UNIT IN A
• E-mail: customer.care@panasonic.co.uk
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS
Direct Sales at Panasonic UK
WELL VENTILATED. TO PREVENT RISK OF • For customers: 0844 844 3856
ELECTRIC SHOCK OR FIRE HAZARD DUE TO
• Order accessory and consumable items for your
OVERHEATING, ENSURE THAT CURTAINS AND product with ease and confi dence by phoning our
ANY OTHER MATERIALS DO NOT OBSTRUCT THE
Customer Care Centre Monday-Thursday 9:00am-
VENTILATION VENTS.
5:30pm, Friday 9:30am-5:30pm (Excluding public
• DO NOT OBSTRUCT THE UNIT'S VENTILATION
holidays).
OPENINGS WITH NEWSPAPERS, TABLECLOTHS,
• Or go on line through our Internet Accessory ordering
CURTAINS, AND SIMILAR ITEMS.
application at www.panasonic.co.uk.
• DO NOT PLACE SOURCES OF NAKED FLAMES,
• Most major credit and debit cards accepted.
SUCH AS LIGHTED CANDLES, ON THE UNIT.
• All enquiries transactions and distribution facilities are
• DISPOSE OF BATTERIES IN AN
provided directly by Panasonic UK Ltd.
ENVIRONMENTALLY FRIENDLY MANNER.
• It couldn't be simpler!
• Also available through our Internet is direct shopping
for a wide range of fi nished products, take a browse
on our website for further details.
Interested in purchasing an extended guarantee?
Please call 0870 240 6284 or visit our website
www.panasonic.co.uk/guarantee.
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, For business users in the European
and/or accompanying documents mean Union
that used electrical and electronic products If you wish to discard electrical and
and batteries should not be mixed with electronic equipment, please contact your
general household waste. dealer or supplier for further information.
For proper treatment, recovery and
[Information on Disposal in other
recycling of old products and used
Countries outside the European Union]
batteries, please take them to applicable
These symbols are only valid in the
collection points, in accordance with your
European Union. If you wish to discard
national legislation and the Directives
these items, please contact your local
2002/96/EC and 2006/66/EC.
authorities or dealer and ask for the
By disposing of these products and
correct method of disposal.
batteries correctly, you will help to save
valuable resources and prevent any
Note for the battery symbol (bottom
potential negative effects on human health
two symbol examples):
and the environment which could otherwise
This symbol might be used in combination
arise from inappropriate waste handling.
with a chemical symbol. In this case it
For more information about collection and
complies with the requirement set by the
recycling of old products and batteries,
Directive for the chemical involved.
please contact your local municipality, your
waste disposal service or the point of sale
where you purchased the items.
Penalties may be applicable for incorrect
disposal of this waste, in accordance with
national legislation.
Caution for AC Mains Lead
For United Kingdom Before use
Remove the connector cover.
For your safety, please read the following text carefully.
How to replace the fuse
This appliance is supplied with a moulded three pin mains
The location of the fuse differ according to the type of AC
plug for your safety and convenience.
mains plug (fi gures A and B). Confi rm the AC mains plug
A 5-ampere fuse is fi tted in this plug.
fi tted and follow the instructions below.
Should the fuse need to be replaced please ensure that
Illustrations may differ from actual AC mains plug.
the replacement fuse has a rating of 5-ampere and that it
is approved by ASTA or BSI to BS1362.
1. Open the fuse cover with a screwdriver.
Check for the ASTA mark or the BSI mark on the
body of the fuse.
Figure A
If the plug contains a removable fuse cover you must
EU
ensure that it is refi tted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until
a replacement cover is obtained.
A replacement fuse cover can be purchased from your
local dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUI T ABLE Figure B
FOR THE SOCKET OUTLET IN YOUR HOME THEN
GN En
THE FUSE SHOULD BE RE MOVED AND THE PLUG
CUT OFF AND DIS POSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRI CAL
SHOCK IF THE CUT OFF PLUG IS IN SERTED INTO
ANY 13-AMPERE SOCKET.
If a new plug is to be fi tted please observe the wiring code
as stated below.
2. Replace the fuse and close or attach the fuse cover.
If in any doubt please consult a qualifi ed electrician.
Figure A
IMPORTANT
L0110CH0
The wires in this mains lead are coloured in accor dance
with the following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured
markings identifying the terminals in your plug, proceed
as follows:
The wire which is coloured Blue must be connected to Figure B
the terminal which is marked with the letter N or col oured
Black or Blue.
The wire which is coloured Brown must be connected to
the terminal which is marked with the letter L or coloured
Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO THE
EARTH TERMINAL WHICH IS MARKED WITH THE
LETTER E, BY THE EARTH SYMBOL OR COLOURED
GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF—KEEP DRY.
SAFETY PRECAUTIONS
Placement Foreign matter
Do not let metal objects fall inside the unit. This can
Set the unit up on an even surface away from direct
sunlight, high temperatures, high humidity, and excessive cause electric shock or malfunction.
vibration. These conditions can damage the cabinet and
Do not let liquids get into the unit. This can cause
other components, thereby shortening the unit's service
electric shock or malfunction. If this occurs, immediately
life.
disconnect the unit from the power supply and contact
Place it at least 15 cm away from wall surfaces to avoid your dealer.
distortion and unwanted acoustical effects.
Do not spray insecticides onto or into the unit. They
Do not place heavy items on the unit. contain fl ammable gases which can ignite if sprayed into
the unit.
Voltage
Service
Do not use high voltage power sources. This can overload
the unit and cause a fi re. Do not attempt to repair this unit by yourself. If sound is
interrupted, indicators fail to light, smoke appears, or any
Do not use a DC power source. Check the source
other problem that is not covered in these instructions
carefully when setting the unit up on a ship or other place
occurs, disconnect the AC mains lead and contact your
where DC is used.
dealer or an authorised service centre. Electric shock
or damage to the unit can occur if the unit is repaired,
disassembled or reconstructed by unqualifi ed persons.
AC mains lead protection
Extend operating life by disconnecting the unit from the
power source if it is not to be used for a long time.
Ensure the AC mains lead is connected correctly and not
damaged. Poor connection and lead damage can cause
fi re or electric shock. Do not pull, bend, or place heavy
items on the lead.
Grasp the plug fi rmly when unplugging the lead. Pulling
the AC mains lead can cause electric shock.
Do not handle the plug with wet hands. This can cause
electric shock.
PLACEMENT OF SPEAKERS
Speakers are designed identically so that no left or right channel orientation is necessary.
You cannot take the front net off the speakers.
Use only the supplied speakers.
The combination of the main unit and speakers provide the best sound. Using other speakers
can damage the unit and sound quality will be negatively affected.
Note:
• Keep your speakers at least 10mm away from the system for proper ventilation.
• These speakers do not have magnetic shielding. Do not place them near televisions,
personal computers or other devices easily infl uenced by magnetism.
• You can damage your speakers and shorten their useful life if you play sound at high levels
over extended periods.
• Reduce the volume in the following cases to avoid damage.
– When playing distorted sound.
– When adjusting the sound quality.
Caution
• Use the speakers only with the recommended system. Failure to do so can damage the amplifi er and
speakers, and can cause fi re. Consult a qualifi ed service person if damage occurs or if a sudden change
in performance is apparent.
• Do not attach these speakers to walls or ceilings.
PREPARING THE REMOTE CONTROL
Use alkaline or manganese batteries.
Insert so the poles (+ and –) match those in the remote
control.
Aim at the remote control signal sensor 9 , avoiding
obstacles, at a maximum range of 7 m directly in front of
the unit.
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended
by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
Fuse (5 ampere)
NOTE about using a DualDisc
The digital audio content side of a DualDisc does not meet
the technical specifi cations of the Compact Disc Digital
Audio (CD-DA) format so playback may not be possible.
Fuse (5 ampere)
NOTE on MP3
• Files are treated as tracks and folders are treated as
albums.
Fuse (5 ampere) • This unit can access up to 999 tracks, 255 albums and
20 sessions.
• Disc must conform to ISO9660 level 1 or 2 (except for
extended formats).
• To play in a certain order, prefi x the folder and fi le names
with 3-digits numbers in the order you want to play them.
Limitations on MP3 play
• If you have recorded MP3 on the same disc as CD-DA,
only the format recorded in the fi rst session can be
played.
• Some MP3s may not be played due to the condition of
the disc or recording.
• Recordings will not necessarily be played in the order
you recorded them.
MAINTENANCE
If the surfaces are dirty
To clean this unit, wipe with a soft, dry cloth.
• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, read the instructions that came with the cloth carefully.
AVOID INTERFERING WITH OTHER PANASONIC
EQUIPMENT
Other Panasonic audio or video equipment may start
functioning when you operate the unit using the supplied
remote control.
You can operate this unit in another mode by setting the
remote control operating mode to "REMOTE 2".
The main unit and remote control must be set to the
same mode.
MAKING THE CONNECTIONS
Connect the AC mains lead only after all the other connections have been
made.
Antenna connections
Place the antenna where reception is best.
FM indoor antenna
Adhesive tape
AM loop antenna
Push
Note on using the remote control
Stand the antenna
• Do not mix old and new batteries.
up on its base.
• Do not use different types of batteries at the same time.
• Do not take apart or short circuit the batteries.
• Do not attempt to recharge alkaline or manganese
batteries.
• Do not use batteries if the covering has been peeled off.
• Do not heat or expose to fl ame.
• Do not leave the battery(ies) in an automobile exposed
Please refer to "CONNECTING TO
to direct sunlight for a long period of time with doors and OTHER EXTERNAL UNIT" for more
windows closed. information on the AUX connection.
• Mishandling of batteries in the remote control can cause
electrolyte leakage, which may cause a fi re.
• Remove the batteries if the remote control is not going
to be used for a long period of time. Store in a cool, dark
place.
Speaker connections
SPEAKERS
NOTE on CDs Connect the
left (L) side
• This unit can access up to 99 tracks.
in the same
• This unit can play MP3 fi les and CD-DA format audio
way
CD-R/RW that have been fi nalised.
• It may not be able to play some CD-R/RW due to the
condition of the recording.
• Do not use irregularly shaped disc.
• Do not use disc with labels and stickers that are coming
off or with adhesive exuding from under labels and
stickers.
• Do not attach extra labels or stickers on the disc. AC mains lead connection
• Do not write anything on the disc.
FOR THE UNITED KINGDOM ONLY
READ THE CAUTION FOR AC MAINS LEAD ON
NOTE on USB
THE LEFT BEFORE CONNECTION.
Compatible devices
Devices which are defi ned as USB mass storage class: Insertion of connector
Even when the connector is perfectly inserted,
• USB devices that support bulk only transfer.
• USB devices that support USB 2.0 full speed. depending on the type of inlet used, the front part of
the connector may jut out as shown in the drawing.
Supported format
However there is no problem using the unit.
• Folders are defi ned as album.
• Files are defi ned as track.
• Track must have the extension ".mp3" or ".MP3".
• CBI (Control/Bulk/Interrupt) is not supported.
Appliance inlet
• A device using NTFS fi le system is not supported.
[Only FAT 12/16/32 (File Allocation Table 12/16/32) fi le
system is supported.]
• Depending on the sector size, some fi les may not work.
• Maximum album: 255 albums
• Maximum track: 2500 tracks
• Maximum track in one album: 999 tracks
CONNECTING TO OTHER EXTERNAL UNIT
You can connect to an analogue player with a built-in
phone equaliser.
1
Press [AUX] 5 to select "AUX".
2
Play the external unit. (See the external unit's
instruction manual.)
Note:
• All peripheral components and cables are sold
separately.
• When units other than those described above are to be
connected, please consult your audio dealer.
• Sound distortion may occur when you use an adaptor
other than the one supplied.
1
Press and hold [AUX] 5 on the main unit
and [ 2 ] T until the main unit's display shows
"REMOTE 2".
2
Press and hold [OK] j and [ 2 ] T for at least 2
seconds.
To change the mode back to "REMOTE 1", repeat steps 1
and 2 by replacing [ 2 ] with [1].
FM outdoor antenna
Rear panel of
this main unit
FM outdoor antenna
(not included)
75 coaxial cable
(not included)
For the United Kingdom
Use the antenna
plug adaptor
(included).
Note:
• If the radio reception is poor, use optional
outdoor antenna. This antenna should be
installed by a competent technician.
• Disconnect the outdoor antenna when the unit
is not in use.
• Do not use the outdoor antenna during a
lightning storm.
• Disconnect the FM indoor antenna.
Click!
L
(4 )
R
(4 )
To household mains socket
For your reference
To save power when the unit is not to be used for
a long time, unplug it from the household mains
socket. You will need to reset some memory items
after plugging in the unit.
Note:
• The included AC mains lead is for use with this
unit only.
Do not use it with other equipment.
• Do not use an AC mains lead from other
equipment.
Connector
Level adjustment
You can select the sound input level of your external unit.
You are recommended to set the input level as below:
NORMAL : For connection to TV, VCR, DVD Player
HIGH : For connection to digital audio player such as
MP3 player
Press [INPUT LEVEL] l to select your desired
setting.
HIGH NORMAL
Note:
• If there is high sound distortion when level "HIGH" is
selected, the unit will automatically switch to "NORMAL".
• You can also manually select "NORMAL" if there is
sound distortion.
