Summary of Contents for XWave 9500
-
Page 1: Operating Instructions

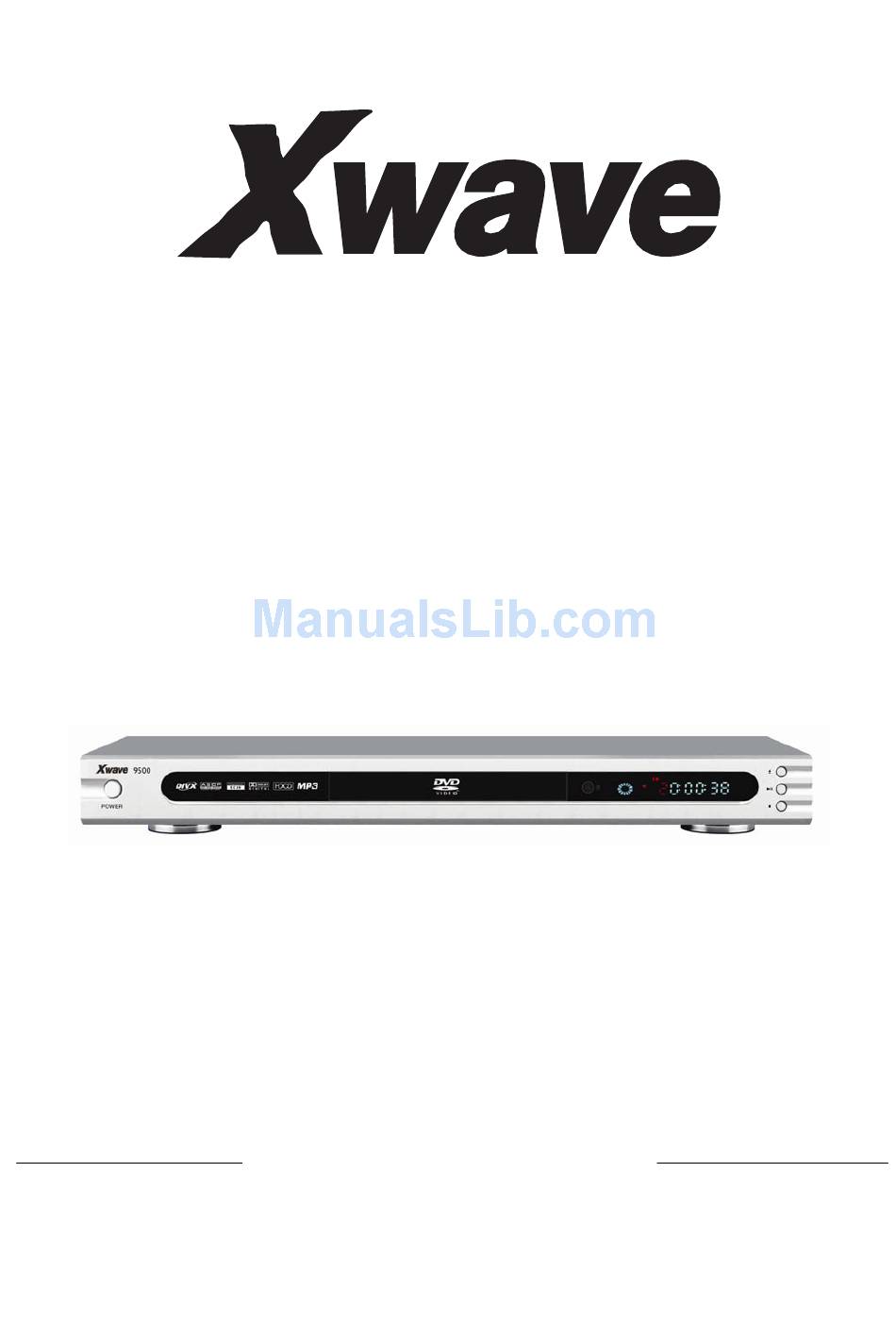

Operating Instructions MPEG-4/DVD Player Xwave 9500 Please read carefully before operation... -
Page 2: Safety Instructions
SAFETY INSTRUCTIONS ■Installation and safety precaution ■Power Cautions: do not open! Keep away from heat, humidity, dust, CAUTION and objects that vibrate Do NOT locate the unit in places of high temperature DO NOT OPEN MIND ELECTRIC SHOCK or humidity, such as areas nearing the radiator, oven, CAUTION: To avoid electric shock, do not remove the top or the bottom etc, and places dusty or close to vibrating objects. -
Page 3: Safety Information
SAFETY INFORMATION Installation Warnings Ventilation Slots and openings in the case are provided for ventilation to ensure reliable operation of the video product and to protect it from overheating. These openings must not the blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or heat register. -
Page 4: Table Of Contents
TABLE OF CONTENTS SAFETY INSTRUCTIONS…………………………………………………………………. SAFETY INFORMATION…………………………………………………………………. TABLE OF CONTENTS …………………………………………………………………… GENERAL INFORMATION ………………………………………………………………… Setup precautions………………………………………………………………………… Accessories supplied……………………………………………………………………… Cleaning discs…………………………………………………………………………….. About recycling…………………………………………………………………………….. DISC type which can be played: ……………………………………………………… How to deal with disc………………………………………………………………….. MAIN UNIT………………………………………………………………………………… Front Panel……………………………………………………………………………….. Rear Panel……………………………………………………………………………….. Remote Control………………………………………………………………………….. - Page 5 Playable discs……………………………………………………………………………….. Region Codes for DVD discs………………………………………………………………… Playing a disc……………………………………………………………………………….. Basic playback controls…………………………………………………………………….. Selecting various repeat functions…………………………………………………...……... Programming disc tracks……………………………………………………………………. Other playback features for video discs (DVD/VCD/SVCD) ……………………………… 20-23 DVD Setup Menu Options ………………………………………………………………… 24-28 Accessing the DVD setup menu………………………………………………….………… General Setup Page…………………………………………………………………………..
-
Page 6: General Information
GENERAL INFORMATION CAUTION! The machine does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel. Setup precautions Finding a suitable location – Place the set on a flat, hard and stable surface. Do not place the set on a carpet. –... -
Page 7: Disc Type Which Can Be Played
GENERAL INFORMATION DISC type which can be played: .DVD disc with the possibility of the .CD-R(W) with audio MP3 contents single and repeated recording .Video CD (VCD) .CD-R(W) with video JPEG contents .Super Video CD (SVCD) .CD-R(W) with video MPEG4 (DiVX and XviD) contents .DVD with the digital video recording .DVD with graphic files MPEG4 (DiVX and XviD) contents .Audio CD... -
Page 8: Main Unit
MAIN UNIT Front Panel: 1. POWER button-Press to switch the set on or off. 2. DISC TRAY (DOOR)-Open this door to place the disc inside 3. Remote control signal sensor Receives the signal from the REMOTE CONTROL(aim the REMOTE towards this sensor) 4. -
Page 9: Rear Panel
MAIN UNIT Rear Panel: 1. 5.1CH OUTPUT: Audio 5.1CH analog out. 2. S-VIDEO: Video of better quality picture out 3. VIDEO: Composite video out 4. Pb/Cb/Pr/Cr Y: Component allow to attain high quality video picture at out 5. COAXIAL: Digital coaxial audio out 6. -
Page 10: Remote Control
MAIN UNIT Remote Control: POWER button - Switches on/off the player. NUMERIC buttons - Used in DVD menus, audio CD and MP3 track PAUSE button- Start pause play PREVIOUS button- Skips to the previous chapter or track. PLAY button - Press to start play. BACKWARD button- Searches backward. -
Page 11: Using The Remote Control
USING THE REMOTE CONTROL A. Open the battery compartment. B. Insert two batteries type AAA, following the indications inside the compartment. C. Close the cover. D. Point the remote control directly at the remote sensor (IR) on the front panel. E. -
Page 12: System Connections
SYSTEM CONNECTIONS Basic stereo sound connections – Use RCA Audio cable. Cable with red connector from sockets “FR” in the DVD player and “Right Audio In” in TV set or stereo receiver, while white connector from sockets “FL” in DVD player and to “Left Audio In” in the TV set or stereo receiver. -
Page 13: Surround Sound Connection
SYSTEM CONNECTION Surround Sound connection: When you want to get surround sound effect, you need to connect DVD player to a multi-channel AV receiver to get this sound effect by analog connection or digital connection. Analog connection: Use 6pieces of RCA cable, connect 6 connectors of DVD player rear panel (FL, FR, SL, SR, CEN, SW) to the audio input socket of AV surround receiver. -
Page 14: System Connections
SYSTEM CONNECTIONS Cautions! (Refer to optical cable connection) Before connecting, shuck the bung dustproof from the ending of optical cable. Put in jack in amplifier and player orderly. Retain bung and cover the ending of the cable and cable many times that the cable will be took out from the socket. -
Page 15: Power
POWER Before putting the plug of power supply cable to the outlet, make sure that all connections are correct. When you are sure that you are doing correctly, then put the plug carefully to the power supply socket. Press the button POWER on the front panel of device. Then press the button POWER on the remote control. -
Page 16: Getting Started
GETTING STARTED Before you start, make sure you have completed all the necessary connections before proceeding Turning on the DVD system Press POWER. The display screen will turn on/off. Setting language preferences The language options are different depending on your country or region. It may not correspond to the illustrations shown on the user manual. - Page 17 GETTING STARTED A. Press to stop playback (if any),then press SETUP . B. Press repeatedly to select { Preference Page }. C. Use keys to highlight one of the options below, then press Audio Selects the preferred audio language for DVD playback. Subtitle Selects the preferred subtitle language for DVD playback.
- Page 18 GETTING STARTED Setting the video display mode The display mode of the DVD system, DVD and TV should match. Only then will it be possible to play a DVD on this system. Before changing the TV system, determine the color system of your TV. A.
-
Page 19: Setting The Tv
GETTING STARTED Setting the in MPEG-4 Option “MPEG-4 Subtitle setup” is designed for users who watch films in Standard MPEG-4 (Divx/ XViD). Those functions installed here used for display subtitle inscriptions effectively and properly . A. Press SETUP on the remote control. B. -
Page 20: Disc Operations
DISC OPERATIONS Playable discs Your DVD player will play: – Digital Versatile Discs (DVDs) – Video CDs (VCDs) – Super Video CDs (SVCDs) – DVD+Recordable (DVD±R), DVD+Rewritable (DVD±RW) – Audio Compact Discs (CDs) – MP3/ Windows Media™ Audio(WMA) – Picture CD (Kodak, JPEG) –... -
Page 21: Basic Playback Controls
DISC OPERATIONS Basic playback controls During playback, press to pause the playback. Press again to resume playback Selecting another track/chapter , Press or use the numeric keypad (0-9) to key in a track/chapter number. If the repeat track mode is active, press again to replay the same track/ chapter. -
Page 22: Programming Disc Tracks
DISC OPERATIONS Programming disc tracks (Not for Picture CD/MP3) You can play the contents of the disc in the order you want by programming the playing order of the tracks. A. Press PROGRAM on the remote control. The programming menu appears. B. - Page 23 DISC OPERATIONS Zooming in This option allows you to enlarge the picture on the TV screen and to pan through the enlarged picture. A. During playback, press ZOOM on the remote control repeatedly to select a different zoom factor. Use keys to move through the zoomed image.
-
Page 24: Disc Operations
DISC OPERATIONS Play a MP3/WMA Disc Mp3/WMA is the most popular standard in digital encrypting. Full their service along with the wide scale of tools what offers our equipment - equalizers, filters, regulation of double bass and high sounds make you pleasant by listening music. -
Page 25: Dvd Setup Menu Options
DVD Setup Menu Options Accessing the DVD setup menu This DVD system setup is carried out via the TV, enabling you to customize the playback function of the DVD system to suit your particular requirements. A. Press SETUP on the remote control. The setup menu appears. B. -
Page 26: Audio Setup Page
DVD Setup Menu Options Open or close the screen saver function. Screen Saver Optional settings: On/off When playing DVD / CD / VCD, after you press the STOP button, the player will remember the position of current program playing. Next time you turn on the machine, Last Memory you just need to click the PLAY button and the player will jump to the “last memory”... -
Page 27: Video Setup Page
DVD Setup Menu Options When disc tray is open, select Test tone to test 5.1 speaker. Test Tune Optional settings: On, Off When Downmix is set as LT/RT or Stereo status, adjust Dialog to increase or decrease Dialog human vocal effect. Option: from 00 to 20 This option compresses audio signal with a wide dynamic range proportionally to reduce Post DRC... -
Page 28: Preference Page
DVD Setup Menu Options Preference Page TV type Sets the TV system. Optional Settings: PAL, NTSC, Multi. Enables PBC (play Back Control) menu for VCD 2.0 or Super VCD (SVCD). Optional Settings: On, Off. Audio Sets the default audio language when playing a DVD. Sets the default subtitle language when playing a DVD. -
Page 29: Mpeg4 Subtitle Setup Page
DVD Setup Menu Options Enable password for changing parental lock. Password Mode Optional Settings: On, Off. Change the password. Default password: 136900 Password MPEG4 Subtitle Setup Page. This unit has a super winning function of MPEG4 subtitle management function: By using this function, you can do a lot of tricks and get a lot of fun when you enjoying your MPEG4 movie. Change the Subtitle Font, according to your TV size, or the length of the subtitle. -
Page 30: Software Upgrades
SOFTWARE UPGRADES Software upgrades Periodically we will issue software upgrades to enhance your user experience or player performance. To get a software and upgrade your system A. Visit our website to check the availability of the latest software upgrade. Download the software to a CD-R. when burn the CD, Do remember name the CD as MEDIATEK, without any change of the BIN file name. -
Page 31: Troubleshooting
Troubleshooting WARNING Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the system for repair. -
Page 32: Specifications
Specifications DVD/MPEG4 PLAYERLAYER/OUTPUTS/SUPPLIED ACCESSORIES Power supply: AC220-240V 50/60 Hz Power consumption: 20W Power consumption in preparation mode: 5W Mass: around 2.8 kg External dimensions 430 x 280 x 43 mm TV system: PAL 625/50, NTSC 525/60 Playable Format: DVD, MPEG-4(DivX/XviD), MP-3, WMA, CD, JPEG, VCD, SVCD. Ratio of signal and distortion (audio): more than 100dB Speed range (audio): more than 95dB Output...
