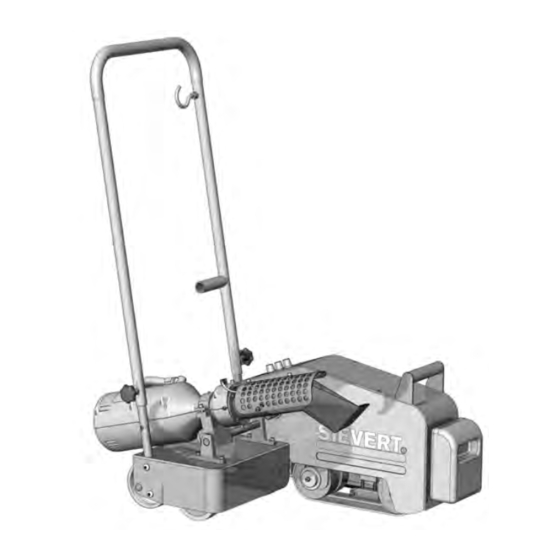

Silvert TW 5000 Operator's Manual

Hot-air automatic welding machine

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

HOT-AIR AUTOMATIC WELDING MACHINE

299001 400 V ~ / 299047 220-230 V ~

OPERATORS MANUAL ................................ 2-13

BRUKSANVISNING ..................................... 14-25

MODE D´EMPLOI ........................................ 26-37

GEBRUIKSAANWIJZING ............................ 38-49

BEDIENUNGSANLEITUNG ........................ 50-61

Table of Contents

Need help?

Do you have a question about the TW 5000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Silvert TW 5000

Page 1 HOT-AIR AUTOMATIC WELDING MACHINE 299001 400 V ~ / 299047 220-230 V ~ OPERATORS MANUAL ........ 2-13 BRUKSANVISNING ........14-25 MODE D´EMPLOI ........26-37 GEBRUIKSAANWIJZING ......38-49 BEDIENUNGSANLEITUNG ......50-61...
Page 2: Table Of Contents
▪ For personal protection, we strongly recommend ▪ Improper use of the TW 5000 hot-air welding the TW 5000 hot-air welding machine be machine could cause fire and/or an explosion connected to an RCCB (Residual Current hazard.
Page 3: Product Description
The high power fan and heating element ensure high quality welding at maximum speed. The Sievert TW 5000 has a unique four-wheel drive system, which assures wrinkle free welding for thin roofing membranes. In addition to this, the front wheels are adjustable to allow easy operation at different angles.
Page 4 General information for electric supply Selecting the right generator The TW 5000 is delivered with power cord: 3 x 2.5 mm², To make sure you choose the right generator, earth (ground) is green/yellow; the two other wires are...
Page 5: Assembly
ASSEMBLY CABLE CONNECTIONS TW 5000 MAINS Earth* Earth* Neutral 1-PH 230 V Europe L2 Phase Male Female Earth* Earth* Neutral** L1 Phase 2-PH 400 V Europe L2 Phase *Green/Yellow 220 V USA L3 Phase** **Not used MACHINE ASSEMBLY (1) Handle (2) Screws ▪...
Page 6: Operation
OPERATION DISPLAY UNIT ▪ Turn the power on at the main ▪ Adjust the temperature with the red ▪ Select between °C/meter and °F/feet switch below the control panel. Wait knob to desirable temperature. by pushing the button. The machine until you see text on the display.
Page 7 OPERATION START WELDING IMPORTANT! Always perform sample welds before welding actual production membrane to ensure proper setting of temperature, air flow and speed. See test and control of welding seam. The machine is equipped with adjustable front wheels to avoid sliding when welding at different angles. The front wheels are preset in the factory for welding in a horizontal position.
Page 8: Maintenance
MAINTENANCE CHANGING THE HEATING ELEMENT WARNING! To reduce the risk of fire or electric shock, make sure that the TW 5000 hot-air welding machine is disconnected from the supply circuit before changing the heating element. ▪ Stop the machine as described and remove the plug from designated power source.
Page 9 ▪ Store product indoors when not in use – out of the reach of children. ▪ Always transport and store the TW 5000 in the provided steel box, to prevent the machine from being damaged or exposed to improper weather conditions.
Page 10: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE CORRECTION Will not start 1. No Power 1. Check the electric supply or the fuses The desired temperature is not 1. The temperature is set to 0˚C/0˚F 1. Set correct temperature reached 2. Wrong heating element is used 2.
Page 11: Accessories & Spare Parts
ACCESSORIES & SPARE PARTS Only official and approved Sievert accessories and spare parts shall be used. ACCESSORIES Art no. 299301 Art no. 799070 Art no. 799080 Art no. 799001 Additional weight 4 kg Metal transport box Cleaning brush with Replacement heating brass wire element 400 V ~ Art no.
Page 12: Tw 5000 Overview
TW 5000 OVERVIEW Cable hook Weight 8 kg / 17.6 lb Automatic start indicator Handle adjustment knob Pressure wheel Drive indicator Nozzle heat shield Silicone welding belt Status “wait” indicator Welding nozzle Adjustable front wheels Status “ready” indicator Tube for heating element Fan release trigger Temp.
Page 13 TW 5000 OVERVIEW Start button Speed indicator Transportation wheel Fan adjustment knob Lifting handle Front wheels adjustment knob Manually run button Display unit Guide wheel adjustment bolt Speed adjustment knob Lifting handle Guide wheel Power indicator Power cord Main switch on/off...
