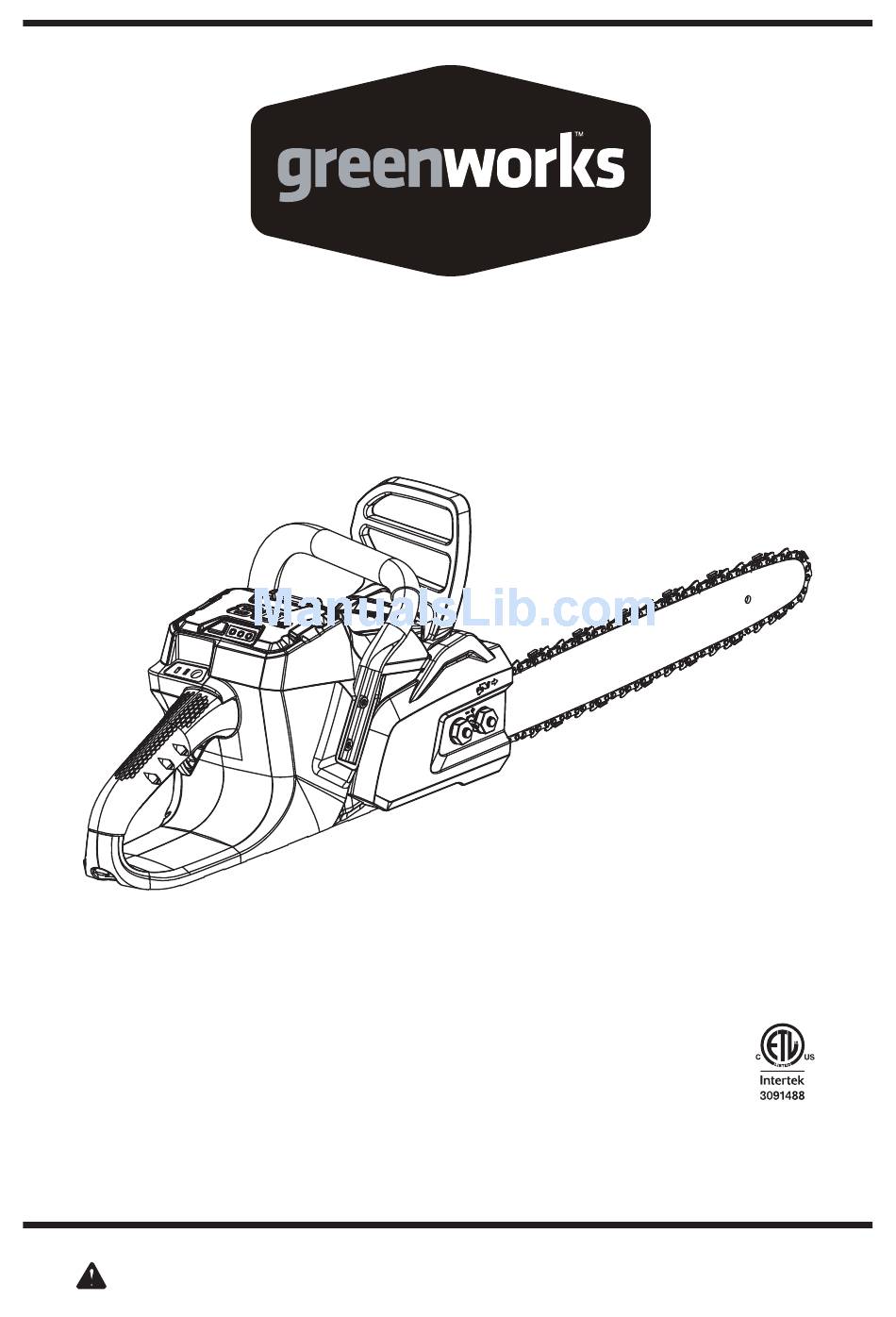

80V CORDLESS BRUSHLESS CHAINSAW
GCS80420
2000002
Some Greenworks Lithium-Ion products are sold with
or without battery and charger.
To order: Battery (2Ah 80V Battery 2901302)
Charger (Model # 2901402)
Owner's Manual
TOLL-FREE HELPLINE: 1-888-90WORKS
(888.909.6757)
www.greenworkstools.com
Read all safety rules and instructions carefully before operating this tool.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GreenWorks GCS80420
Summary of Contents for GreenWorks GCS80420
- Page 1 80V CORDLESS BRUSHLESS CHAINSAW GCS80420 2000002 Some Greenworks Lithium-Ion products are sold with or without battery and charger. To order: Battery (2Ah 80V Battery 2901302) Charger (Model # 2901402) Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) www.greenworkstools.com Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................1 ......................1 Safety information......................2-7 Symbols ..........................8-9 Know your chain saw ......................10 Assembly ..........................11 Operation ........................12-26 Maintenance .........................27-36 Environmentally safe battery disposal ................37 Troubleshooting .........................38 Warranty ..........................39 Exploded View ........................40 Parts List..........................PRODUCT SPECIFICATIONS 80V CORDLESS BRUSHLESS CHAINSAW Type.................. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS W A R N I N G Read all safety warnings designated by the symbol and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or injury. READ ALL INSTRUCTIONS. The term “power tool” in all of the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 4 IMPORTANT SAFETY INSTRUCTIONS F. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. G. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 5 IMPORTANT SAFETY INSTRUCTIONS I. Carry the chain saw by the front handle with the chain saw switched off and away from your of the chain saw will reduce the likelihood of accidental contact with the moving saw chain. G. Follow instructions for lubricating, chain tensioning, and changing accessories.Improperly tensioned or lubricated chain may either break or increase the chance for kickback.
- Page 6 IMPORTANT SAFETY INSTRUCTIONS 6. Service parts. This will ensure that the safety of the power tool is maintained. W A R N I N G ( P r o p o s i t i o n 6 5 ) Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm.
-
Page 7: Safety Information
SAFETY INFORMATION KICKBACK (See Figure 1-2) W A R N I N G Kickback may occur when the moving chain contacts an object at the upper portion of the tip of the guide bar or when the wood closes in and pinches the saw chain in the cut. Contact at the upper portion of the tip of the guide bar can cause the chain to dig into the object and stop the chain for an instant. -
Page 8: Safety Information
SAFETY INFORMATION • Push and Pull - This reaction force is always opposite to the direction the chain is moving where wood contact is made. Thus, the operator must be ready to control the PULL when cutting on the bottom edge of the bar, and PUSH when cutting along the top edge. (See Figure 3) PUSH PULL... -
Page 9: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOLS DESIGNATION EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) -
Page 10: Symbols
SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. -
Page 11: Know Your Chain Saw
KNOW YOUR CHAIN SAW Read this operator's manual and safety rules before operating your chain saw. Compare the illustration in Figure 5 to your chain saw in order to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Scabbard Front hand guard / Chain Brake On/Off Switch... -
Page 12: Assembly
ASSEMBLY INSTRUCTIONS UNPACKING This product has been shipped completely assembled. • Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included. • Inspect the product carefully to make sure no breakage or damage occurred during shipping. •... - Page 13 OPERATING YOUR CHAIN SAW W A R N I N G Do not allow familiarity with this product to make you careless. Remember that a careless W A R N I N G Always wear safety goggles or safety glasses with side shields that comply with ANSI Z87.1, when operating power tools.
- Page 14 OPERATING YOUR CHAIN SAW ADDING BAR AND CHAIN LUBRICANT (See Figure 6) Use Bar and Chain Lubricant. It is designed for chains and chain oilers, and is formulated to perform over a wide temperature range with no dilution required. NOTE: Chain saw comes from the factory with no bar and chain oil added. Level should also be checked after •...
- Page 15 OPERATING YOUR CHAIN SAW BATTERY PACK (See Figure 7) I M P O R T A N T time, place the battery pack in the battery charger and charge it fully. Be sure to read all safety precautions, and follow the instructions in the section entitled Charging Procedure. With regular use, the battery will require shorter charging times.
-
Page 16: Operation
OPERATING YOUR CHAIN SAW STARTING AND STOPPING THE CHAIN SAW (See Figure 8) W A R N I N G Keep body to the left of the chain line. Never straddle the saw or chain, or lean over past the chain line. - Page 17 OPERATING YOUR CHAIN SAW OPERATING THE CHAIN BRAKE (See Figure 9 ) Check the operating condition of the chain brake prior to each use. • Engage the chain brake by rotating your left wrist towards the guard, allowing the back of your hand to engage the brake while the chain is rotating.
- Page 18 OPERATING YOUR CHAIN SAW PREPARING FOR CUTTING (See Figure 10) PROPER GRIP ON HANDLES See General Safety Rules for appropriate safety equipment. • Wear non-slip gloves for maximum grip and protection. • right hand on the rear handle so that your body is to the left of the chain line. •...
- Page 19 OPERATING YOUR CHAIN SAW (See Figure 11) PROPER CUTTING STANCE • Balance your weight with both feet on solid ground. • Keep left arm with elbow locked in a “straight arm” position to withstand any kickback force. • Keep your body to the left of the chain line. •...
- Page 20 OPERATING YOUR CHAIN SAW BASIC OPERATING/CUTTING PROCEDURES Practice cutting a few small logs using the following technique to get the “feel” of using the saw before you begin a major sawing operation. • Take the proper stance in front of the wood with the saw idling. •...
- Page 21 OPERATING YOUR CHAIN SAW FELLING TREES HAZARDOUS CONDITIONS W A R N I N G Do not fell trees during periods of high wind or heavy precipitation. Wait until the hazardous weather has ended. When felling a tree, it is important that you heed the following warnings to prevent possible serious injury.
- Page 22 OPERATING YOUR CHAIN SAW (See Figure 13-16) PROPER PROCEDURE FOR TREE FELLING • Felling a tree — When bucking and felling operations are being performed by two or more persons, at the same time, the felling operation should be separated from the bucking operation by a distance of at least twice the height of the tree being felled.
- Page 23 OPERATING YOUR CHAIN SAW NOTE: Never cut through to the notch. Always leave a band of wood between the notch and back cut (ap- proximately 2" (5 cm) or 1/10 the diameter of the tree). This is called “hinge” or “hingewood.” It controls the fall of the tree and prevents slipping or twisting or shoot back of the tree off the stump.
- Page 24 OPERATING YOUR CHAIN SAW (See Figure 17) REMOVING BUTTRESS ROOTS A buttress root is a large root extending from the trunk of the tree above the ground. Remove vertical cut. Remove the resulting loose section from the work area. Follow the correct tree felling procedure as stated in Proper Procedure For Tree Felling after you have removed the large buttress roots.
- Page 25 OPERATING YOUR CHAIN SAW (See Figure 19) BUCKING WITH A WEDGE If the wood diameter is large enough for you to insert a soft bucking wedge without touching the chain, you should use the wedge to hold the cut open to prevent pinching. (See Figure 20) BUCKING LOGS UNDER STRESS side.
- Page 26 OPERATING YOUR CHAIN SAW (See Figure 23) LIMBING Limbing is removing branches from a fallen tree. • footing is secure and your weight is distributed evenly on both feet. • Leave the larger support limbs under the tree to keep the tree off the ground while cutting. •...
- Page 27 OPERATING YOUR CHAIN SAW (See Figure 25) CUTTING SPRINGPOLES A springpole is any log, branch, rooted stump, or sapling which is bent under tension by other wood so that it springs back if the wood holding it is cut or removed. On a fallen tree, a rooted stump has a high potential of springing back to the upright position during the bucking cut to separate the log from the stump.
-
Page 28: Maintenance
MAINTENANCE W A R N I N G When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. W A R N I N G Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust. - Page 29 MAINTENANCE C A U T I O N Always wear gloves when handling the bar and chain; these components are sharp and may contain burrs. • Remove the battery from the chain saw. • Remove the supplied wrench from the rear handle. •...
- Page 30 MAINTENANCE Note: Make certain of direction of the chain. • Position the chain so there is a loop at the back of the bar. • Hold the chain in position on the bar and place the loop around the sprocket. Bar Groove •...
- Page 31 MAINTENANCE ADJUSTING THE CHAIN TENSION (see figure 32-34) wrench WARNING Never touch or adjust the chain while the motor is running. The saw chain is very sharp. Always wear protective gloves when performing maintenance on the chain. • Loosen the chain cover lock nuts with the supplied wrench.
- Page 32 MAINTENANCE CAUTION A chain tensioned while warm may be too tight upon cooling. Check the “cold tension” before next use. Never tension a warm chain before storing as chains shrink when cool. This can damage the chain, bar and saw. CHAIN MAINTENANCE (see figure 35) Use only a low-kickback chain on this saw.
- Page 33 MAINTENANCE (See Figure 36-39) SHARPENING THE CUTTERS obtained only when all cutters are uniform. C A U T I O N Make sure the battery is removed from the chain saw before you work on the saw. W A R N I N G The saw chain is very sharp.
- Page 34 MAINTENANCE PARTS OF A CUTTER Cutting Corner Side Plate Top Plate Depth Gauge Rivet Hole Heel Gullet Fig. 36 Fig. 37 Left Hand Cutters Right Hand Cutters Fig. 38 Fig. 39 (See Figure 40) TOP PLATE FILING ANGLE • CORRECT 30° – file holders are marked with guide marks to align file properly to produce correct top plate angle.
- Page 35 MAINTENANCE (See Figure 41) SIDE PLATE ANGLE • • HOOK – “Grabs” and dulls quickly; increases the potential of KICKBACK. Results from using a • BACKWARD SLOPE – Needs too much feed pressure; causes excessive wear to the bar and (See Figure 42-44) SIDE PLATE ANGLE •...
- Page 36 MAINTENANCE (See Figure 45) MAINTAINING THE GUIDE BAR Every week of use, reverse the guide bar on the saw to distribute the wear for maximum bar life. The bar should be cleaned every day of use and checked for wear and damage. Feathering or burring of the bar rails is a normal process of bar wear.
-
Page 37: Maintenance
MAINTENANCE Quick reference of Chain&Bar assembly (Chain Tension) wrench 1. To remove the chain cover, loosen 3. Now totally remove the chain cover 2. Then loosen the adjustment screw 2 the two chain cover lock nuts by lock nuts and remove the chain cover. or 3 turns. -
Page 38: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL Li-Ion The batteries used in this chain saw's battery pack contain the following toxic and corrosive mate- rial: LITHIUM-ION. W A R N I N G of the environment. Before disposing of damaged or worn out Lithium-Ion battery packs, contact your local waste disposal agency or the local Environmental Protection Agency for information and specific instructions. -
Page 39: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Loosen the chain if it is too tight. Bar and chain Check chain tension for Refer to Adjusting the Chain Tension running hot and overtightened condition. earlier in this manual. smoking. Chain oil tank empty. Check oil tank. -
Page 40: Warranty
(4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for... -
Page 41: Exploded View
EXPLODED VIEW Item Part No. Description 333031063 Wrench 311001075 unit assembly 311011075 battery botton 311021075 top cover assembly 311031075 oil cap assembly 311041075 front hand guard assembly 311051075 front handle assembly 311061075 side cover assembly 311011010 80V charger 311011009 80V 2A battery 31101406-1 chain bar 322041075... - Page 42 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 01 (10-15-14)
