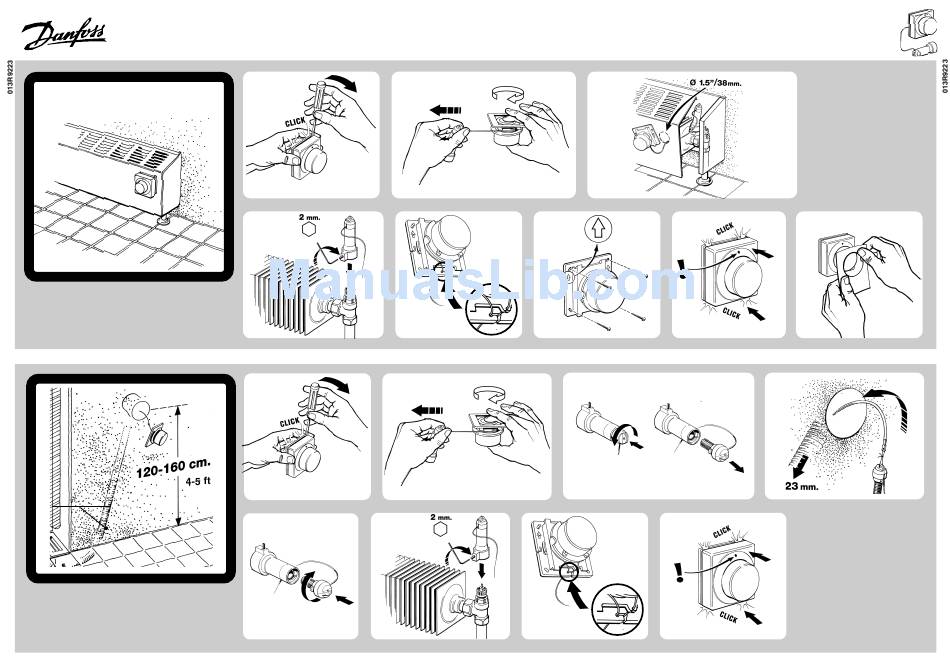

Mounting on convector
with Danfoss RA 2000 valve
Radius min.10"
Installing operator through
conduit
with Danfoss RA 2000 valve
INSTRUCTIONS

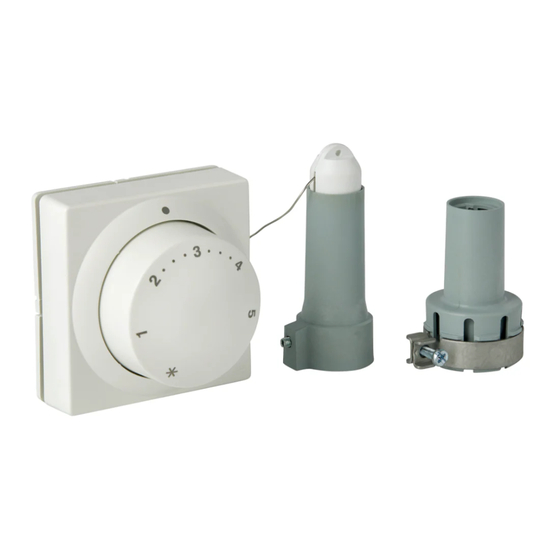

Operator with combined remote mounted sensor and dial
