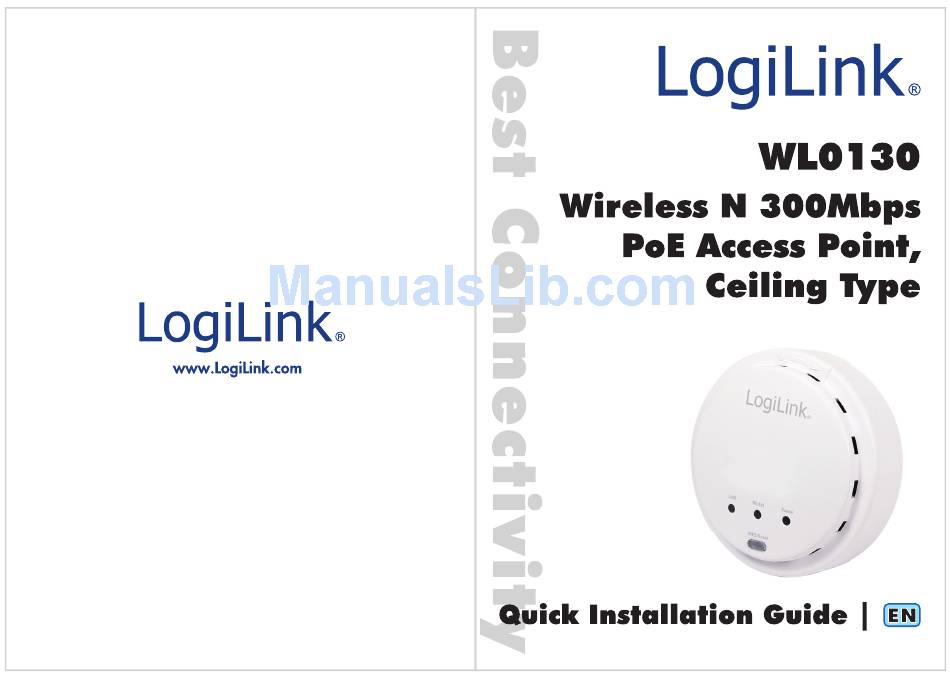

Summary of Contents for LogiLink WL0130
-
Page 2: Safety Instructions
In any case, liability for loss of data is limited to the effort that is necessary to restore from existing backup copies. Congratulations to the Purchase of LogiLink WL0130! Please read the Manual and Safety Instructions before using the product for the first time. Otherwise damage can be the result. -
Page 3: Specification
2.0 Introduction 2.1 Specification Comply with IEEE 802.11n/g/b standards Supports high data rate up to 300Mbps Comply with IEEE 802.3af Powered Device (PD) standard High transmit power with good receive sensitivity Supports point-to-point and point-to-multi point bridge function ... - Page 4 3. Connect the A/C power adapter to the wall socket, and then connect it to the ‘Power’ socket of the access point. Note: WL0130 is built in with POE feature on the Ethernet port. You can connect via RJ45 cable easily to the POE switch what you have.
-
Page 5: Connecting To Web Management Interface
2. Select ‘Use the following IP address’, then input the following settings in respective field: IP Address: 192.168.2.2 Subnet Mask: 255.255.255.0 Click ‘OK’ when finish. 3.3 Connecting to Web Management Interface All functions and settings of this access point must be configured via web management interface. - Page 6 Note: If you can’t see the web management interface, and you’re being prompted to input user name and password again, it means you didn’t input username and password correctly. Please retype user name and password again. If you’re certain about the user name and password you type are correct, please check to ‘4-2 Troubleshooting’...
- Page 7 Here you can change the “MAIN ESSID” to what you wanted and later you can connect to network with this ESSID, default ESSID is LogiLink. 3.4.2 Setup Wireless Security You can select “WEP” or “WPA pre-share key” encryption for the wireless network.
- Page 8 WPA Pre-shared key is the safest encryption method currently, and it’s recommended to use this encryption method to ensure the safety of your data. When you select ‘WPA pre-shared key’ as encryption type, the following messages will be displayed: After you finish with setting, please click ‘Apply’, and the following message will be displayed: When you see this message, the settings you made is successfully save.
- Page 9 2direct GmbH ensures, that the product is conformed to the basic standards and directives. These standards can be requested online on www.logilink.com. All trademarks and registered brands are the property of their respective owners. - 8 -...
