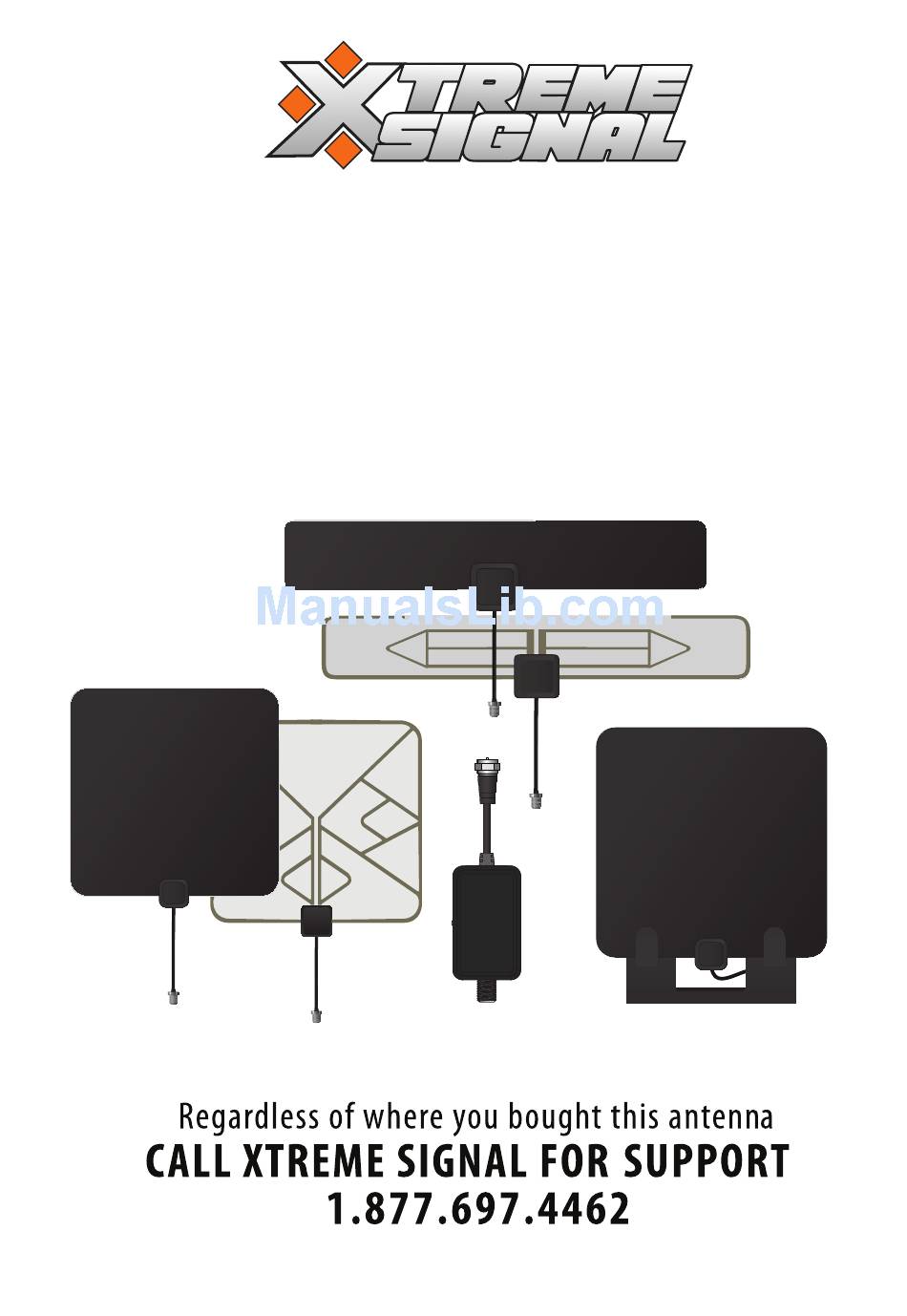

- Page 1 HD-BLADE INDOOR TV ANTENNAS Product Manual for the HD-BLADE Antenna Series HDBLADESTAND HDBLADE100 HDBLADE100C HDBLADE100VA HDBLADE100VCA HDBLADE100A HDBLADE100CA HDBLADE100V HDBLADE100VC HDXAMP100 ANT. www.xtremesignal.com by Solid Signal Tel 1.877.697.4462...
-
Page 2: Installation And Setup
INSTALLATION AND SETUP Position the Antenna: The HD-BLADE can be hung on a wall, Use whatever position gets you the most channels. Attach a Coax Cable: Connect a length of coax cable by screwing the connector onto the HD-BLADES connector. Connect cable to TV Connect the other end of the cable to the... - Page 3 AMPLIFIER SETUP ONLY APPLIES TO AMPLIFIED MODELS: HDABLADE100A, HDBLADE100CA, HDBLADE100VA, & HDBLADE100VCA Installation of the Ampli er Be sure the cable coming out of the section labeled ANT. goes directly to the HD-BLADE. Ampli ers make up for signal loss after they’re inserted.
- Page 4 180 DAY LIMITED WARRANTY This Xtreme Signal product is hereby warrantied against defects arising from faults in materials or workmanship for a period of 180 (one hundred and eighty) days starting from the original date of purchase. Neither Solid Signal, Xtreme Signal, nor Signal Group LLC will honor a warranty claim unless accompanied by original proof of purchase.
