A4 V2
QUICK START
Rel 1.01

Advertisement

loading
Need help?

Need help?

Do you have a question about the A4 V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for 3ntr A4 V2

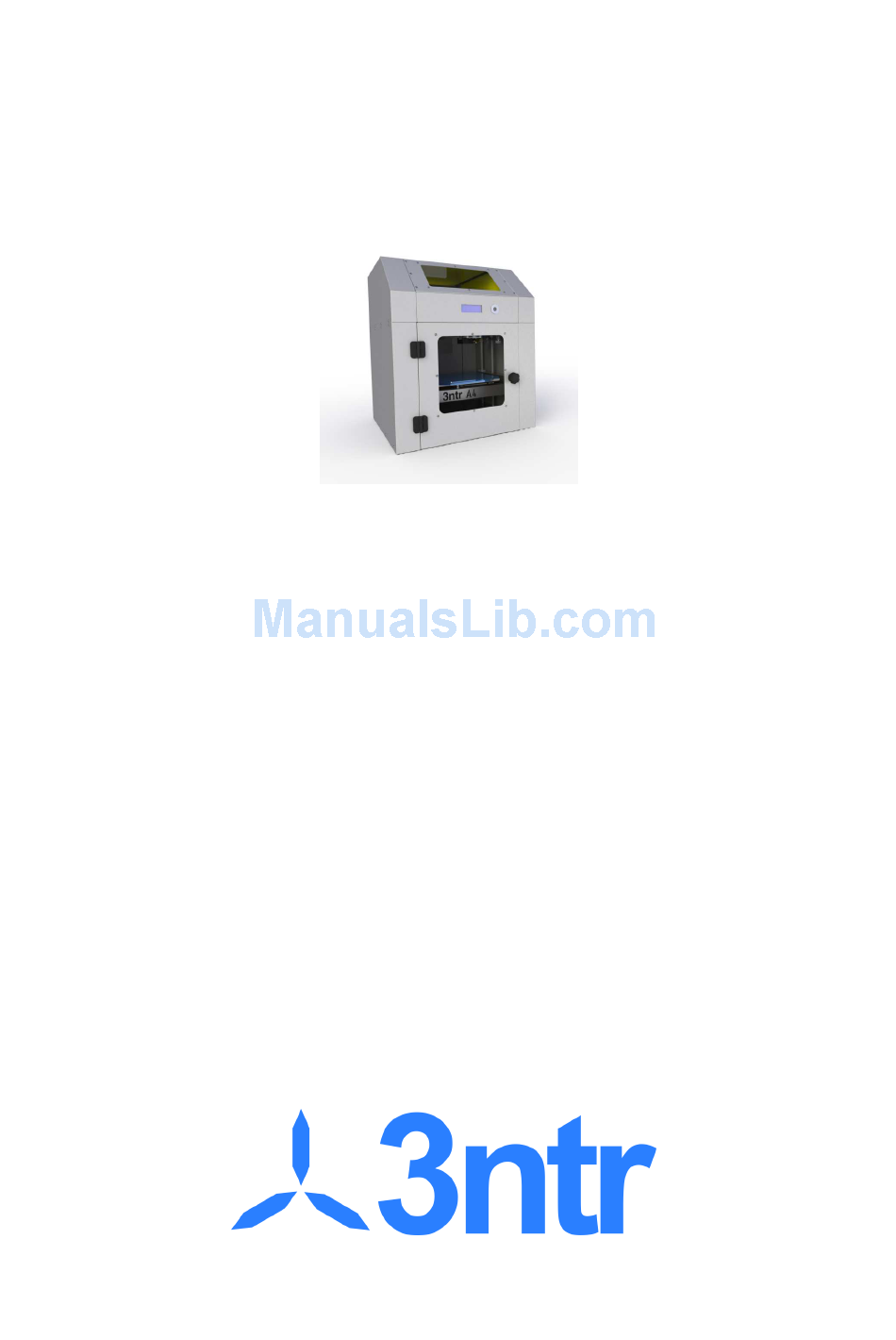

  • Page 1 A4 V2 QUICK START Rel 1.01...
  • Page 2 Preface Congratulations for your purchase! Your printer has been carefully engineered to bring you years of trouble-free work: this manual will help you the get to know everything about its use and maintenance.
  • Page 3: Important Safety Advice

    Important safety advice Your printer has been built with user safety as main concern, yet it must NOT be used by individuals with reduced mental or physical abilities. This printer is not a toy, and printing area must be kept locked in presence of children or people with serious mental problems.
  • Page 4 Unpacking We packaged your printer with the best solution, to withstand with rough handling usually involved with international freight. Therefore, despite our efforts, if you are being delivered a damaged package you should always refuse delivery or put your remarks on the delivery bill. Package usually consist of: Printer •...
  • Page 5: Installation

    Installation You need: 1. A sturdy table or desk You need a solid surface that will be strong enough to support the printer and withstand with the vibration involved with the printing process. 2. 100-220 V AC wall socket 3. your PC (optional, as you can print remotely via SD card or print spoolers, BUT at least at the beginning you should use a PC) Procedure 1.
  • Page 6: Using The Printer With Your Computer

    Using the printer with your computer Installing printer software drivers Printer drivers are needed to let your USB port talk to printer USB port. Newest operating systems will load and configure the drivers for you: if you are using older systems or your installation is faulty, the drivers for Windows/Linux/Mac PCs are available here: http://www.ftdichip.com/Drivers/VCP.htm Please refer to above web site for installation instructions on your specific PC...
  • Page 7: Host Software

    Host software The host software can be used to perform all required duties on printer, as manual axes movement, heaters performance analysis and setup, placement of parts on printer plate, slicing and running printing jobs. We recommend Repetier Host, being the most complete yet easy to use solution to accomplish above activities, and the fastest way to interface with Repetier Firmware running inside our printer.
  • Page 8 Host software setup To access Repetier host configuration menus you simply press click on the upper right “gears” icon. You will reach the following menus (shown in English, but you can choose among many languages): Fig. 1: Connection parameters Port: leave the port you use to connect to printer Baud rate: set it to 250000 Other parameter must be left unchanged at default values (see fig.1).
  • Page 9 Fig. 2: Printer parameters We recommend to set printer defaults as from above figure. You may want to un-check the last three check boxes if you are using printer in a continuous production setting (avoiding losing time when machine cools down between print jobs).
  • Page 10 Fig. 3: Extruder control Above values must be entered precisely as from above screen capture: feel free to choose names and colors, but please be sure to enter correct numerical data !
  • Page 11 Fig. 4: Printer shape Be sure to copy EXACTLY above values, especially the Home X/Y/Z settings: failing to do so you could not be able to use your printer! Now if you turn on your printer with the leftmost ON/OFF icon, you will be able to start playing!
  • Page 12 Filament The filament is the most important factor of the printing process, therefore you want it to be: • Precise: real diameter (2,85mm or 2,95mm) must be as constant as possible, and within the usual tolerance (+/- 0,1mm) or stricter (+/- 0,05). Remember: use a good caliper (nowadays, there are good digital calipers that are quite cheap) to measure the diameter to pass to the slicing app.
  • Page 13 Feeding filament to the printer Fig. 5: Rear printer side Reach the printer rear side, place your spool on the spool holder rod. Fig. 6: Pointed filament end With a pencil sharpener or simply using scissors, make a conical point to the filament end.
  • Page 14 Fig. 7: Filament feeders, the one in foreground is locked open (disengaged) Grab the feed lock handle of the selected extruder, pull it up and lock it open. Feed the filament thru the bottom hole in the filament feeder, gently push it inside mechanism and clear plastic tubing, until it reaches the extruder assembly and you can't push t anymore.
  • Page 15 Loading filament (during print) When the filament spool is depleted, the loading of a new one is a quite easy process: 1. Prepare the new spool to be loaded, be sure it is the same polymer you are currently using 2.
  • Page 16 Changing filament type When dealing with different polymers, procedure is a bit different. Start with a “cold” extruder situation: turn on heating for desired extruder, at about 60-70% of the currently loaded polymer working temperature. Release the feed mechanism and lock it open. Start pulling (not too strong to break it...
  • Page 17 Be sure you are running the latest firmware release It is always better to have your machine running with latest firmware: you get better performances and better prints! To assess wich firmware is loaded on your printer, use Fig 9: Be sure to have your log ON ! Repetier Host (or any other printer management app, that can show printer return codes) : 1.
  • Page 18 Firmware upgrade (Windows PCs only, sorry!) You should download the upload tool first: http://3ntr.eu/wp-content/uploads/2014/08/XLoader.zip The Xloader tool is © Geir Lunde: unzip it in any place you prefer on your HD, then download the latest firmware for your printer from this page http://3ntr.eu/?page_id=182...
