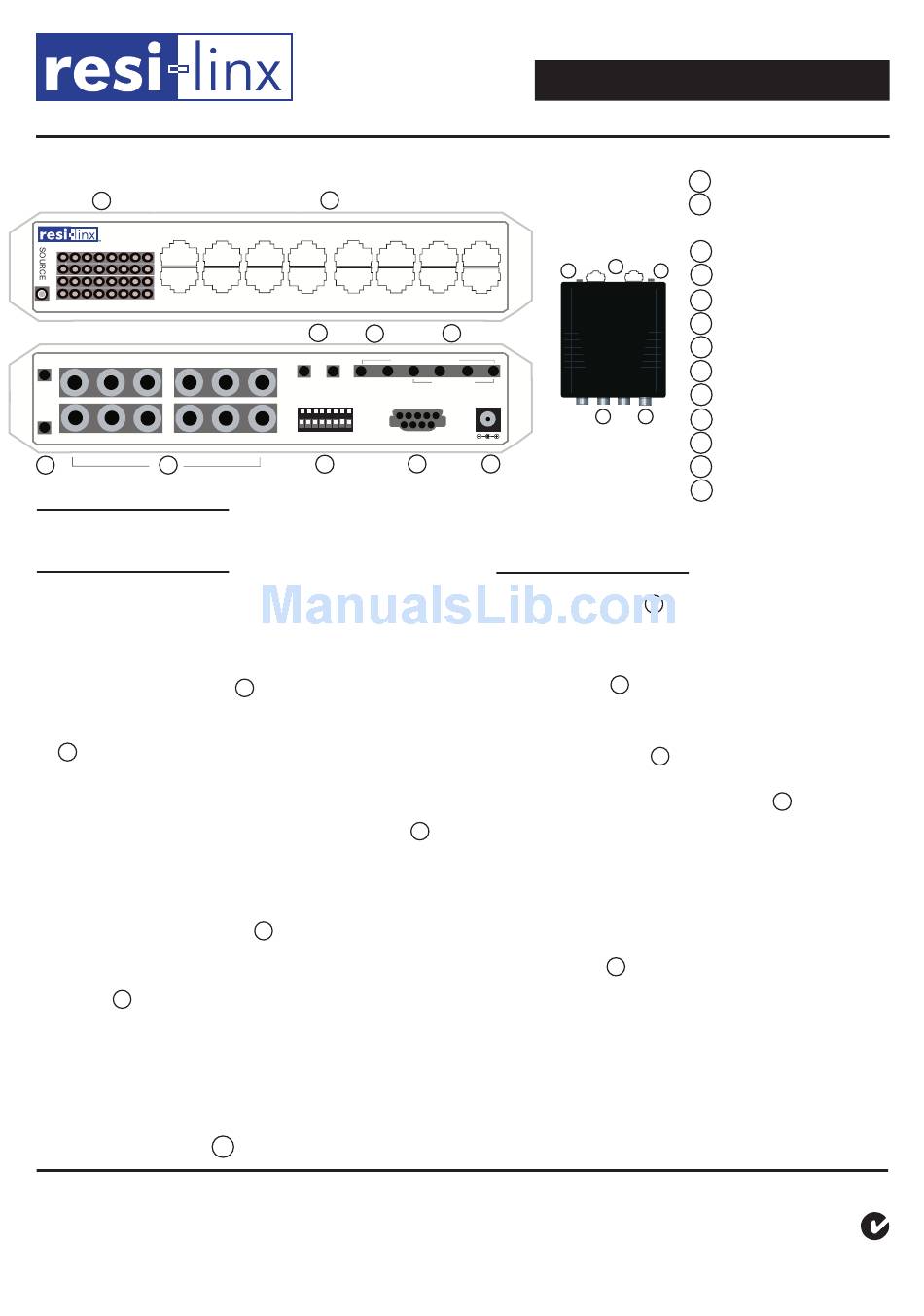

Cable Requirements

4 pair twisted cable

Hardware Connection

1. Ensure all power to equipment is switched off prior to
installation.
RL-BV2100
2. Connect Component Video Lead (red, green, blue)
from RCA Video output 1 A of Transmitter to the
Component terminals of AV Source.
3. Connect 3.5mm Audio Cable from Audio Terminals 1
B of Transmitter to the Analogue and/or Digital Audio
Terminals of the AV Source.
4. Repeat steps 2 - 3 for Source 2 - 4 inputs.
5. Connect RL-IR700/800* IR emitter to Common Output D
of Transmitter. Place the other end within 25mm of the IR
Receiver on the AV Source (depending on environmental
conditions).
6. For Discrete IR control, connect RL-IR700/800 IR Emitter
from Discrete Output 1 or 2
head in front of IR Receiver of the desired device using
RL-ACC160* IR Emitter Shield. Choose which Discrete
IR source is to be controlled in each zone. Select via Dip
Switch E Discrete Emitter Output Port 1 or 2 and the
corresponding zone A, B etc.
7. Connect 2 x RJ45 sockets of Transmitter (OUTPUT IA
and OUTPUT IIA) to corresponding INPUT I and INPUT
II Receiver in zone A via 4 pair twisted cable. Repeat for
zones B - H. (eg. OUTPUT IB and II B to zone B INPUT I
and II)
8. Connect RS232 Cable
WARRANTY
Vcomm Pty Ltd states that the warrant that the customer can rely on is that
provided by the manufacturer. In the event of any warranty claim please
contact us and we will forward it to the manufacturer. The manufacturer will
then determine the extent of their liability. This expressly negates, to the
extent possible by Australian law, any warranty reliance on Vcomm Pty Ltd.
®
'linx-AV' 4 x 8 Component Video/Audio Matrix Switch
Transmitter
H
C E G A
D F H B
II
OUTPUT
B
C
Pb/Cb Pr/Cr
1 2
A3 A4
IR SELECT
1
2
A B C D E F G H
Pb/Cb Pr/Cr
E
C and place emitter
F to control system.
AV Distribution Range
C E G
L
D F H
I
OUTPUT
D
IR REPEATERS
COMMON
12V DC
INPUT
RS232
G
F
RL-BV260B
9. Connect Component Video lead (red, green, blue) from
RCA Video output
RCA Video input on the Component Device (TV, etc).
10. Connect Analogue Audio Lead (green) from Analogue
Audio output M of Receiver to corresponding Audio
Input of the Component Device (TV, etc).
11. If required connect Digital Audio Lead (orange) from
Digital Audio Output K of Receiver to corresponding
Audio Input of the Component Device
12. Connect RL-BV500* IR Target to Input
Flat Target can be easily mounted (either directly using
adhesive backing, or by using RL-ACC150* Target
Mount) to the desired location, anywhere within the line
of sight of remote controls.
13. Repeat steps 9 - 12 for connection of zones B - H.
14. Connect supplied 12V DC Switch Mode Power Pack to
Power Input G on Transmitter.
15. Once installation is complete, switch on power to all
equipment. Indicator LED's will illuminate to show which
Source 1 - 4 is selected in each of the Zones A - H.
RL-BV2100
A RCA Video Output
B Digital + Analogue Audio
Input A1 - A4
Receiver
C Discrete IR Emitter Outputs
H
M
D Common IR Emitter Outputs
E Discrete IR Select Switch
RL-BV260B
F RS232 Output
G 12V DC Power Input
H RJ45 Socket
I Indicator LED's
J RCA Video Output
J K
K RCA Digital Audio Output
L IR Target Input
M Analogue Audio Output
