Summary of Contents for Cload WP-8

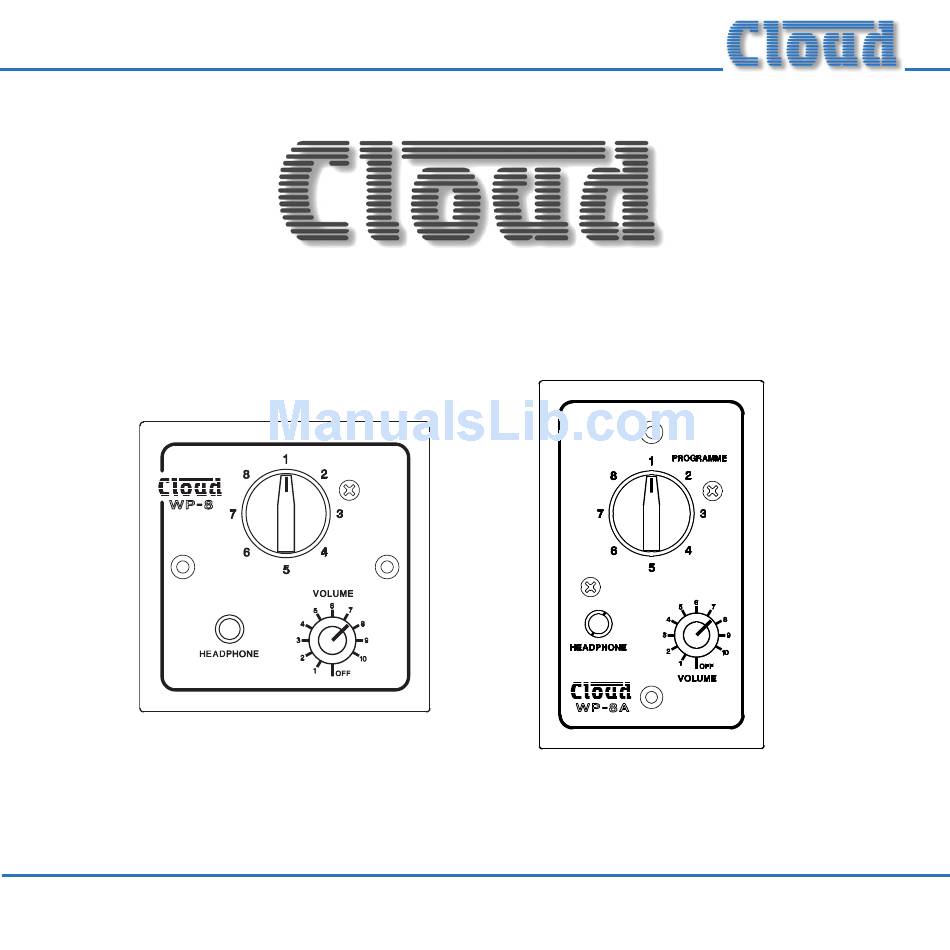

- Page 1 WP-8 and WP-8A Headphone Stations Installation Guide...
- Page 2 WP-8 Installation Guide...
-
Page 3: Table Of Contents
Contents Safety Information ............4 Introduction ..............4 What’s in the Box ..................5 Top view ..................... 6 Rear view ....................7 Installation ..............8 Mechanical ....................8 Connections ....................8 Operation ..............15 WP-8 Installation Guide... -
Page 4: Safety Information
Safety Information The Cloud WP-8 contains no active electronics and thus requires no AC or DC voltage supply. Safety precautions are therefore minimal. Introduction The WP-8, part of the Cloud Headphone Distribution System, is a remote headphone station that connects to an output of either a CAM-16 Audio Distribution Matrix or a CAS-16 Audio Distribution Sub-Station, using standard CAT-5 cable. -
Page 5: What's In The Box
Please check the box for damage before opening. If there is damage, please contact your Cloud agent and the shippers. The box should contain the following items: • WP-8 or WP-8A Headphone Station • 2 qty M3.5 x 20 panel fixing screws* •... -
Page 6: Top View
Top view 1. Headphone socket 2. Music source selection switch 3. Headphone volume control WP-8 Installation Guide... -
Page 7: Rear View
Rear view 4. IDC connector block for hard-wiring 5. Screw-terminal block for external amplifier/speaker connection WP-8 Installation Guide... -
Page 8: Installation
Installation Mechanical The Cloud WP-8 is designed to be wall mounted. It is the same physical size as a UK-style single-gang electrical plate and can be flush-mounted in the back box provided, or in a standard surface box with a minimum depth of 25 mm. - Page 9 CAT-5 cable to the back box; a cable tie with an adhesive cable tie base will normally be adequate. Stick the base to the inside of the box if there is room, or to the rear of the box if it is of the cavity wall fixing type. WP-8 Installation Guide...
- Page 10 Connecting an external amplifier and/or speakers The WP-8 is provided with additional outputs, which can be used to drive external low-power loudspeakers directly, active loudspeakers or the line inputs of an external amplifier. Both stereo and mono configurations are possible.
- Page 11 The permanent outputs are continuously active. The WP-8’s external outputs can provide 150 mW of power in stereo or 300 mW in mono, into 8 ohm speakers. (The impedance of the speakers is not critical.)
- Page 12 Connecting loudspeakers – stereo operation Connect the loudspeakers as shown in Fig. 1 if continuous operation is required, or as in Fig. 2, if the speakers should mute when headphones are connected. WP-8 Installation Guide...
- Page 13 Outputs may be paralleled if a single mono output is required. Connect the loudspeaker as shown in Fig. 3 if continuous operation is required, or as in Fig. 4, if the speaker should mute when headphones are connected. WP-8 Installation Guide...
- Page 14 Again, either stereo or mono operation may be employed. Use the wiring shown in Fig. 5 (continuous) or Fig. 6 (switched) for stereo operation, or Fig. 7 (continuous) or Fig. 8 (switched) for mono operation. WP-8 Installation Guide...
-
Page 15: Operation
Operation The WP-8 has a 3.5 mm 3-pole jack socket for headphones . The WP-8 is suitable for headphones having an impedance of 32 ohms. We recommend the Cloud CP32 headphones for use with the headphone distribution system. The music source can be selected (from those available) with the source... - Page 16 Cloud Electronics Limited 140 Staniforth Road Sheffield S9 3HF England Tel: +44 (0)114 244 7051 Fax: +44 (0)114 242 5462 email: info@cloud.co.uk web: www.cloud.co.uk...
