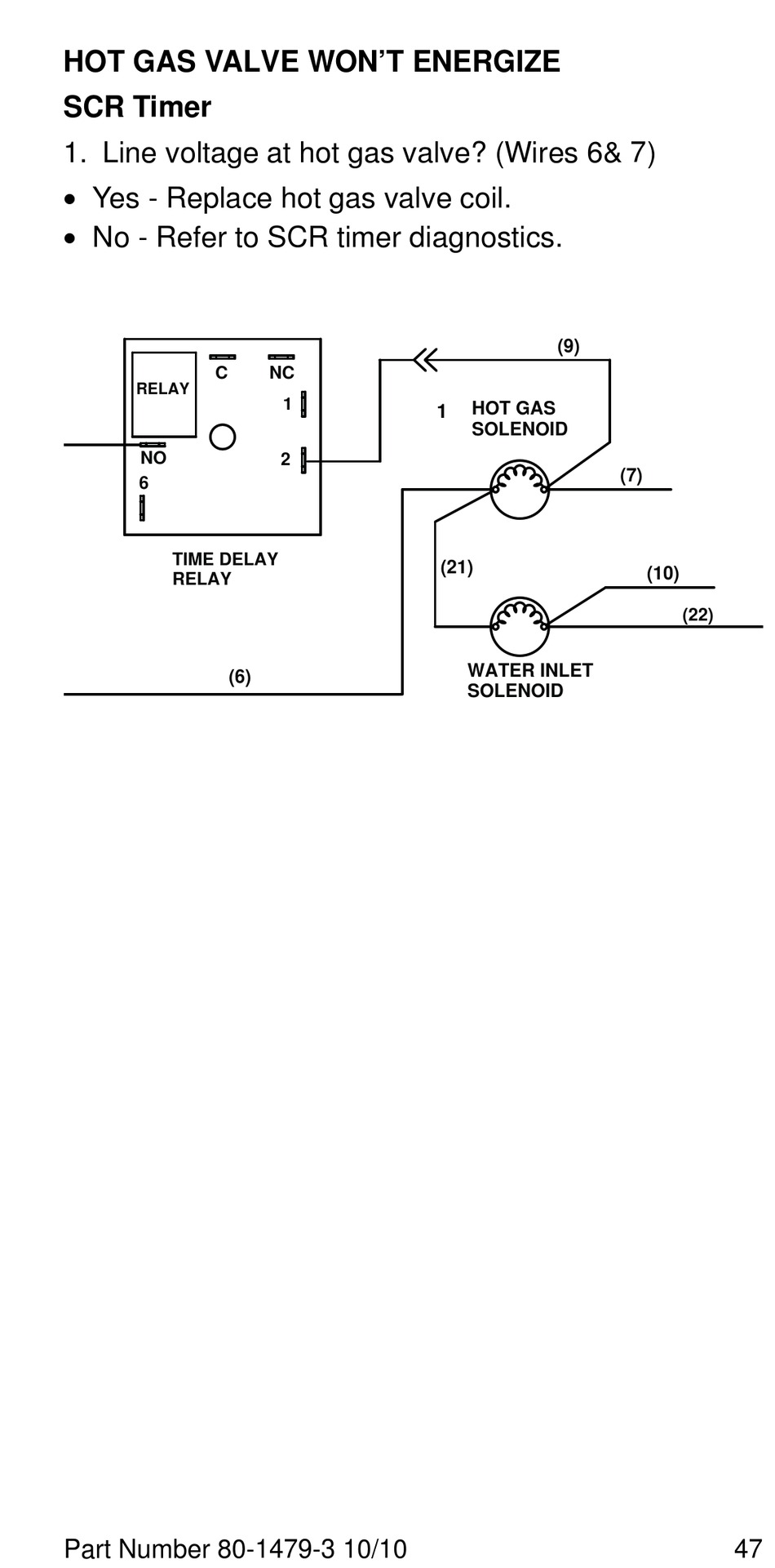

HOT GAS VALVE WON'T ENERGIZE

SCR Timer
1. Line voltage at hot gas valve? (Wires 6& 7)
 Yes - Replace hot gas valve coil.
 No - Refer to SCR timer diagnostics.
RELAY
NO
6
TIME DELAY
RELAY
Part Number 80-1479-3 10/10
C NC
1
2
(6)
(9)
HOT GAS
1
SOLENOID
(21)
WATER INLET
SOLENOID
(7)
(10)
(22)
