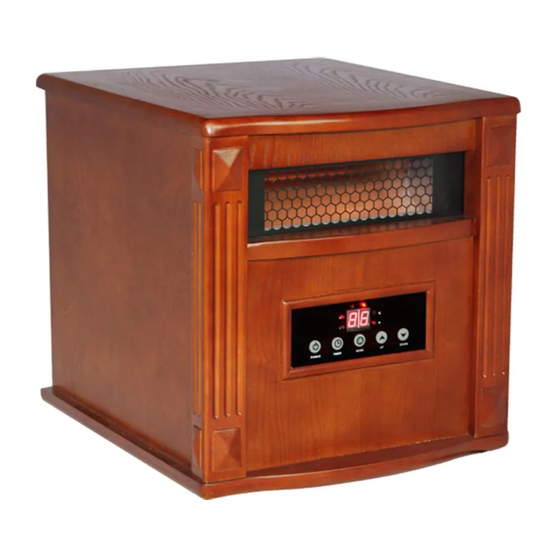

Comfort Furnace CF0036 User Manual

For indoor use only 120vac 15 amp dedicated circuit
Hide thumbs
Table of Contents

Advertisement

Quick Links

CF0036
User's Manual
FOR INDOOR USE ONLY
120VAC 15 AMP DEDICATED CIRCUIT
Carefully and thoroughly read this manual before using the Portable Heater for the
first time. We advise to keep this manual for regular review and future reference.
Heater is intended for residential use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CF0036 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Comfort Furnace CF0036

Summary of Contents for Comfort Furnace CF0036

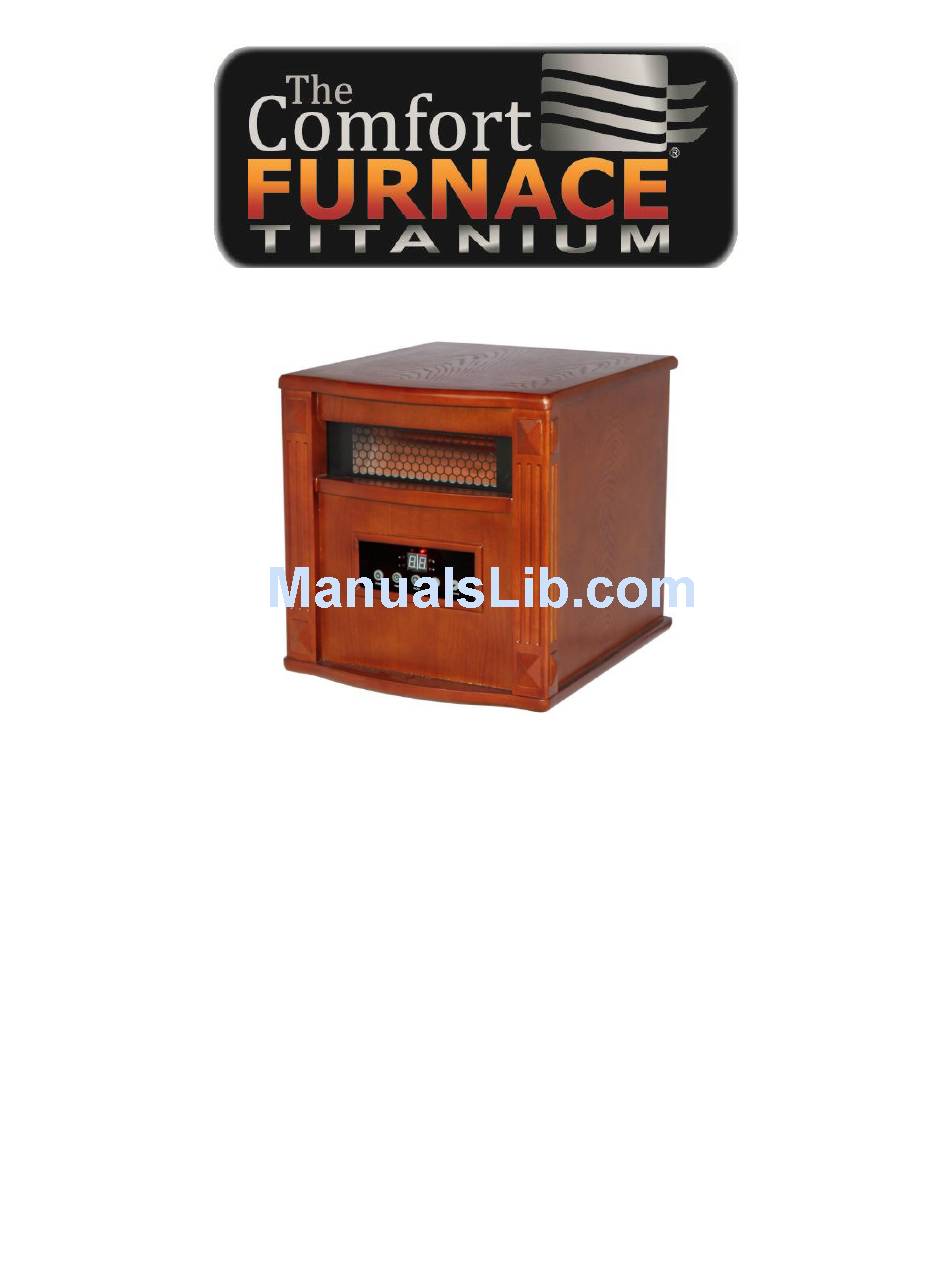

  • Page 1 CF0036 User’s Manual FOR INDOOR USE ONLY 120VAC 15 AMP DEDICATED CIRCUIT Carefully and thoroughly read this manual before using the Portable Heater for the first time. We advise to keep this manual for regular review and future reference. Heater is intended for residential use.
  • Page 2 Introduction Portable Heater utilizes the latest infrared heat technology. It provides a safe, convenient, clean and economical way to distribute heat throughout your home or business office without producing deadly fumes or monoxide gases. The heating system produces therapeutic infrared heat that can potentially relieve symptoms of cardiovascular conditions and inflammatory diseases.
  • Page 3 could result in injury and/or death. Do not operate the heater if it has a damaged cord or plug.  Do not operate the heater if there are signs of malfunction. If the heater has  been dropped or damaged, do not operate. Keep combustible materials such as furniture, pillows and other bedding ...
  • Page 4 Do not use your Portable Heater under the following conditions: If the power cable When small children On a slope or In close proximity to is frayed or cut may be left unattended uneven surface another heat source This product is not If there is a risk of liquid Inside unit exposed to In a permanent humid...
  • Page 5 Components and Functions A. The Portable Heater is constructed with infrared quartz bulbs. Each infrared quartz bulb rates at 375W. These bulbs produce therapeutic infrared rays that warm the air which passes through the inner chamber. The infrared quartz bulbs are constructed with a stainless steel thermal conducting housing.
  • Page 6 Heater Specifications Model No. ACW0036 Carton Size: 18.7 in x 17 in x 18.1 in Heater Size: 16.3 in x 14.5 in x 14.7 in Net Weight: 28.6 lbs Gross Weight: 35.2 lbs Cabinet Color: TUSCAN, EXPRESSO, OAK Power Cord: 8 ft / 14 gauge Power requirement: 120V 15 amp...
  • Page 7 Operating Instructions Visually inspect the Portable Heater before operation. Do not operate the heater if any damages are detected. Contact your dealer immediately. NOTE: “ ” and “ ” buttons both on the control panel and remote control. 1) Plug the power cord directly into a conventional 120V 15 amp outlet and press the MASTER POWER switch on the rear of the Portable Heater.
  • Page 8 that the TIMER is not activated and the heater will work all the time. If you press the “ ” button again, the screen will display “02”, that is 2 hours. The timer will increase 2 hours on each pressing the “ ”button.
  • Page 9 Press the “ ” 6) Calibration Instruction: a) by pressing both “ ” and” ” button on the front control panel, the LED display will blink one second of “00".Without any operation within (5) seconds, LED display the setting temperature. b) The calibration range is -9ºC to +9ºC the difference between the thermostat readings to the actual room temperature.
  • Page 10 10) If the quartz heater gets damaged, the LED will display “ ” 11) If the temperature system gets breakdown, the LED will display “ ”.With alarm sound, heater will stop working. 13) As a safety procedure if the temperature is more than 98ºF (37ºC) in the room, the LED will display “...
  • Page 11 If the heater is not to be used for an extended period of time, it can be stored away. Make sure the power is turned off and the cord is unplugged from the receptacle. Wrap the cord around the handle on the rear of the Portable Heater. Cover the heater to prevent dust from accumulating on the heater.
  • Page 12 SOLUTION: a. Test your outlet to make sure it has power. You can do this by plugging in another appliance and turning the appliance on. b. Check the LED display to see if it is flashing. If this is the case, press the POWER button to turn off the timer and resume normal operation of the Portable Heater.
  • Page 13 SOLUTION: The signal cable or other relevant plugs may have become disconnected. Please contact the manufacturer for further troubleshooting. 7. PROBLEM: The heat emitter is functioning and the air outflow is working, but the temperature display on the LED panel does not increase. SOLUTION: The temperature sensor may be damaged or has become disconnected.
  • Page 14 Warranty information 1. Warranty period is 36 months from the purchased date. 2. This warranty is void if the Portable Heater has been altered, misused, or has been repaired by an unauthorized dealer, or it is not installed according to stated instructions.
  • Page 15 Portable Heater CF0036 Guide de l’utilisateur POUR USAGE À L’INTÉRIEUR SEULEMENT 120 V CA 15 A CIRCUIT DÉDIÉ Lisez attentivement ce guide en entier avant d’utiliser le foyer portatif pour la première fois. Nous vous recommandons de conserver le guide en lieu sûr pour pouvoir le consulter au besoin. Ce foyer a été...
  • Page 16 Introduction Votre foyer portatif fait appel à une technologie infrarouge de pointe. Il fournit une source de chaleur sécuritaire, commode, propre et économique pour la maison ou le bureau qui ne dégage pas de fumées toxiques ni de monoxyde de carbone. Le foyer portatif est protégé par un boîtier en bois, fait de noyer, de chêne foncé...
  • Page 17 électrique, un incendie ou des blessures corporelles.  Ne bloquez jamais la prise d’air ou la sortie d’air d’aucune façon. Cela pourrait déclencher un incendie.  N'installez pas le foyer directement sous un conteneur lorsqu’il fonctionne.  N’utilisez jamais le foyer à proximité de ou dans une baignoire, une douche ou une piscine. ...
  • Page 18 How It Works In short, the indoor air circulates from the rear of the portable furnace heater, passes through a highly efficient air filter, and enters a chamber with infrared quartz bulbs. Finally, the heater discharges heated air from the diathermanous copper plate constructed on the front of the unit.
  • Page 19 unit down. D. The air flow exits through the front of the portable furnace heater. It travels from the diathermanous copper plate. The diathermanous copper plate is constructed from red copper making it advantageous for efficient thermal conductivity. It is a resourceful material in reflecting the infrared rays.
  • Page 20 Model No. ACW0036 ACW0039 Carton Size: 18.7 in x 17 in x 18.1 in 15.0 in x 16.5 in x 21 in Heater Size: 16.3 in x 14.5 in x 14.7 in 12.5 in x 14.2 in x 17.0 in Net Weight: 28.6 lbs 26.9lbs...
  • Page 21 3. Remove all the protective materials from the heater. It may be a good idea to keep the protective materials and packaging in storage when you do not use it. Operating Instructions Visually inspect the portable furnace heater before operation. Do not operate the heater if any damages are detected.
  • Page 22 Press the buttons “ ” and “ ” on the control panel at the same time 3) By pressing the “ ” button, the LED display will switch from the temperature setting to the timer setting and begin to blink the default timer “--", and that means that the TIMER is not activated and the heater will work all the time.
  • Page 23 b)Mode in Heater function,by pressing the “ ” button,the screen will display“02”,The maximum timer is 12 hours. When it reaches 12 hours, the screen will return to “02” and you will restart the setting timer by pressing“ ” or “ ”.
  • Page 24 Press “ ” and” 7) By pressing both the “ ” and “ ” button on the front ” button control panel, it will turn to high or low power. 8) By pressing both the “ ” and “ ” button on the front control panel,it will turn to setting temperature or ambient temperature.
  • Page 25 constantly. 4. Existing HVAC heating system vents should be closed, this allows the heater to function in an isolated area. 5. It is not recommended to operate heater in areas exposed to non-insulated concrete or metal walls. Concrete floors should be covered to insulate the heat within the room.
  • Page 26 Troubleshooting 1. PROBLEM: a. If the Heat Emitter is broken or damaged. b. If the Control Panel is not responding, the temperature reading is above 85°F / 32°c, or there is a burning odor coming from the portable furnace heater c.
  • Page 27 contact the manufacturer immediately for further troubleshooting. 4. PROBLEM: The portable furnace heater continues to operate even when the power switch is turned off. SOLUTION: Do not unplug. The portable furnace heater has a fan that will continue to operate even when the power switch is turned off.
  • Page 28 The temperature sensor may be damaged or has become disconnected. Please contact the manufacturer immediately for further troubleshooting. 8. PROBLEM: The display is showing “Er .” This error code means the heating system is not working correctly. SOLUTION: Contact the manufacturer immediately. Do Not attempt to operate the portable furnace heater as this may cause electric shock, fire, and/or injury.
  • Page 29 Warranty information 1. Warranty period is 36 months from the purchased date. 2. This warranty is void if the portable furnace heater has been altered, misused, or has been repaired by an unauthorized dealer, or it is not installed according to stated instructions.
  • Page 30 Serial No.: Date of Purchase Name of Customer Dealer information Distributor Contact Information for Customer Service...
