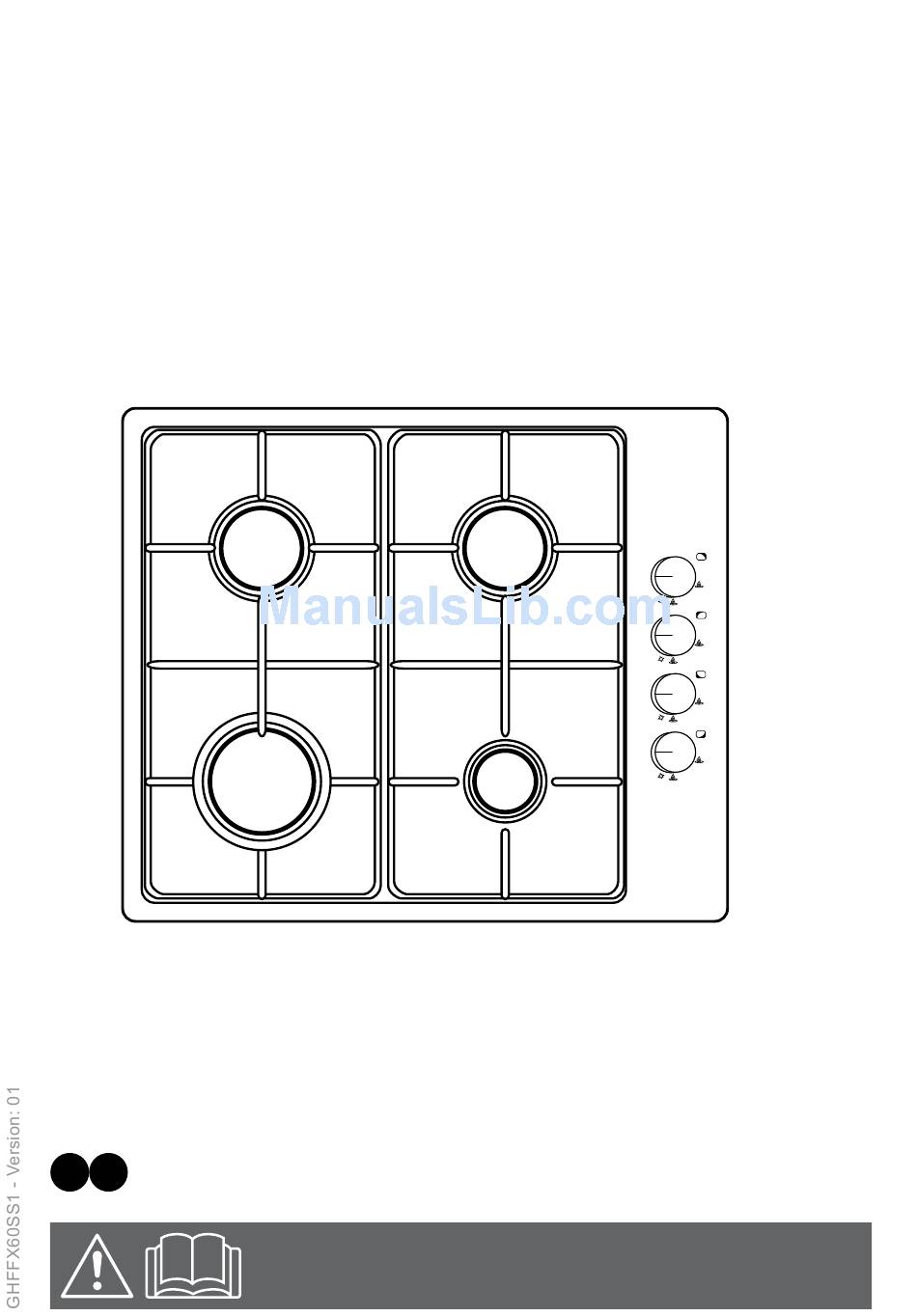

- Page 1 GHFFX60SS1 60CM BUILT IN GAS HOB GB IE Built-in Gas Hob - Barcode: 5052931323319 WARNING: Read the instructions before using the appliance.
- Page 2 [02] x 1 [03] x 2 [01] x 1 [04] x 1 [05] x 2 [08] x 4 [06] x 1 [09] x 4 (4 x 25 mm) [07] x 4 [10] x 1 CLGH3ASS Built-in Gas Hob...
-
Page 3: Table Of Contents
Let's get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started… Your product Before you start Safety more detail… Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Guarantee CE Declaration of conformity... -
Page 4: Getting Started
Your product GHFFX60SS1 Built-in Gas Hob Before you start Your product Installation guide located at the end of the guidebook Things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. -
Page 5: Safety
Safety GHFFX60SS1 Built-in Gas Hob These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference. • All installation work must be carried out by a competent person or qualified electrician. - Page 6 Safety GHFFX60SS1 Built-in Gas Hob This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 7 Safety GHFFX60SS1 Built-in Gas Hob Do not allow the electric cables to touch the hot parts of the appliance. Do not install the appliance outdoors in a damp place or in an area which may be prone to water leaks such as under or near a sink unit.
- Page 8 Safety GHFFX60SS1 Built-in Gas Hob The Manufacturer declines all liability for personal or material damage as a result of misuse or incorrect installation of this appliance. Warning! Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.
-
Page 9: In More Detail
Operation GHFFX60SS1 Built-in Gas Hob Product functions • 4 x burners: Four zones of cooking. • Flame safety device (FSD): Stops the gas supply to the gas hob when the flame goes out. • Auto ignition. • LPG conversion kit supplied. - Page 10 Operation GHFFX60SS1 Built-in Gas Hob Operation Use of the burners Caution • If there is no electric current you can light the burners with piezo electric spark gas ignitor. • The burners can only be lit with safety thermocouples when the knob is on MAXIMUM.
- Page 11 Operation GHFFX60SS1 Built-in Gas Hob Operation Note • The use of a gas cooking appliance produces heat and humidity in the place where it is installed. • Therefore, you need to ensure the place is well ventilated, keeping the natural ventilation openings clear and using a mechanical ventilation device/ flue or electric fan.
-
Page 12: Care And Maintenance
Care and maintenance GHFFX60SS1 Built-in Gas Hob Care and maintenance Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, FUSE contact customer services. Caution • Use soapy water and a cloth for cleaning. Never use abrasive powders. -
Page 13: Troubleshooting
Troubleshooting GHFFX60SS1 Built-in Gas Hob Recycling and disposal Troubleshooting The following circumstances may not be a problem. Do not contact the customer services until the problem has been confirmed. If your appliance is still not functioning properly after making the above checks, please contact customer services. -
Page 14: Technical And Legal Information
Technical and legal information GHFFX60SS1 Built-in Gas Hob Technical specifications Supply voltage 220-240V~, 50/60Hz G20Type/20mabr/7.5kw, Gas pressure G30Type/28-30mbar/7.5kw External dimensions (W x H x D) 590 x 90 x 500 mm Net weight 7.3kg USER CHARACTERISTICS OUTPUT OUTPUT 20mbar 28-30mbar... - Page 15 Technical and legal information GHFFX60SS1 Built-in Gas Hob Wiring All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hob.
- Page 16 Technical and legal information GHFFX60SS1 Built-in Gas Hob Technical and legal information The Manufacturer declines all liability for damage caused to persons and objects due to incorrect or improper installation of the appliance. Electrical Requirements Any permanent electrical installation must comply with the latest I.E.E.
- Page 17 Technical and legal information GHFFX60SS1 Built-in Gas Hob Installation guidelines Gas supply requirements The appliance installation must be carried out in accordance with relevant local regulations. The installation must be carried out by an authorised gas appliance installer and tested to local regulations.
-
Page 18: Gas Connection
Technical and legal information GHFFX60SS1 Built-in Gas Hob Gas connection Caution The gas connection must be installed in compliance with applicable regulations in the country of installation. The preferred method of connection is by rigid copper pipe or by flexible hose, depending on local regulations. - Page 19 Technical and legal information GHFFX60SS1 Built-in Gas Hob Gas connection Regulation of burners Caution The regulation described can only be carried out with burners that use methane gas and city gas (where available), whereas the screw must be fully tightened in a clockwise direction on burners using liquid gas.
-
Page 20: Guarantee
Guarantee GHFFX60SS1 Built-in Gas Hob Guarantee This appliance is covered by a full manufacturer’s 2 year parts and 2 year labour guarantee and covers all parts and labour costs associated with the repair of the appliance in a domestic environment. We will repair any defect that arises due to faulty materials or workmanship and use genuine manufacturers parts. - Page 21 Guarantee GHFFX60SS1 Built-in Gas Hob Guarantee Exclusions to the guarantee This guarantee does NOT cover: Appliances that have been damaged or neglected as a result of failure to store, assemble, install, use or care of the products in accordance with the manufacturer’s instructions - GAA will not accept responsibility under this...
-
Page 22: Ce Declaration Of Conformity
CE Declaration of Conformity GHFFX60SS1 Built-in Gas Hob CE Declaration of Conformity MANUFACTURER: CATA C/ Ter nº 2, Torelló 08570 - Barcelona (Spain) ADDRESS: We hereby certify that the mentioned accessory complies with the essential requirements of the European Directives applicable, including their modifications and the corresponding transpositions from the national law. -
Page 23: Installation
Installation GHFFX60SS1 Built-in Gas Hob Clearance Warning Good ventilation is required around the appliance for easier dissipation of heat and low power consumption. Sufficient clearance is required around the appliance. The gap between the hob and any cupboard above it should be at least 650mm. - Page 24 Installation [10] x 1 Cut out worktop to the template dimensions with suitable equipment. [06] x 1 [06] Stretch out the supplied seal along the underside edge of the hob, ensuring the ends overlap.
- Page 25 30mm 40mm [07] [09] [07] x 4 [09] [07] [09] x 4 Note: For electrical connection see Technical and legal information section.
- Page 26 Notes...
- Page 27 Notes...
- Page 28 GAA Ltd 1301-1303 1Lu Plaza 2 Wing Yip St Kwun Tong Kowloon Hong Kong...
