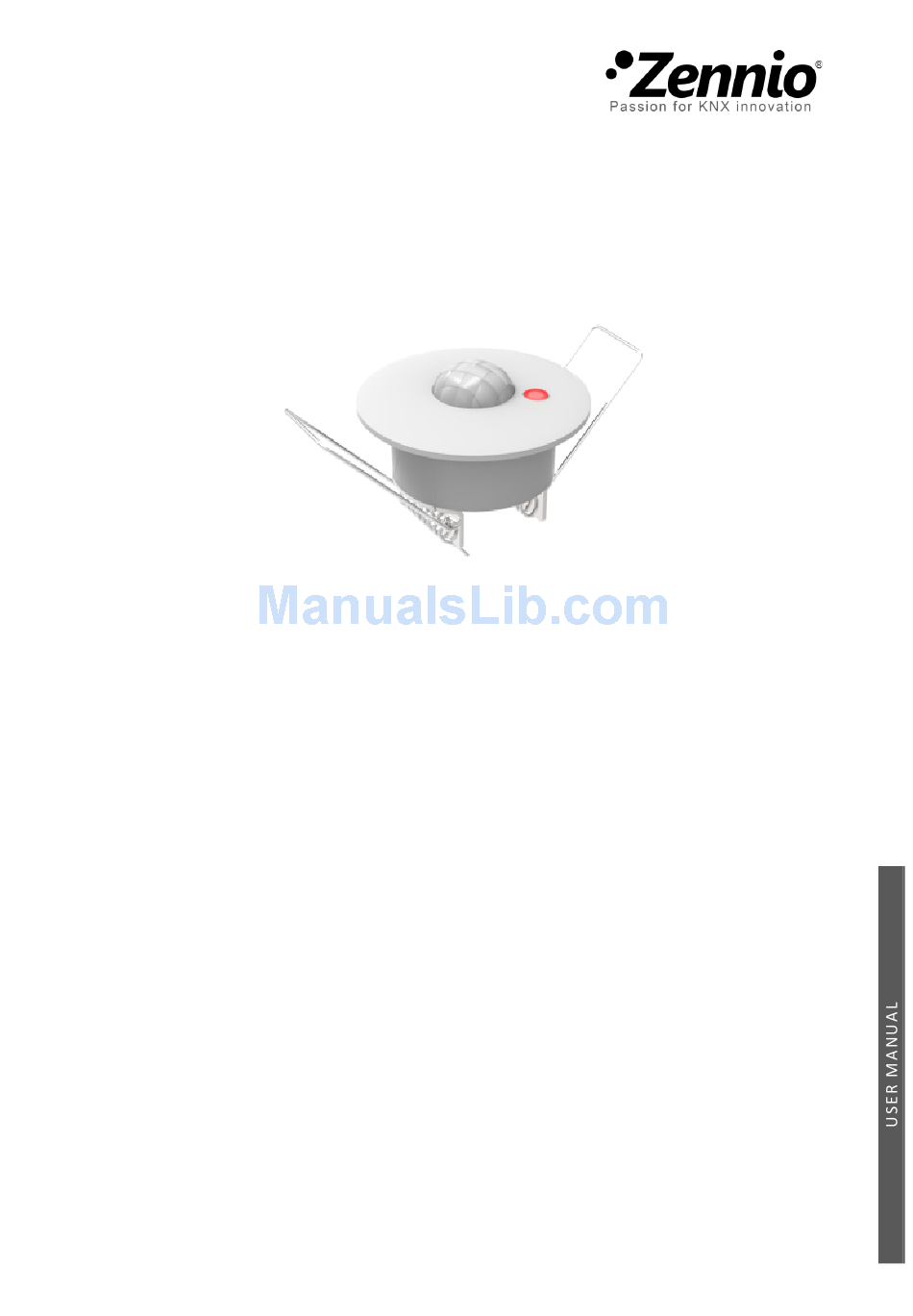

Page 1: Motion Detector
Motion Detector Motion Detector with Luminosity Sensor ZN1IO-DETEC / ZN1IO-DETEC-N / ZN1IO-DETEC-P User Manual Version: c www.zennio.com... -
Page 2: Table Of Contents
Motion Detector Contents Document Updates ........................3 Introduction ........................4 Zennio Motion Detector .................... 4 Supported devices ..................... 4 Installation ........................6 General Installation ....................6 Connecting the detector to the device ............... 8 Connecting two parallel detectors ................8 ETS Parameterisation ...................... -
Page 3: Document Updates
Motion Detector DOCUMENT UPDATES Version Modifications Page(s) Reference added to new model ZN1IO-DETEC-P. Reference added to new model ZN1IO-DETEC-N. General update of texts and format. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com... -
Page 4: Introduction
Figure 1. Zennio Motion Detector 1.2 SUPPORTED DEVICES The Zennio Motion Detector is marketed as an optional accessory for the variety of Zennio devices equipped with inputs, whose application program needs to be as well specifically compatible with the Zennio motion detector. - Page 5 Note: models ZN1IO-DETEC and ZN1IO-DETEC-N need to be powered at 5 V, while model ZN1IO-DETEC-P can work both at 5 V or 3.3 V. This is possible by means of a specific voltage selection micro-switch (see section 2.2), which should be configured according to the voltage provided by the particular Zennio device the detector is being connected to.
-
Page 6: Installation
2.1 GENERAL INSTALLATION The Zennio Motion Detector needs to be connected to any of the available input ports of the Zennio device (please refer to the specific user manual of the target device for further details). Once connected to the device, the detector needs no further electrical power; it will be ready to function once the Zennio device gets programmed. - Page 7 Figure 5. Positions of the Triple Micro-Switch Important: models ZN1IO-DETEC and ZN1IO-DETEC-N are only compatible with Zennio devices powering the input lines at 5 V, while model ZN1IO- DETEC-P can work both powered at 5 V or at 3.3 V; however the central micro-switch should be set to the proper voltage level, depending on that provided by the device the detector is connected to.
-
Page 8: Connecting The Detector To The Device
Motion Detector the Zennio Technical Support for more details about the voltage corresponding to the different Zennio devices. Metal Clamps (E): spring clamps that help secure the detector after the installation. It is possible to accommodate the motion detector in the false ceiling of the room by drilling a 40-mm diameter corona and inserting the detector (previously connected to the device) with its metal clamps folded (see section 2.2). - Page 9 Important: only a maximum of two detectors can be connected to the same input (and only one of them can have the luminosity measuring function enabled at a time). Note: Zennio devices compatible with the motion detector typically provide the option to enable multiple virtual detection channels, which makes it possible to simultaneously implement a variety of reactions and behaviours, although all of them associated to a sole input value.
-
Page 10: Ets Parameterisation
The more light level is detected in the room, the greater this value will be. Note: object names may vary slightly depending on the device where the motion sensor is being connected and on the selected input port. Figure 8. Virtual Detection Channels http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com... - Page 11 Every channel will work independently, which makes it possible to set different parameters (delays, thresholds, etc.) and different parallel reactions to be triggered depending on the values sent by the detector (which is the same for the three channels). http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
-
Page 12: Channels
Detection Length and a Blind Time to ensure the channel state remains in the new state for at least a certain time, after which it will listen again to the signal received from the sensor. The following example illustrates this. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com... -
Page 13: Detection States
Enable / Lock: sets how the channel may be activated or deactivated during the execution time. While the channel remains deactivated, it will ignore the motion / no motion signals from the sensor, as well as the entire channel configuration. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com... - Page 14 (binary or scene) set under the “Detection” and “No Detection” sections, as explained below. o Send on Lock: analogous to the above parameter; sets that value to be sent to the bus when the channel switches to Inactive. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
-
Page 15: Length Of The Detection
If a detection length of 5 seconds is set, after the detector finds moving subjects in the room, QUAD will send the “Detection” value to the dimmer, so that the light source turns on. After five seconds without detecting motion again (even if the subject is still in http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com... - Page 16 “No Detection” value. This ensures that the “No Detection” state is maintained at least during that time interval, even if there is motion in the room, which will be ignored by the channel. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
-
Page 17: Detection
On the other hand, activating this option brings the possibility of extra sending the “No Detection” value to the KNX bus as soon as the luminosity is found again over the threshold value (parameter “Send NO DETECTION when the threshold is exceeded?”). http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com... -
Page 18: Luminosity-Constrained Detection
(here, 55%) and in ensuring the artificial light source itself does not cause (during the absence of the sunlight) a luminosity level greater than such value, either. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com... -
Page 19: Luminosity Reset
Again, a threshold of 30% is configured, without a “No detection” sending after exceeding the threshold value. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com... - Page 20 “No Detection” state because of a luminosity value greater than the threshold, the luminosity will not be reset even if the “No Detection” is still reported to the bus when corresponding). http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com...
-
Page 21: No Detection
For the second case, a cycle time (5 to 250 seconds) should be configured. Delay: sets the time (0 to 127 seconds) that the device should wait before sending the value to the bus, after the channel enters the No Detection state. http://www.zennio.com Technical Support: http://zennioenglish.zendesk.com... - Page 22 Join and send us your inquiries about Zennio devices: http://zennioenglish.zendesk.com Zennio Avance y Tecnología S.L. C/ Río Jarama, 132. Nave P-8.11 45007 Toledo (Spain). Tel. +34 925 232 002. Fax. +34 925 337 310. www.zennio.com info@zennio.com...
