Summary of Contents for FilterWater FW-2000

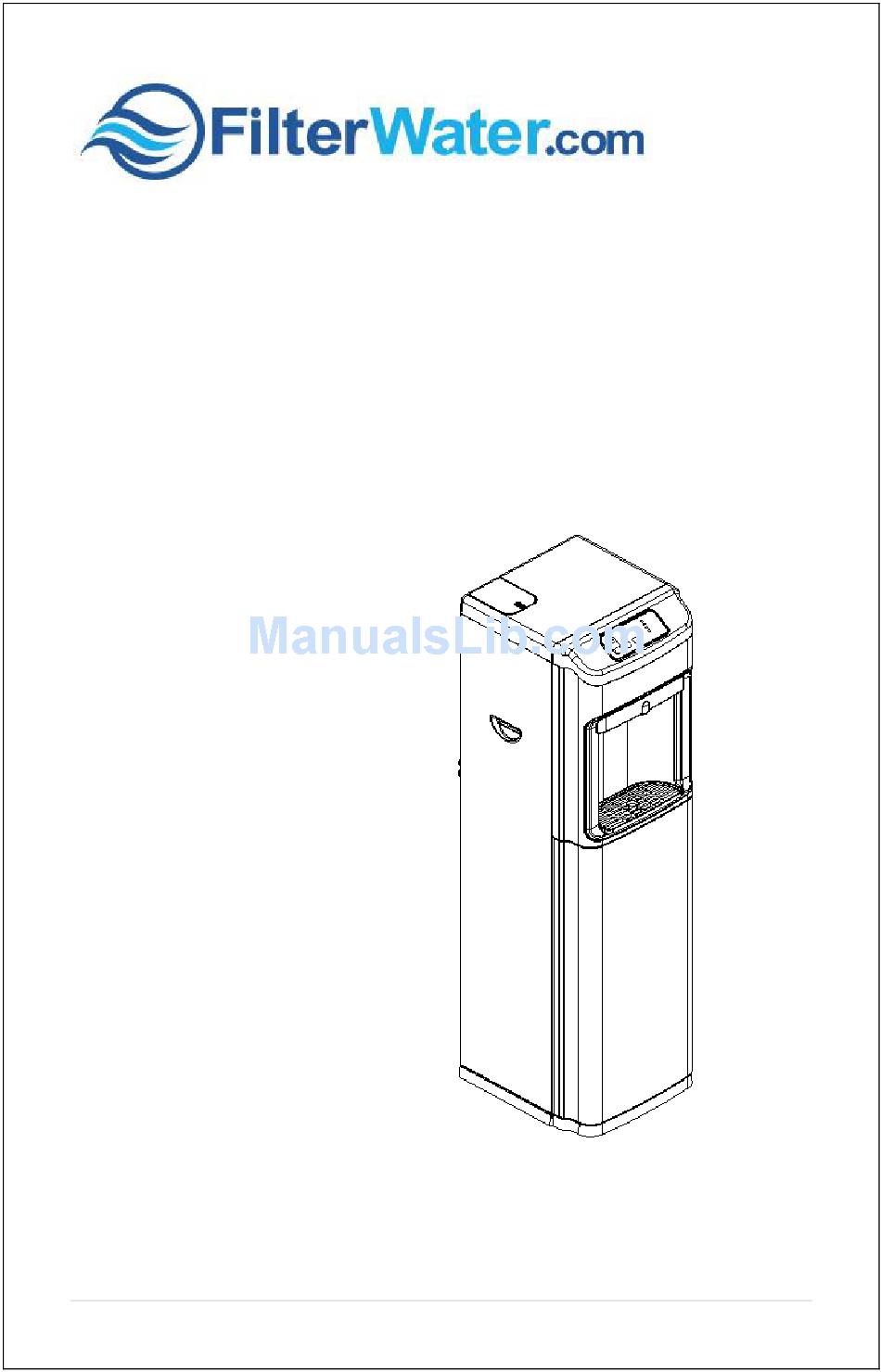

- Page 1 MODEL FW-2000 OPERATION MANUAL P a g e...
-
Page 2: Table Of Contents
Table of Contents Introduction…….……………………………………………………………………………………..pg.3 Receiving………….…………………………………………………………………………………….pg.4 Description Model H2O- 2000…………….……………………………………………………………...pg.5 Operation……………………………….……………………………………………………………pg.6,7 Drain Container Operation……………………………………………………………….……p.g.8 Cup Dispenser Operation……………………………………………………………………….p.g.9 Positioning the Cooler………………….……………………………………………………….pg.10 Water Cooler Connections…………….………………………………………………..pg.11 Feed Water Connection……………….……………………………………………………….pg.12 Drain Connection……………………….…………………………………………………………pg.13 EZ Connections………………………….………………………………………………………….pg.14 Start Up Flush……………………………………………………………………………....pg.15 Tank Flush…………………………………………………………………………………………….pg.16 Cleaning and Maintenance…………….…………………………………………………….pg.17 Sanitization …………………………………………………………………………………..p.g.18 Filter Replacement………………………….……………………………………………….…..pg.19 Reverse Osmosis Membrane Replacement.…………………………………….……pg.20 Troubleshooting……………………………………….………………………………………..pg.21 Specifications………………………………………….………………………………………..….pg.22... -
Page 3: Introduction
Introduction Congratulations on your purchase of our revolutionary Bottle-less Water Cooler! Our coolers are all designed to replace the conventional 5 gallon water bottle while eliminating the hassles of deliveries, lifting bottles and eliminating plastic bottles from landfills. Our coolers are designed to produce pure great tasting water for the whole family that is clean and safe to drink. -
Page 4: Receiving
CAUTION: The filter version “F” must be used only with softened water or water that has less than 3.5-grains of hardness to prevent scaling and premature burnout of the heating elements. Receiving the Cooler Unpacking International H2O products are shipped completely assembled and ready to operate. -
Page 5: Description Model H2O-2000
constant level of filtered water. Both models are available with reverse osmosis (RO) or standard filter (F) versions. Description Model H2O-2000 P a g e... -
Page 6: Operation
Figure 1. Assembly Drawing Model H2O-2000 Operation When installation is complete, the unit will fill up with water and shut off when the tanks are full. Plug the unit in to an outlet and press the cold/hot faucets until a steady stream of water comes out. - Page 7 Figure 2. Hot and cold power on/off switch Operation Cont… P a g e...
-
Page 8: Drain Container Operation
Drain Container Operation P a g e... -
Page 9: Cup Dispenser Operation
Cup Dispenser Operation P a g e... -
Page 10: Positioning The Cooler
Positioning the Cooler 1) It is not recommended to install this cooler in an area were water may cause severe or costly damage. 10 | P a g e... -
Page 11: Water Cooler Connections
2) Do not position the cooler where it can be hit or bumped by Vacuum cleaners or floor waxing machines. This can cause breaks in the waterline, connection fittings and compressor tubing. Water Cooler Connections When you receive the water cooler, the water connections on 11 | P a g e... -
Page 12: Feed Water Connection
the back have of the cooler have tube plugs in them. These tube sections must be removed before making all your connections. To remove the tube sections see figure 7 “Disconnect”. The 1/4" plastic tubing should be used for making the Feed Water and Drain connections. -
Page 13: Drain Connection
Attach the 1/4-inch tubing to the compression fitting on the side of the valve. Clamp the saddle valve over copper or plastic feed line (cold water only). Turn the handle on the valve until the needle stem pierces the tube. Then retract the needle 1-2 turns to start water flow. -
Page 14: Ez Connections
The drain line in the back (Fig. 4) must be hooked to the drain line ahead of the normal sink water trap. See Figure 5 below. Place the 2 part drain saddle on the drain pipe before the drain trap. Allow proper space for the drilling operation. Tighten the saddle bolts evenly on both sides. -
Page 15: Start Up Flush
properly. Cut the tube square “O” Ring Collet Stainless Steel Teeth Cut the tube square. It is essential that the outside diameter is free of score marks and that burrs and sharp edges be removed before inserting into fitting. For soft thin walled plastic tubing we recommend the use of a tube insert. -
Page 16: Tank Flush
Disconnect the tube from the 2nd stage carbon filter (circle in figure below) and place a cup or pan right underneath the hole to catch water. Open ball valve inside the cooler 1/4-turn (handle in line with tube is “on” and let water flow through filters into the bucket or pan to push out air and carbon fines. -
Page 17: Cleaning And Maintenance
dispensing spigots. Fill and empty the tanks 3 times with the filtered water, this ensures great tasting water. When the tank has filled again with filtered water the cooler is ready to dispense water. You may now turn on the Hot and Cold buttons on the back of the machine. - Page 18 Sanitize 18 | P a g e...
-
Page 19: Filter Replacement
Fill main water tank with water. Add 1-2 teaspoons of liquid chlorine bleach. Let stand for 5-10 minutes. Drain the water then let water from filters refill tank and drain a second time. Remember to drain from dispensing spigots also. Note: Upon completion of cleaning, wait at least 10 minutes after the power cord is plugged in before turning on the Hot and Cold Water buttons. - Page 20 The filter elements must be replaced at regular intervals to maintain the quality of the water. The H2O-2000F has 3-stages of mechanical filtration. 1st stage 5- micron sediment filter, 2nd stage activated carbon filter and a 3 stage post carbon filter. The filter elements in all stages must be replaced every 6 months.
-
Page 21: Reverse Osmosis Membrane Replacement
Reverse Osmosis Membrane Replacement (every 3 years) RO versions (RO) a) Use the same procedure as above sec a-c. b) Remove the RO stage from the clips. Disconnect the white tubing from the RO housing cap. c) Remove the cap from the housing by unscrewing it. d) Using a pair of pliers, remove the RO element from the housing by grasping the tube end and pulling it out. -
Page 22: Trouble Shooting Guide
Trouble Shooting Guide PROBLEM CAUSE SOLUTION No Power No electric current Make sure the cooler flowing. is plugged in and check for improper connections. Cold Water not cold The cooler is placed Provide a minimum of 5” space between wall enough too close to the wall. -
Page 23: Specifications
Specifications Model No. H2O-2000 Voltage/Frequency AC110V Dimensions (L)14 x (W)13 x (H)48 Weight (empty) 70 lb. Hot Tank Capacity .5 gal. Ambient Tank Capacity 2.3 gal. Cold Tank Capacity 1 gal. Power Consumption Hot Water: 500W Cold Water: 100W Electric Power Cord Length 6Ft. -
Page 24: Warranty
Warranty All International H2O products are warranted to be free from defects in materials and workmanship under normal use within the condition of operation listed for a period of 1 year from date of purchase. The compressor has a 5-year warranty. There is no liability assumed by the company for damage due to water leakage or other secondary effects from any component defect. - Page 25 Mailing Address: FilterWater.com P.O.Box 968 Southampton, PA 18966 http://www.FilterWater.com Tel. (800) 439-0263 Fax (215) 354-0304 Email: Sales@filterwater.com 25 | P a g e...
