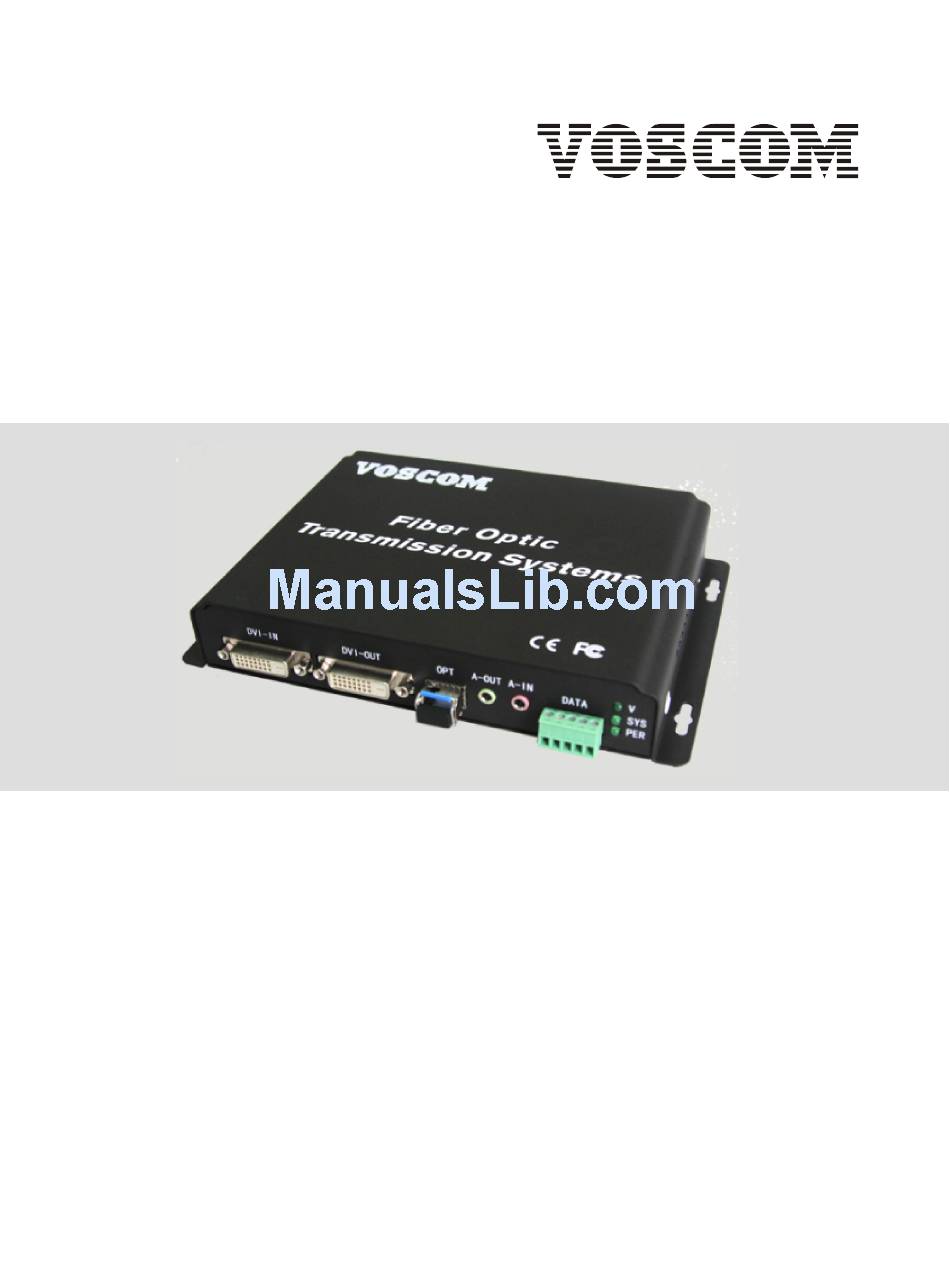

- Page 1 Installation Manual Fiber Optic Transmission Systems VOS-1DVI-LT/R series 1-Channel DVI Extender over Fiber VOSCOM TECHNOLOGIES CO.,LIMITED WWW.VOSCOM.COM...
-
Page 2: Important Safety Instructions
CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Website:www.voscom.com... -
Page 3: Product Overview
En_2 Product Overview The VOS-1DVI-LT/R provides for the digital Audio Data transmission of 1-Channel uncompressed DVI video resolutions up to WUXGA 1920x1200 and HDTV Video resolutions up to 1080p. support singlemode or multimode fiber cable. Support one DVI loopback output for local display. Features: •... -
Page 4: Transmitter Front Panel
En_3 Panel & Cable Connection Transmitter Panel: TRANSMITTER FRONT PANEL DATA DVI-IN DVI-OUT A-OUT A-IN None None None DVI-D DVI Connector: DVI Input DVI-D DVI Connector: DVI Output, DVI Loopback Output for local display. No function, No Audio support for this model. No function, No Audio support for this model. -
Page 5: Receiver Front Panel
En_4 Panel & Cable Connection Receiver Panel: RECEIVER FRONT PANEL DATA DVI-OUT A-OUT A-IN None None None DVI-D DVI Connector: DVI output. No function, No Audio support for this model. No function, No Audio support for this model. No function, No Rs232/485 data support for this model. Fiber Optic Connector: support LC Connector (Single-Core) RECEIVER REAR PANEL DC5V... - Page 6 En_5 Panel & Cable Connection VGA TRANSMMITTER DVI Source Input DVI Source DVI-IN DVI Local Loopback Output Display DVI-OUT No Function AOUT DATA No Function DC5V 2A Power Supply VGA RECEIVER Display DVI Source Output DVI-OUT No Function AOUT DATA No Function DC5V 2A Power Supply...
-
Page 7: Stand-Alone Installation
NOTE: Before mounting the VOS-1VGA-LT transmitter/ VOS-1VGA-LR receiver, please ensure that there is adequate space at both ends for viewing the front-panel LEDs and for making the various rear-panel cable connections. Stand-alone Mounting Size: 200mm x 135mm x 33mm Website:www.voscom.com Website:www.voscom.com... -
Page 8: Rack Mount Installation
Most modules require only a single slot width, but others, such as the 8-Ch video Series, require two slot widths. VOS-CH04-HD16: 19 inch 4U,16 video card slots, suit for VGA, DVI, HD-SDI, 3G-SDI video cards. Support two slide-in power supply AC100V~AC240V, one for redundancy. Typical Configurations: Website:www.voscom.com... -
Page 9: Troubleshooting
Not Light Incoming video signal powered on. to the video source. on Receiver is not present on the channel. Video source is not Check BNC connections. connected to the transmitter. Replace cable. Coaxial cable connected to the transmitter is defective. Website:www.voscom.com... - Page 10 Verify that losses in fiber A problem exists with optic cable do not exceed the optical power the optical power budget budget. specification of the fiber optic link. If the losses do exceed the optical power budget, contact Product Support. Website:www.voscom.com...
-
Page 11: Warranty Policy
All VOSCOM manufactured products are warranted to be free from defects in manufacturing and materials for the warranty term of 3 years. VOSCOM will repair or replace any equipment or parts proved to be defective during the term of the warranty. - Page 12 Warranty Policy Warranty repair/replacements Subject to the terms of the limited warranty in effect at the time of purchase, VOSCOM will repair or replace a product that fails to meet the terms provided, within the product's warranty period. The actual warranty period starts from either: a): The date of shipment from VOSCOM's facility (point of origin) b): The manufacturer's date code (if the shipment date is unknown).
- Page 13 User Manmual Network Cable with RJ-45 connector (If the product with RJ-45 port) Note: 1): VOSCOM reserves the right to change specifications without notice. 2): You can download the latest PDF document here: www.voscom.com 3): Online Technical Support please E-mail:support@voscom.com 4): More detail product information please E-mail: sales@voscom.com, or contact...
- Page 14 TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT LOOK INTO OPTICAL PORTS WITH POWER ON. Distributor Information: Headquarters Information: VOSCOM TECHNOLOGIES CO., LIMITED Hangzhou , Zhejiang , P.R.CHINA 310004 Tel:+86-571-87389389 Fax:+86-571-87389390 Web:www.voscom.com E-Mail:sales@voscom.com...
