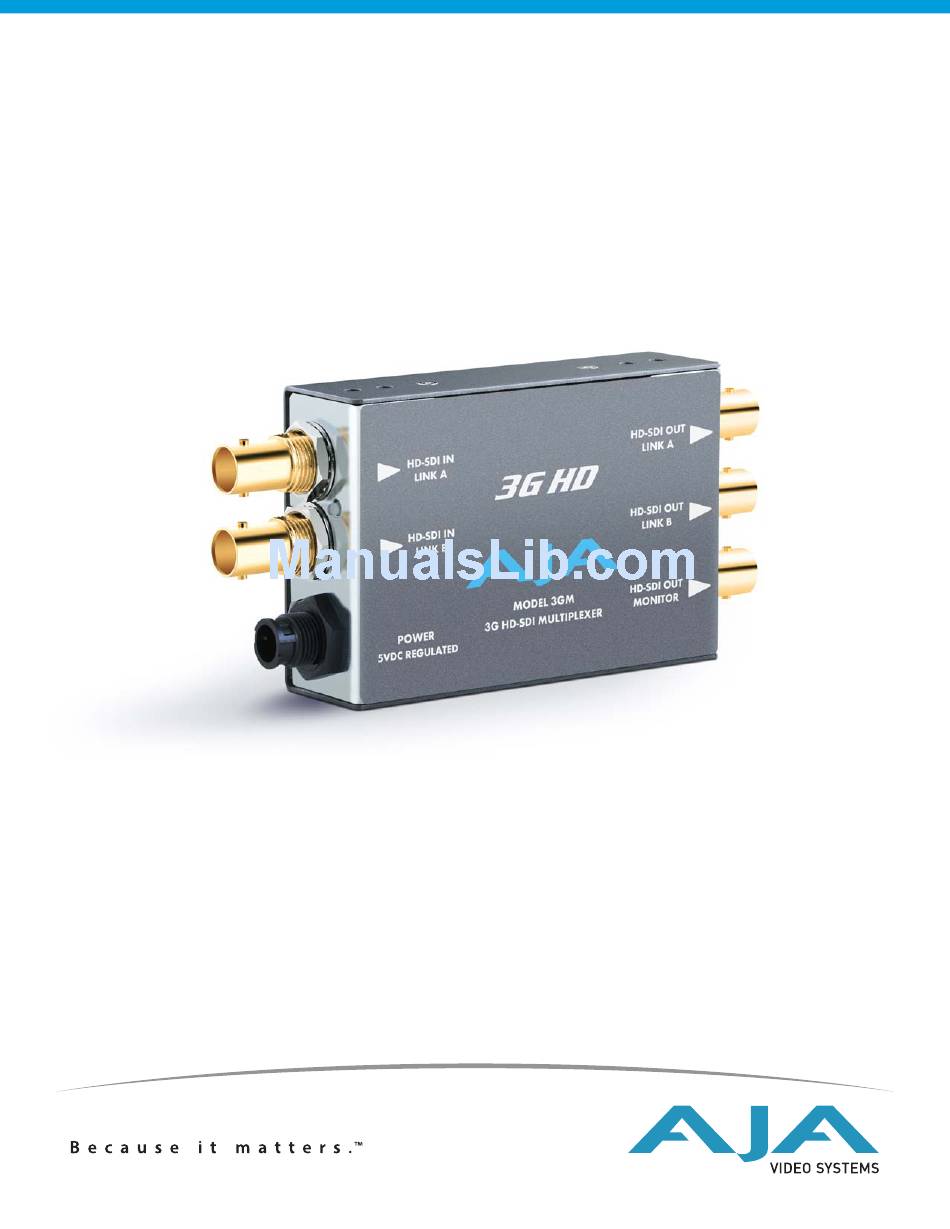

- Page 1 Mini-Converter Installation & Operation Guide Version 1.5 Published: May 6, 2014 ®...
-
Page 2: Table Of Contents
Contacting Support ............. . . 3 Chapter 1: 3GM – 3G/1.5G HD-SDI Multiplexer ....4 Overview. -
Page 3: Notices
All other trademarks are the property of their respective holders. Copyright Copyright © 2014 AJA Video, Inc. All rights reserved. All information in this manual is subject to change without notice. No part of the document may be reproduced or transmitted in any form, or by any means, electronic or mechanical, including photocopying or recording, without the express written permission of AJA Inc. -
Page 4: Chapter 1: 3Gm - 3G/1.5G Hd-Sdi Multiplexer
1.5G conversion. Additionally, 3GM’s 3G HD-SDI output is configurable for SMPTE425M type A or B. The 3GM can even convert 3G from/to type A or B. 3GM also provides a monitor output which is a single link SMPTE292M 1.5G HD-SDI. The 3GM is compatible with SMPTE259M 270Mb SDI. -
Page 5: User Controls
Note: In both cases, the monitor output for a 3G or Dual-Link input will be a downconverted HD (SMPTE 292M compliant) output. Note: In both cases, if a single HD or SD SDI signal is fed to the Link A input connector, 3GM enters DA mode and routes that SDI input signal to all three output connectors. -
Page 6: Installation
3 and 4 for input information. Installation In normal operation the 3GM uses between 4 and 6 watts of power. Because it is designed to use the outer case and the attached cables for heat dissipation, the case can feel warm to the touch. -
Page 7: Appendix A: Specifications
4.6" x 2.4" x 1" (117 x 61 x 25 mm) Power Uses AJA Power Supply model DWP-U-R1 (included) 100-240V, 50/60Hz Universal Input +5V DC regulated, 7.5 watt capacity NOTE: 3GM is not recommended for use with AJA DRM chassis rackmount kit. 3GM v1.5 www.aja.com... - Page 8 Table 2. 3GM Video Format Support Video Format Support Video Formats (SMPTE 372/425) Monitor output Formats Color Space Chroma Image Size Signal format Pixel Depth Frame/Field Rates Convert Resample Image Format Signal Format Pixel Depth Frame/Field Rates 1920x1080 4:2:2 YCbCr 10 bit 60, 59.94, 50, 48, and 47.95 progressive...
-
Page 9: Appendix B: Safety And Compliance
Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils numériques de classe A prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada. Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada. 3GM v1.5 www.aja.com... -
Page 10: European Union And European Free Trade Association (Efta)
Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist. Attention! Ceci est un produit de Classe A. Dans un environnement domestique, ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l?utilisateur de prendre les mesures spécifiques appropriées. 3GM v1.5 www.aja.com... -
Page 11: Korean Kcc Compliance Statement
Translated Warning and Caution Messages The following caution statements, warning conventions, and warning messages apply to this product and manual. 3GM v1.5 www.aja.com... -
Page 12: Before Operation Please Read These Instructions
¡Advertencia! No utilice este dispositivo cerca del agua y límpielo solamente con un paño seco. Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano seco. Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un panno asciutto. 3GM v1.5 www.aja.com... - Page 13 Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore. 3GM v1.5 www.aja.com...
- Page 14 Lo spinotto largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non si inserisce nella presa di corrente, contattare un elettricista per la sostituzione della presa obsoleta. 3GM v1.5 www.aja.com...
- Page 15 Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra e che non venga schiacciato soprattutto in corrispondenza delle spine e del punto in cui esce dal dispositivo. 3GM v1.5 www.aja.com...
- Page 16 è stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona correttamente o è caduto. 3GM v1.5 www.aja.com...
- Page 17 Warning! Do not open the chassis. There are no user-serviceable parts inside. Opening the chassis will void the warranty unless performed by an AJA service center or licensed facility. Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis ne peut être réparé...
- Page 18 ¡Advertencia! Cuando mueva la unidad desenchufe de la red eléctrica el/los cable(s) de la fuente de alimentación CA tipo brick. Advertência! Remova os cabos CA de alimentação brick da rede elétrica ao mover a unidade. Avvertenza! Scollegare il cavo dell’alimentatore quando si sposta l’unità. 3GM v1.5 www.aja.com...
-
Page 19: Warranty Information
AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located.
