Technical specs
Normal operating voltage
Frequency range
Wireless Range
Basic operations
-
Switch lifestyles
-
Activate scenes
-
Easy control your lights and curtains together by one pushbutton
-
Long battery lifetime
-
Available with double press buttons
ow it operates
H
The Scene Control has 7 buttons.
If 1 of the 7 buttons is pressed a CENTRAL_SCENE_NOTIFICATION Z-Wave message is sent to the associated
node with the corresponding value. This message can trigger a scene in a controller.
Use
The Scene Control can be used to activate a scene or lifestyle.
Include into a Z-Wave network
1.
Press and hold the Button 5 for 2 seconds and release to start the exclude process.
2.
When classic inclusion failed, the product will start Network Wide Inclusion automatically.
Exclude into a Z-Wave network
1. Press and hold the Button 5 for 12 seconds until the led starts blinking, than release to start the
exclude process, if you keep holding the button it will only send wakeup message.
2.
Make sure the Scene Controller is in direct range of the controller.
1
Make sure your Z-Wave controller is in the correct operation mode (include or exclude).
Version 0.1
Quick start: Scene Controller EU
2x AAA 1,5V batteries
868.42 MHz
Up to 30 meters in line of sight
1
3 July 2013
www.iHome.eu
Advertisement
Table of Contents
Summary of Contents for Be Next-iHome Scene Controller EU

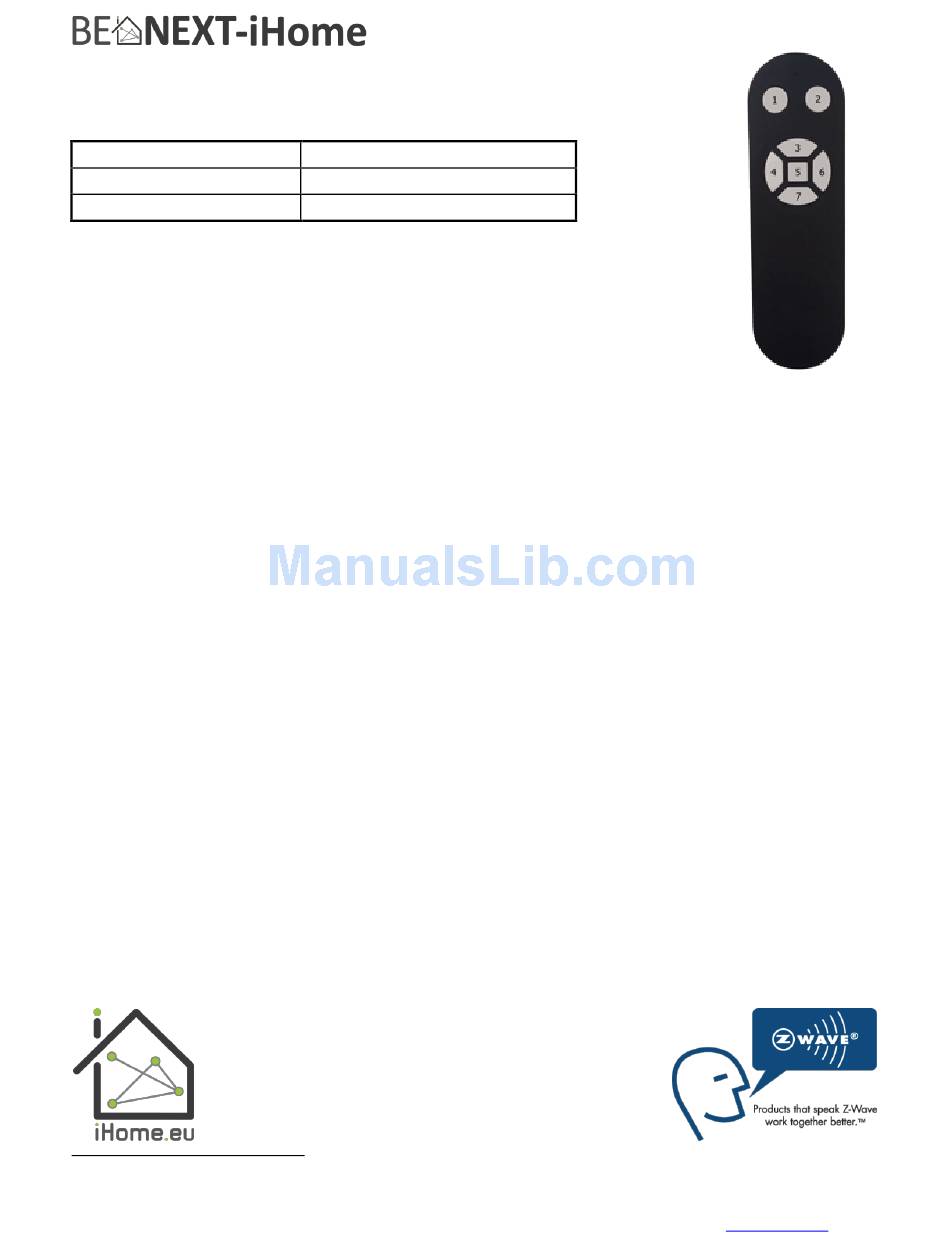

- Page 1 Quick start: Scene Controller EU Technical specs Normal operating voltage 2x AAA 1,5V batteries Frequency range 868.42 MHz Wireless Range Up to 30 meters in line of sight Basic operations Switch lifestyles Activate scenes Easy control your lights and curtains together by one pushbutton...
