Summary of Contents for Muvi Veho K-series

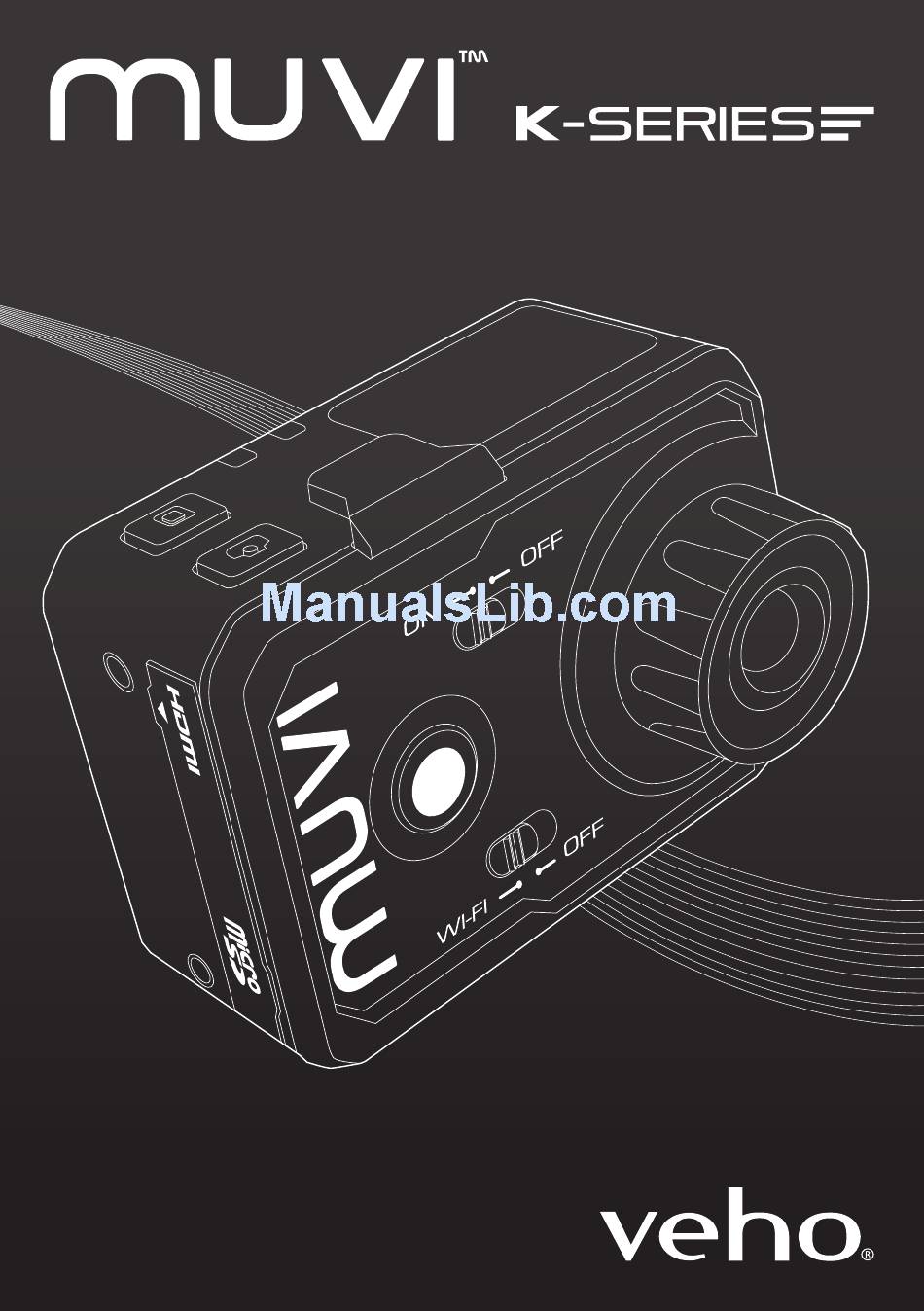

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    1. Introduction 2. Precautions Thank you for purchasing the Veho K-Series HD camcorder. Its small size, integrated When using the K-Series HD camcorder please adhere to the following precautions: design and easy to use functions mean that you can record and photograph anytime, Do not drop, knock or shake the camcorder.

  • Page 3: Tour Of Your Muvi K-Series

    3. Tour of your Muvi K-Series On/Off Switch Stop Record Button 14. Battery Lock Switch WiFi On/Off Switch Capture Button 15. Microphone Start Record Button 10. Microphone 16. Tripod Mount Lens 11. HDMI Port 17. Lanyard Hole Mini USB/AV Out Port Power Indicator (red) 18.

  • Page 4: Description Of Led Indicators

    4. Description of LED indicators Status Power Indicator Top LED Indicator Bottom LED Record Button (Red) (Blue) Indicators (Blue) Indicator Power On Solid On Recording Video Flash Slowly Solid On Recording Audio Flash Slowly Solid On Capturing Photo Flash Once Flash Once microSD Card Full Solid On Charging Flash Slowly Fully Charged...

  • Page 5: Getting Started

    Turn on the camcorder by moving the power switch on the front of the camcorder to the on position. The start-up Muvi logo will appear on the LCD display and the power indicator will turn red. Once the LCD display changes to the information display the camcorder is ready to use.

  • Page 6: Accessing Muvi K-Series Settings

    6. Accessing Muvi K-Series Settings 7 . General camcorder settings To enter the settings menu press and hold Enter the settings menu and then select the general camcorder settings menu. Use the start record button for three seconds. The the camera button and stop record button to move between the options. Press the camcorder symbol will appear on the LCD start record button to select the option you want to change.

  • Page 7: Switching Between Modes

    8. Switching between modes To switch between modes press and hold the start Set the date and time. See below for further information. record button for three seconds. Format the microSD card in the camcorder. Note: Formatting will delete all files, including protected ones. Restore the camcorder to the factory setting default.

  • Page 8: Video Recording

    9. Video Recording Audio Page 15 Make sure that a microSD card is inserted and turn the camcorder on. Select your preferred video mode and press the start record button on the front of the camcorder to start recording. The LEDs around the start record button will turn solid Settings Page 10 blue, the red status LED will turn off and the top LED indicator will flash blue.

  • Page 9: G-Sensor

    10. G-Sensor Choose between The G-Sensor mode on the K-Series camcorder is a camera movement activation function. This means that when the G-Sensor mode is turned on it will actively PAL (see page 11, NTSC (see page 11, sense a change in gravity, for example if it is knocked, tilted or moved, and will start camcorder settings) camcorder settings) recording automatically without needing to press the start record button.

  • Page 10: Photo Capture

    1 1. Photo capture Make sure that a microSD card is inserted and turn the camcorder on. Press the Set Fast Shot to capture 3 photos in 1 second, 6 photos in 1 second or 10 photos in 1 second camera button once on the top of the camcorder to enter photo mode.

  • Page 11: Download And Install App

    To connect to the Muvi K-Series app you will need to turn on the WiFi on the camcorder. Turn the camcorder on and then, once the LCD information display appears move the WiFi switch on the front of the camcorder to the WiFi position.
  • Page 12 To finish connecting to the app click on the arrows. If the WiFi connection has failed the app will ask if there was a failed connection. For iOS users select yes and the app will automatically start to try and connect again. If this fails exit the app and go the WiFi settings to connect to the camcorder again.

  • Page 13: Guide To Using The App

    14. Guide to using the app Video recording Photo capture Make sure that you are in video record mode by pressing the Video button. The Make sure that you are in photo capture mode by pressing the Photo button. The Video button will turn blue to indicate that it is in video record mode.
  • Page 14 Maximise the preview screen Close the preview screen You can maximise the preview screen in Video, Photo and Fast Shot mode. To You can close the preview screen in both normal and maximised screen modes. To maximise the preview screen press the maximise icon to the right of the preview close the preview tap the preview screen.
  • Page 15 Select yes to format the microSD card. Note: Formatting will delete all files Record Settings Version Shows the version of Muvi K-Series firmware that you have Size Set the resolution and frame rate for video capture Nesignation Shows the WiFi name of your Muvi K-Series camcorder...
  • Page 16 To play the video tap the play button in the To download multiple files press the centre of the screen. download icon in the bottom right hand corner, then tap the files you To move to the next video or photo slide your wish to download or select download finger across the screen to the left or to the all to download all files.
  • Page 17 Downloaded files To trim your videos tap the thumbnail of the video you wish to edit and then tap the edit icon To see the files that you have downloaded to your phone move the slider at the top of the screen from the camera icon to the phone icon. Back Menu Storyboard...

  • Page 18: K-Series Camcorder Specs

    15. K-Series Camcorder Specs You can use the expand frame button to stretch the storyboard for more accurate Camera Optics trimming. Use the narrow frame button to reduce the length of the storyboard. Minimum focal range 2.5cm To save your edited file press the menu button in the top right hand corner and Maximum focal range Endless select Save.
  • Page 19 Other Audio recording format WiFi transmission range Up to 60 metres Memory Up to 32GB microSD/microSDHC card Connections Mini USB, HDMI out, AV out Storage temperature -10°C ~ 60°C Operating temperature -10°C ~ 50°C Dimensions L59 x W43 x D35mm Weight...
  • Page 20 www.veho-world.com...
