X-vue K17 User Manual

Driving assistant system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
K17
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K17 and is the answer not in the manual?

Questions and answers

Related Manuals for X-vue K17

Summary of Contents for X-vue K17

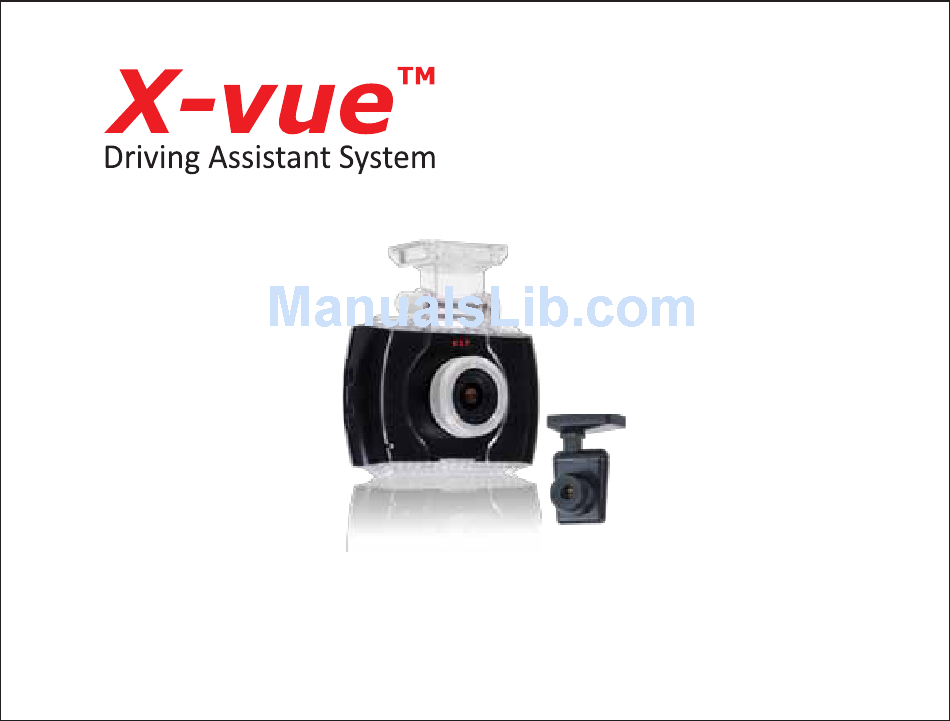

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    Contents Safety cautions Products Names and functions Components Installation requirements Installation Calibration Installation location by car model Product features Settings Functions Firmware upgrade Viewer program Warranty...

  • Page 3: Safety Cautions

    Warning for potential serious accidents or damages/injuries due to violation of instructions Do not put the product in any heating devices(stove, microwave oven, etc.) to dry when it is wet. It can cause deformation or malfunction for which free services are not available. Do not use chemical detergents(benzene, thinner, alcohol, etc.) to clean the product.
  • Page 4 Caution Items to check before use When driving on a road where there is no lane or it is difficult to see the lane When the lane is not continuous When GPS reception is not good in a busy city or due to a natural disaster When the sight is not good due to extreme weather (rain, snow, fog, etc.) When there are problems with tunnel entrances/exits or the headlights while driving at night When there is no light or the outside lighting changes abruptly...

  • Page 5: Products

    Products and functions AI safety driving assistant device It is a cutting-edge product with FCWS, LDWS and BLACKBOX(2CH simultaneous recording) function to deliver essential information for safety driving. Separate 2-channel camera views front and rear view simultaneously and you can check the view on the spot through 3.5”...

  • Page 6: Names And Functions

    Names and functions GPS receiver Holder Angle adjusting bolt Rear camera connection(R.Cam) Camera lens Micro SD card(M.SD) Speaker Audio input(MIC) Security warning light (Blue LED) Reset Power connection (DC 12V~24V) Direction indicator connection(T/C) GPS receiver connection(GPS) 3.5” Touch LCD Rear camera Power LED(Red LED) Security warning LED: In parking mode, it blinks rapidly when it detects physical impact or motion and warnsz that BlackBox is recording.

  • Page 7: Components

    Components User Manual Main body/holder Rear camera User manual Main Rear Holder Camera Micro Adapter Micro SD card Double-sided Power cable Direction indicator (built in the main body), tape for fixing, connecting cable SD card Adapter cable organizing clip Check whether all components are included as shown above after purchasing the product. Contact the store of your purchase if any component is damaged or does not perform properly.

  • Page 8: Installation Requirements

    Installation requirements Check the items below before installing the product: Make sure the surface for installation is flat and the engine is turned off. All essential parts/components are in the box; check and follow the installation instructions. The manual covers installation instructions for car, SUV, large van, bus and truck. For bus or truck, the installation is similar to that for cars except for the installation location;...

  • Page 9: Installation

    Installation How to install and adjust the position(calibration) Please install and follow the instructions in the manual details how to turn OFF the vehicle start mounting. 2. Place the taped holder horizontally 1. Place double-sided tape on the installation location (in the package box) (according to car models).
  • Page 10 Installation 5. Attach double-sided tape to the rear camera 6. Connect the power cable to the product to determine the installation location and attach main body, turn it on to apply power. it to the rear window. Connect the rear camera cable to the main body R.cam port.

  • Page 11: Calibration

    Calibration Step 1: Selecting car model Select car model. Calibration lines Car models: car, SUV, large van, bus (see page 12 in the manual) Horizon Step 2: Adjust horizontal and calibration line Park the vehicle in a place with open front space and flat ground. Virtual line Match the horizontal line(where the red dotted lines meet) to the yellow calibration line marked on the monitor and fix...

  • Page 12: Installation Location By Car Model

    Installation location by car model 4 car models are available for installation. Passenger car Install the product in top center of the windshield. Make sure the product is aligned horizontally. Select car mode l: Sedan SUV, mini van, small truck Install the product in top center of the windshield.
  • Page 13 Installation location by car model Large truck Horizontal position – Install in the center of the vehicle. Vertical position – For trucks, install 10cm higher than the wipers. 10cm Attach the holder horizontally and place the cables using the organizing clip not to block the driver’s sight.

  • Page 14: Product Features

    Product features LDWS(Lane Departure Warning System) - Driving assistant device with built-in automotive camera for safe driving by obtaining/analyzing videos of the road ahead and detecting and warning lane departure which can occur due to driver’s negligence, dozing off while driving, not seeing ahead, etc. - You can check LDWS video in the monitor.
  • Page 15 Product features FCWS(Forward Collision Warning System) - Driving assistant device with built-in automotive camera for safe driving by obtaining/analyzing videos of the road ahead and detecting and warning forward collision which can occur due to driver’s negligence, dozing off while driving, not seeing ahead, etc. - You can check FCWS video in the monitor.
  • Page 16 Product features BLACKBOX(Driving Video Recorder) It automatically records for 30 sec. of the status of front/rear condition before/after collision. GPS receiver saves the information on the time/location of collision as well as the video. Regardless of the level of collision, you can force to save 30-sec. video by pressing the manual(forced) save button. It saves the video whenever driving and you can check the video through the viewer program.

  • Page 17: Settings

    Settings Screen Moves to Settings menu (see page 18). Menu button appears by touching the screen while BlackBox is on. Displays the rear Displays the front view in real time. view in real time. BlackBox screen SD card recognized. No SD card. Forces to save the GPS receiver activated.
  • Page 18 Settings Menu Moves the saved videos to the BlackBox video list. (page 19) Sets driving impact, Sets recording quality, motion intensity, sound recording, etc. (page 20) volume, etc. (page 21) Menu Sets lane departure Sets front impact alert. (page 22)) alert.
  • Page 19 Settings Player Select the video list and press Play button. Displays video list of normal recording while driving Video list 2013 01_M_01.avi Displays video list of impact Previous list recording while driving. Play button 2013 02_M_02.avi Displays video list of parking 2013 03_M_03.avi Next list surveillance recording...
  • Page 20 Settings BLACKBOX Setting 1 Driving impact sensitivity Sets sensitivity of the impact on vehicles. - Options: (low sensitivity) -4, -3, -2, -1, 0, 1, 2, 3, 4(high sensitivity) Parking impact sensitivity Sets sensitivity of the impact while parking. Select Item - Options: (low sensitivity) -4, -3, -2, -1, 0, 1, 2, 3, 4(high sensitivity) 5min button...
  • Page 21 Settings BLACKBOX Setting 2 Recording quality Sets the video recording quality. - Options: Low, normal, high It is recommended to set the quality to high in normal (driving) and parking mode. However the storing capacity and time may be reduced. SD card lifespan may be shortened by setting the quality ‘high’.
  • Page 22 Settings LDWS setting LDWS Sets whether to activate LDWS - Options: OFF, ON Working Speed Sets the operation speed of LDWS. 60km - Options: 60km, 70km, 80km Left Warning Time Select Item Move to Menu button Sets the time of alert for the left lane. - Options: (slow) -2, -1, 0, 1, 2 (fast) Right Warning Time Sets the time of alert for the right lane.
  • Page 23 Settings FCWS Setting FCWS Sets whether to activate FCWS. - Options: OFF, ON Working speed Sets the operation speed of FCWS. - Options: 10km, 20km, 30km 10km Sedan Left Warning Time Sets the estimated time of collision with a vehicle ahead. Move to Menu - Options: (low sensitivity) 0.5, 1.0, 1.5 (high sensitivity) Select Item...

  • Page 24: Functions

    Functions Power ON/OFF Power is automatically applied once a car is started and the power light(red LED) is turned ON. The main body should be connected to the cigar jack power supply(normal power supply). Once booting is complete, input audio guide and run BlackBox. Motion detection, parking impact detection feature Parking surveillance feature runs automatically unless there is movement in parking mode.
  • Page 25 Functions Normal save It saves videos automatically once the power is ON; and saves videos in ‘Normal’ folder in Micro SD card. Impact save It detects impact with built-in G-sensor and saves 30-sec. videos in ‘Event’ folder. The power light(red LED) blinks rapidly to inform that impact video is being recorded. G-sensor sensitivity of impact save feature can be adjusted in driving impact sensitivity setting.
  • Page 26 Functions Micro-SD card Format - It initializes SD, which deletes all videos in the card. Save the videos in another storing device before initialization. - Micro-SD card warranty period: 3 months for free replacement period. Data won’t be saved. No free replacement is available for damage, waterlog and destruction. - When formatting a new Micro-SD card, format your computer to FAT32.

  • Page 27: Firmware Upgrade

    Firmware upgrade Read the followings carefully before upgrade. (contact the stores for upgrade files.) - Step 1: Copy the upgrade files onto the root directory of Micro-SD card. - Step 2: Turn the power OFF and insert Micro-SD card. - Step 3: Connect the power cable to the main body and turn the power ON. - Step 4: Wait for about 10~20 sec.

  • Page 28: Viewer Program

    Viewer program (PC Viewer) Run BlackBox viewer installation file in Micro-SD card and install by following the instructions. When installation is complete, click on the Open icon to open the viewer program. PC viewer screen Select normal recording Select impact recording Select parking surveillance recording Select front/rear video Select forced(manual) recording...
  • Page 29 Viewer program (PC Viewer) Switch Front/Rear Switch windows Switches front/rear and plays the video. Maximize Close program Select video folder to save the screen size Minimize Nomal : Normal recording video list the screen size 20130001 0231_M_001.avi Even t : Impact recording video list Motion : Parking surveillance recording video list 20130002 0232_M_002.avi Manual : Manual(forced) recording video list...

  • Page 30: Faq

    LDWS It takes a while to start when I use it in morning commute. – LDWS starts when driving faster than the speed set as LDWS speed (see page 22) after GPS reception. The alert goes off too often. – Change the time for left/right alert (see page 22). Set towards ‘slow’. What happen if it’s raining? –...

  • Page 31: Warranty

    Warranty Keep it safely along with the manual. Model Production No. Date of manufacturing Date of purchase Name Customer information Address Tel.( Name Store Address Tel.( Warranty details Free repair is available if the problem occurs within 1 year of warranty period from the date of purchase while using the product properly as instructed.
  • Page 32 Specifications Model Main features FCWS, LDWS, BlackBox, Parking surveillance Capacity Micro SDHC Class10 (supports up to 32GB) Front camera 2M HD 1280 x 720 VGA 640 x 480 Rear camera 3.5” Full touch wide Built-in Operating volt. DC 12V ~ 24V Operation/storing 0℃...
