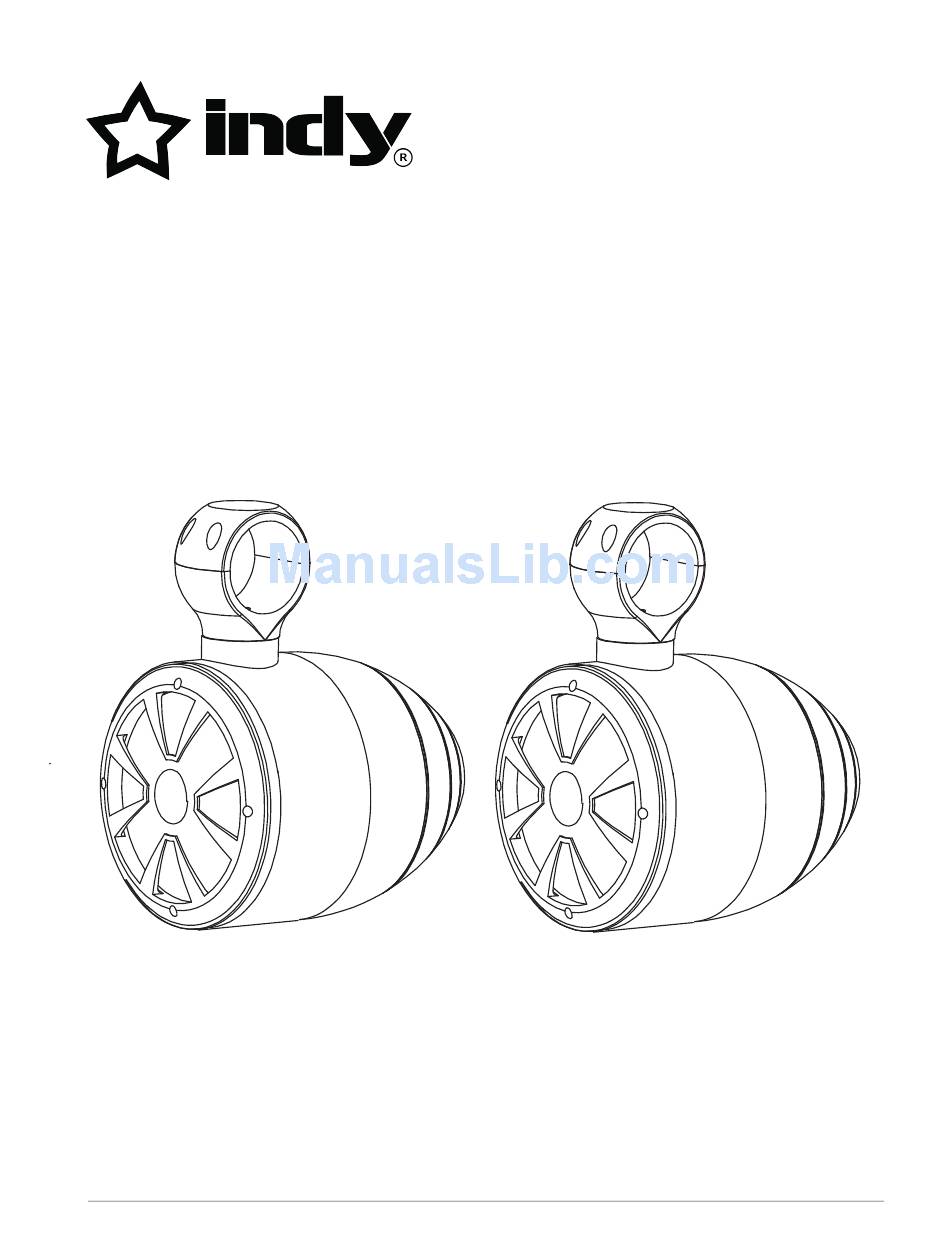

- Page 1 WAKEBOARD TOWER SPEAKERS INSTALLATION GUIDE Design Patent US and Australia...
- Page 2 EXPLODED VIEW OF THE INDY WAKEBOARD TOWER SPEAKERS STEP 1: Unpack and check the contents of the box Check the parts list and the Installation Guide corresponds with the product you purchased Ensure you have the correct tools to complete the Installation.
- Page 3 2 x Clamp (plus rubber collars) 12 x M6 long bolts for clamp 8 x Self Stainless Steel Screws 2 x Black Indy Logo Speaker Grills 2 x Aluminium Pods 2 x Indy Speakers Design Patent United States and Australia...
-
Page 4: Installation Guide
(B) Remove the top half C section of the clamp. (C) If your tower is 2.5inch no rubber collar is required. For your INDY tower use the rubber collar supplied the thinner one of the 2 supplied. Place the collar over the top of the tube, place the half C section of the clamp over the top. - Page 5 (B) After attaching the wires to the speakers you can insert the speaker into the pod, place the black Indy Grill over the speaker and line up the holes. Ensure the logo is in the correct position so you can read it.
- Page 6 Lifetime for the Alloy Clamps, pods. 12 months for the speakers. To claim you must contact Indy or its Distributor. The product/part is to be sent to the Distributor for inspection where it will either be repaired or replaced. (unless otherwise agreed in writing) The customer is liable for costs associated in shipping the product/part to Indy.
