Summary of Contents for Metalac INOX MC8N

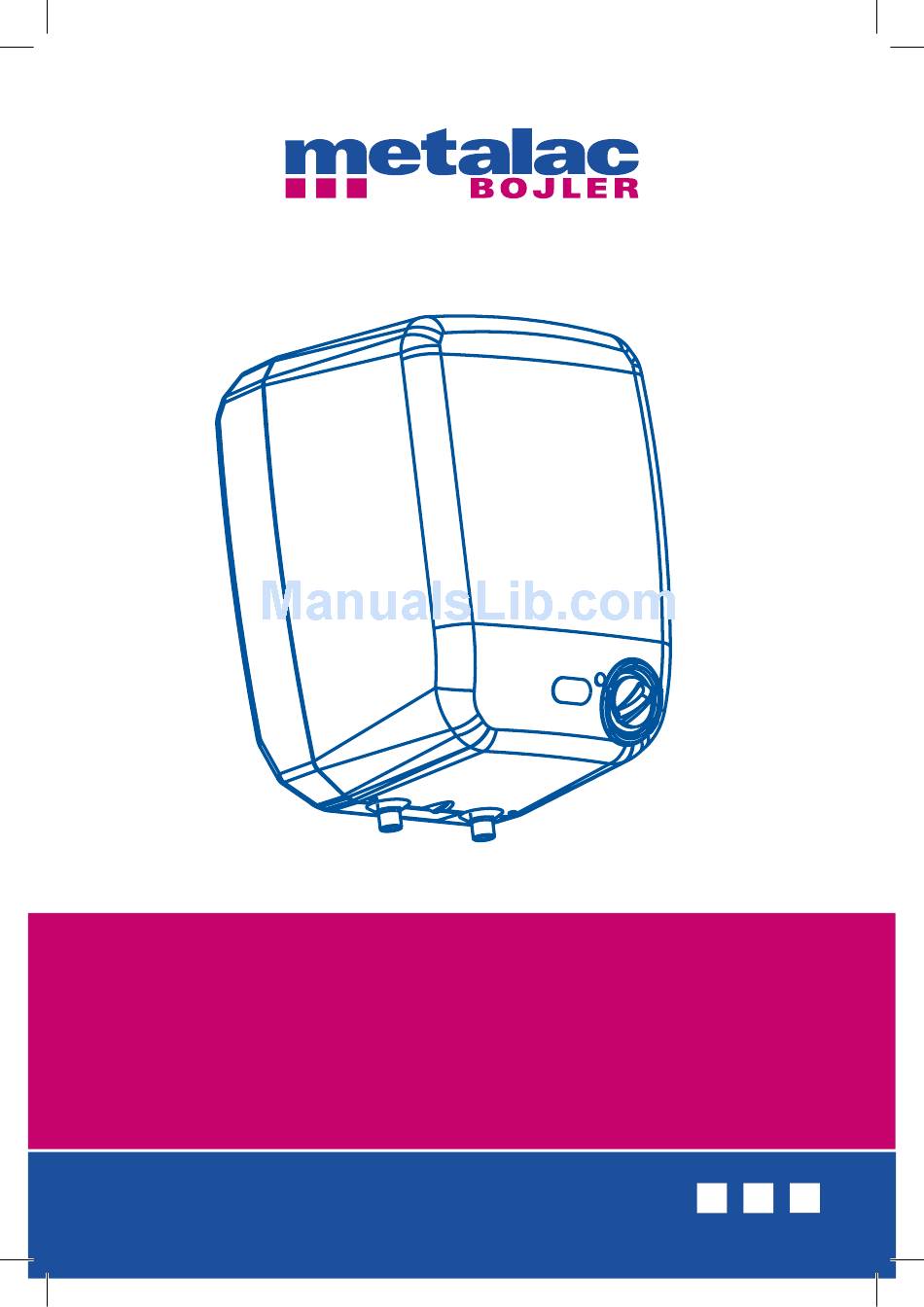

- Page 1 INSTRUCTIONS FOR INSTALLATION, USE AND CARE OF WATER HEATERS INOX MC 8 N , MC 8 P...
-
Page 2: Table Of Contents
CONTENTS TECHNICAL INFORMATION.............3 INSTALLATION .................3 CONNECTION TO WATER SUPPLY............5 STEPS FOR CONNECTION TO WATER SUPPLY.........6 CONNECTION TO POWER SUPPLY...........7 USE AND MAINTENACE..............7 WASTE DISPOSAL................8... -
Page 3: Technical Information
TECHNICAL INFORMATION Low capacity electrical water heaters are designed as open system without pressure. Water heaters are made according to valid standards and tested and certified by authorized laboratory. The appliance is not meant for persons (including children) of reduced psychophysical abilities, unless under supervision of per- sons responsable for their safety, i.e. - Page 4 Low capacity water heaters are available in two versions, for high (N) and low (P) installation, according to the picture 2. COLD WATER WATER WATER COLD CONNECTION TO WATER WATER SUPPLY N – wall/ high installation P – low installatiuon pict.
-
Page 5: Connection To Water Supply
Pict. 3 Connection and installation measures: TYPE MC 8 N MC 8 P A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) CONNECTION TO WATER SUPPLY Input for cold water on the water heater is marked with blue ring while hot water output is marked with a red ring, which is to be respected when connecting water heater to water supply. -
Page 6: Steps For Connection To Water Supply
If regular water pressure in the pipeline is higher than 0,6 Mpa (6 bar) a reduction valve has to be mounted on the cold water inlet connection. No device functioning with water should be installed to the water heater output (dispenser, mash...) neither pipe longer than 1,2 m, as it would increase pressure inside the tank and damage it. -
Page 7: Connection To Power Supply
Low installation scheme C.W. 1 interlocking valve 2 reduction valve H.W. 3 Non-return valve 4 Mixing unit /pipe CW cold water HW hot water Pict. 4 CONNECTION TO ELECTRIC POWER SUPPLY Low capacity water heater is connected to power supply only if tank is previously filled with water. -
Page 8: Waste Disposal
fied and left for recycling or final disposal according to loacal regulations. Only by waste separation and management you will protect the environment. Metalac Bojler Ljubicska 1, 32300 Gornji Milanovac, Serbia T. +381 32 717 432, 712 818 F. + 381 32 712 818 E.
