- Page 1 Nova 2000 UPPLEMENTAL PERATION ANUAL...
-
Page 2: Table Of Contents
ONE YEAR LIMITED WARRANTY Kaba Ilco Corp. warrants to the original buyer of any new model Nova 2000 machine that it will repair or replace, at its option, any part of any machine which proves, to the reasonable satisfaction of Kaba Ilco Corp. -
Page 3: General Safety
Safety begins with education, and continues with proper application … ALL per- sonnel who operate this machine should READ THE SUPPLIED OPERATOR’S MANUAL for information on how to properly operate the Nova 2000. The like- lihood of accidents and miscuts will be greatly reduced. -
Page 4: Introduction/Unpacking Instructions

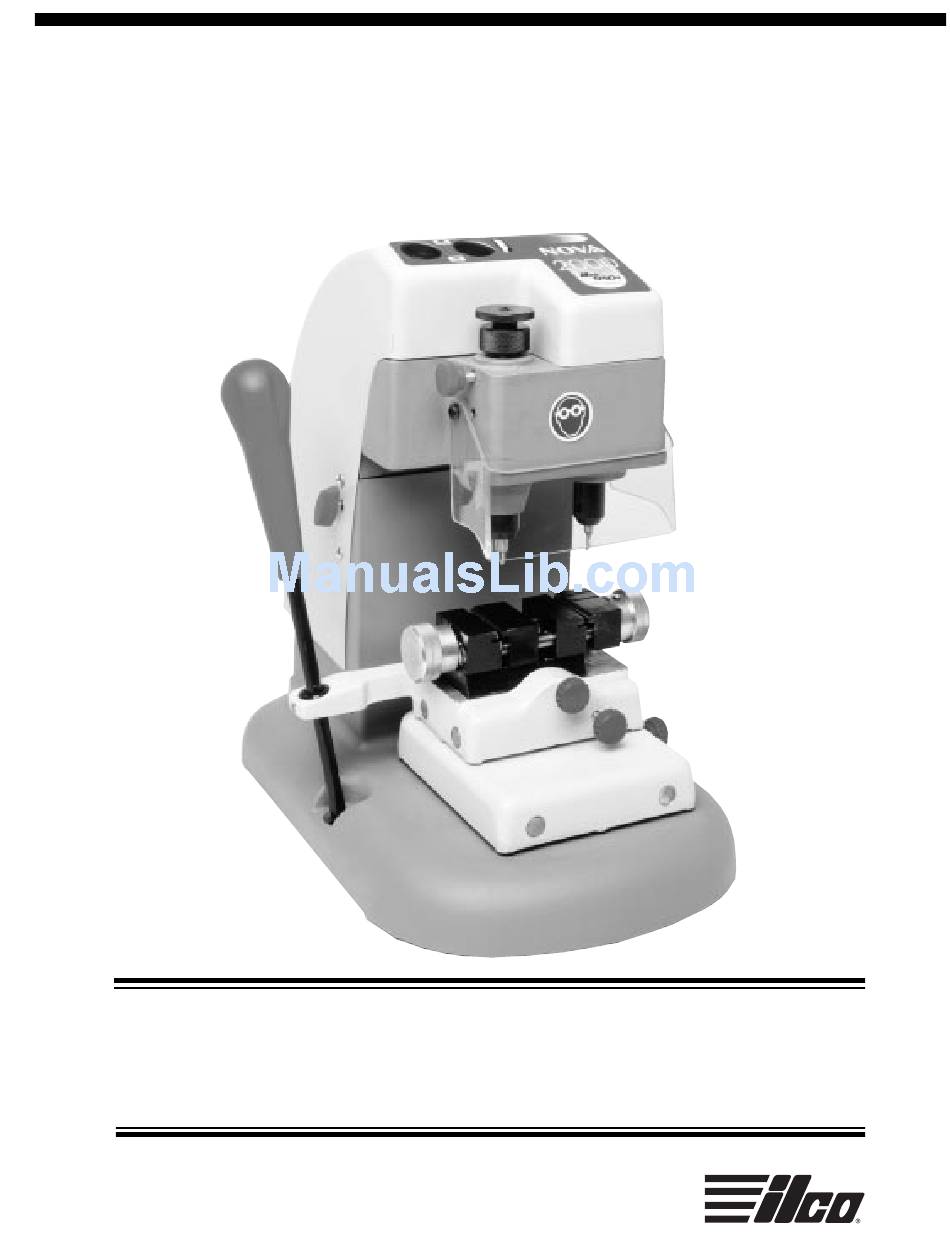

It is strongly recommended that this manual be thoroughly read by anyone who plans to operate the Nova 2000. Fig. 1 should be studied in order to learn the gen- eral operating parts of the machine and their nomenclature. -
Page 5: Operating Parts Identification (Names And Part Numbers)
Cutter Locking Screw Spring Mechanism Control Knob Right Lever Depth Adjusting Knob Left Vise Jaw Clamping Knob Depth Adjustment Locking Knob Vise Assembly Locking Knob Carriage Movement Lever Carriage Locking Knob Vertical Movement Locking Knob Nova 2000 Supplemental Operation Manual... -
Page 6: Parts List
EXPLODED VIEW - MECHANICAL Fig. 2 Nova 2000 Supplemental Operation Manual... -
Page 7: Exploded View (Electrical)
EXPLODED VIEW - ELECTRICAL Fig. 3 Nova 2000 Supplemental Operation Manual... -
Page 8: Basic Operation
2. Cutter/Cutter Guide Selection: The cutter and corresponding cutter guide installed on the Nova 2000 must be correct for the type key being cut (see chart on page 12). 3. Positioning of the Key Blank and Pattern Key: Also referred to as “gauging”, this... -
Page 9: Adjustment Of Cutter And Cutter Guide
6. If the cutter contact appears excessive, or there isn’t any contact at all, turn off the power switch and repeat step 4. This adjustment must be properly set to produce consistently accurate duplicate keys. Nova 2000 Supplemental Operation Manual... -
Page 10: Key Duplication Procedures
There are two general types of keys which can be duplicated on the Nova 2000; shoul- der gauged keys and tip gauged keys. These... - Page 11 4. Keep a small brush near the Nova 2000 at all times. Don’t allow key shavings to accumulate on the machine; brushing the vise jaws off after every couple of keys is very important and can help prevent miscuts.
-
Page 12: Optional Accessories
(6 cuts and 4 angles) Ford Jaguar D705322ZB Decoder - Will reconstruct ®/ ® Tibbe andidentify the depth of cuts on a key (6 cut/3 angle version) © Kaba Ilco Corp - August 2001 Nova 2000 Supplemental Operation Manual...
