Summary of Contents for TechnoVap CARMEN PLUS INOX JET VAC ULTIMA GUM GO

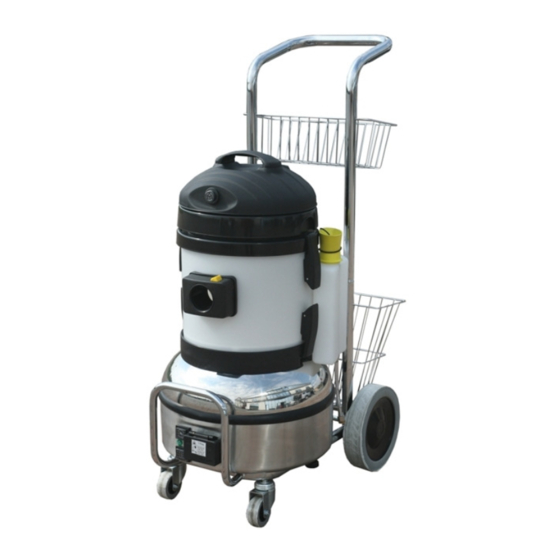

- Page 1 CARMEN PLUS INOX JET VAC ULTIMA GUM GO USING INSTRUCTION ENGLISH...
- Page 2 Interpretation of the symbols placed on the unit BEFORE USING THE STEAM GENERATOR, READ AND FOLLOW THIS INSTRUCTION MANUAL. IT IS RECOMMENDED TO KEEP THIS INSTRUCTION MANUAL TO CONSULT IT LATER OR TO GIVE IT TO THE FOLLOWING OWNERS. PLEASE READ THE SAFETY INSTRUCTIONS ON THIS HANDBOOK BEFORE PROCEEDING ON THE FIRST USE. EVENTUAL DAMAGES DUED TO THE CARRIAGE MUST BE COMUNICATED AS SOON AS POSSIBLE TO YOUR OWN RETAILER.
-
Page 3: Table Of Contents
SUMMARY SUMMARY SECURITY REGULATIONS TECHNICAL CHARACTERISTICS PREFACE TECHNICAL DRAWINGS NOMENCLATURE OPERATING INSTRUCTIONS MAINTENANCE BEFORE REFERRING TO THE TECHNICAL SERVICE DECLARATION OF CONFORMITY 2. SAFETY REGULATIONS The electric supply connection shall be made by a qualified electrician and comply with IEC 60364-1. It is recommended that the electric supply to this machine should include either a residual current device that will interrupt the supply if the leakage current to earth exceeds 30ma for 30ms or a device, which will prove the earth circuit. -
Page 4: Technical Characteristics
ATTENTION. Pressure hoses, fitting and couplings are important for the safety of the machine. Use only hoses, fitting and couplings recommended by the manufacturer. Do not use the machine if the power cord or other important parts of the machine are damaged, i.e. safety devices, pressure hoses and trigger gun. -
Page 5: Technical Drawings
TECHNICAL DRAWINGS CARMEN PLUS INOX... - Page 6 ACCESSORIES...
-
Page 8: Nomenclature
NOMENCLATURE 1) Vacuum motor 38) Vacuum switch 2) Vacuum power switch 40) Locking latches for accessories 3) Clamping hooks for vacuum drum 41) Extension tubes with O-rings 4) Vacuum drum (5 liters) 42) Turbo lance steam + vac 5) Locking latch vacuum outlet 43) Small nylon brush Ø... - Page 9 (d) If using detergent please follow the specific instructions: 1/3 liter detergent for every 3 liters water (about 10% is the detergent percentage), making sure to fill in first the detergent to obtain a better mixing. (e) Insert the plug (22) into an electrical outlet, making sure that the voltage and the amperage correspond with those printed near the handlebar on the machine.
-
Page 10: Maintenance
Turbo lance steam/vac (42): to be used by itself with the small round brushes (43-46, 49) or with steam plunger (47) and steam scraper (48) according to the cleaning job to be executed. If necessary, attach the extension tubes (41) and lock them into place using the clamping units (40) in BLOCK position. -
Page 11: Before Referring To The Technical Service
electric outlet and proceed by replacing the drain cap (24). Once again plug the power cord (22) into the electric outlet and activate the power switch only (8). It is recommended to activate also the command switch (36) for minimum steam on the handgrip to release the air contained in the empty boiler. Wait for the completed cycle of refilling from the pump (approx. -
Page 12: Declaration Of Conformity
DECLARATION OF CONFORMITY DICHIARAZIONE DI CONFORMITA’ CE (EC DECLARATION OF CONFORMITY) TECNOVAP S.R.L. con la presente dichiara che: le macchine per pulizia a vapore modello: (Certifies that the steam cleaning machine model): Chattanooga Carmen Plus Risultano conformi alle specifiche delle direttive (conforms to the specifications of directives) 2006/95/CE 2004/108/CE 2006/42/CE 2002/95/CE Per il controllo della conformità...
