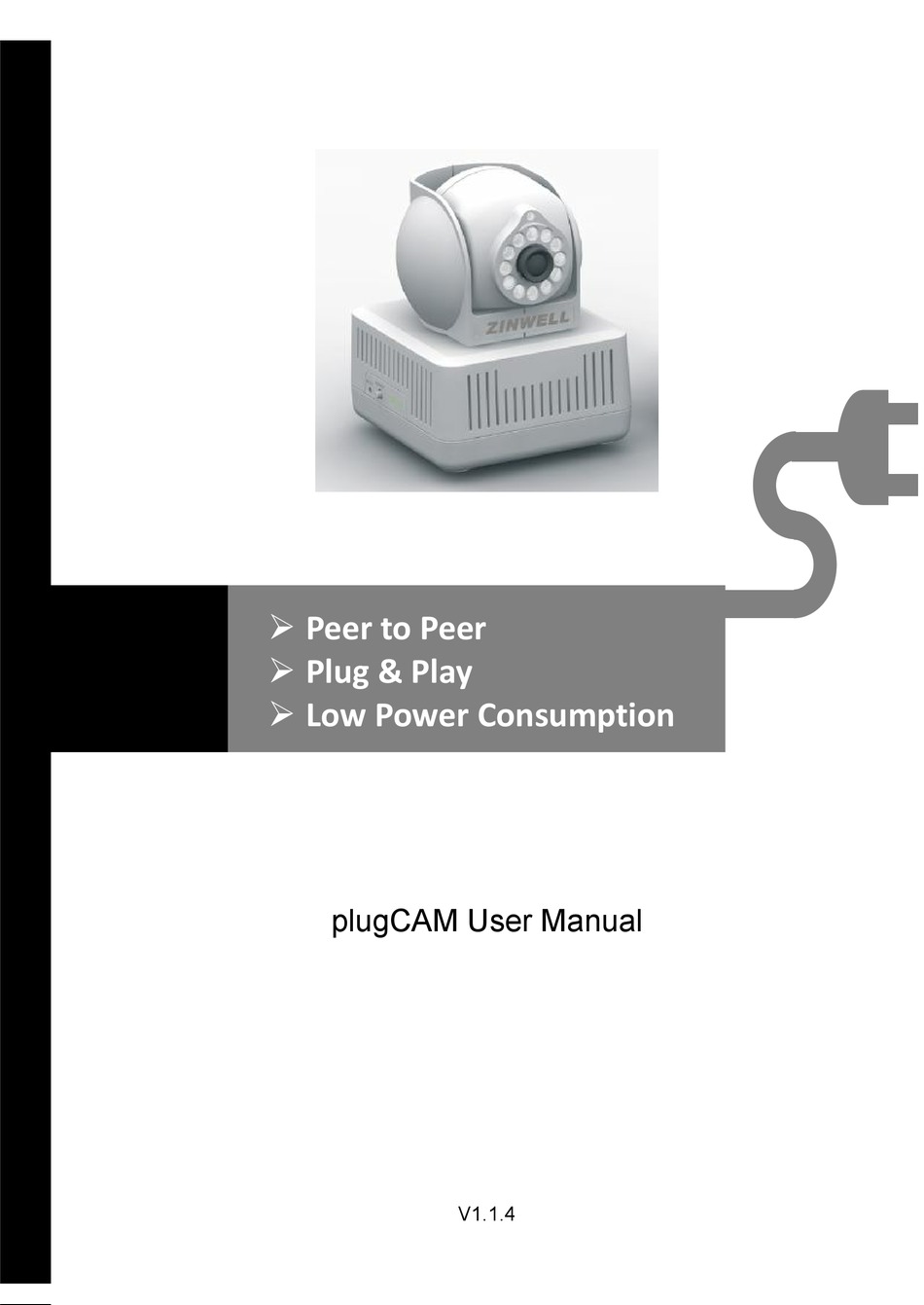

  • Page 1  Peer to Peer  Plug & Play  Low Power Consumption plugCAM User Manual V1.1.4...

  • Page 2: Table Of Contents

    Table of contents Introduction……………………………………….………………………………………..P.3 Introducing plugCAM Hardware installation Installation scenarios Installing plugCAM App Installing at iDevices Installing at Android system Overview Main screen Tools Getting started …………….………………………..…………………………………...P.10 Add camera Scan QR code Search cameras Add manually View images Select camera...

  • Page 3: Introduction

    Introduction ◎ Introducing plugCAM Button/LED Descriptions Item name Description Can rotate horizontally 135 degree to the right and to the left. Eyeball cover Can rotate 0 to 90 degree, pointing the lens from horizontal to Eyeball vertical. Lens Lens with IR reflection coating...

  • Page 4: Hardware Installation

    Plug the other end of this AC cord to a wall electric connector socket socket. Package Content 1. Camera & PLC 2. Power cord 3. Ethernet cable 4. Nails (x2 sets) ※ Hardware Installation Camera: Place your plugCAM camera anywhere in the house and power on camera.

  • Page 5: Installation Scenarios

    2. Plug power cord to camera. 3. Connect the cord to power outlet and camera will start working automatically. light sensor You can check that camera is working properly by covering the light sensor above lens and see if LED light bulbs dim red. PLC: (1) Connect Wi-Fi router and PLC with Ethernet cable (2) Plug PLC on power outlet...
  • Page 6 Nails Wall Electric socket Wall mounted using side screw hanging hole Wall Electric socket Put on desk top or top of furniture. Please note the surface of furniture should have enough roughness to provide enough friction for this device. Otherwise, apply adhesive glue to fix the camera on the furniture. Wall Desk or any Electric...
  • Page 7 Wall Tripod Electric socket...

  • Page 8: Installing Plugcam App

    ※ Installing plugCAM App 1. Search the free “ plugCAM “ program on Apple App Store or Google Play ※ Installing at iDevices ※ Installing at Android system...

  • Page 9: Overview

    Add in new cameras Delete unwanted items Camera list docking area Viewing tools Tools Show albums list, view and delete pictures from Show camera list, delete or add in new cameras individual cameras Change App settings Show App and plugCAM product information...

  • Page 10: Getting Started

    Scan QR code 1. Tap on to start QR code scan 2. Scan the QR code sticker on the bottom of plugCAM, ID and password will show up automatically if scan successful 3. “Save” to add in camera list Local search Make sure your camera and mobile device are under the same network, then tap on to search new camera.

  • Page 11: Add Manually

    3. Enter password of the just found camera and tap on “Save” to add in camera list Add manually 1. Tap on (1) Input camera ID (2) Input camera password (3) Tap on “Save” to add in camera list...

  • Page 12: View Images

    3. If the camera is shown offline, please check if you have installed the camera properly 4. If the camera is well-connected to network, you can view the image successfully. Rotate your device to see full screen image. Select camera to show up camera list and choose the plugCAM you want to view...

  • Page 13: Take A Snap Shot

    Take a snap shot 1. When successfully view the image, tap the icon to take a quick shot of your view 2. The pictures will be saved in the albums Reload camera to reload the camera image...
  • Page 14 QR code scan 1. Tap on to start QR code scan 2. Scan the QR code sticker on the bottom of plugCAM, ID and password will show up automatically if scan successful 3. “Save” to add in camera list Local search Make sure your camera and mobile device are under the same network, then tap on to search new camera.
  • Page 15 3. Enter password of the just found camera and tap on “Save” to add in camera list Add Manually 1. Tap on (1) Input camera ID (2) Input camera password...
  • Page 16 (3) Tap on “Save” to add in camera list ※ View images 1. Tap on the camera you want to view on camera list 2. If ID and Password are all correct, program will start loading camera image 3. If the camera is well-connected to network, you can view the image successfully. Tap on the picture again to view larger image Select camera 1.
  • Page 17 2. Tap on the camera you want to view Take a snap shot 1. When successfully view the image, tap the icon to take a quick shot of your view 2. The pictures will be saved in the albums...

  • Page 18: Edit

    Edit Edit - iOS Delete cameras 1. Tap to show up camera list, Tap “Edit” to delete camera 2. Tap “Done” to save changes Change camera name 1. Tap to choose a camera (1) Tap “Edit” to enter the camera settings...

  • Page 19: Change Password

    (2) Tap on the camera name to change it (3) “Save” to save changes Change password View mode Video resolution...

  • Page 20: Video Quality

    Video quality Video frequency Arrange Image...
  • Page 21 i.e. Flip Vertical: Time & date 1. The default setting is Off, tap “On” to turn on time & date information 2. Tap “Done” to confirm, then time & date will show up on the viewing screen...
  • Page 22 Save and apply the changes You may tap on to save each change, or tap on after all setting are done. 1. Tap “YES” to confirm setting changes...
  • Page 23 Edit – Andriod OS Delete cameras 1. Tap to show up camera list, tap “Edit” to delete camera Change camera name 1. Tap to choose a camera (1) Tap “Edit” to enter the camera settings...
  • Page 24 (2) Tap on the camera name to change it (3) “Save” to save changes Change password View Mode Video resolution...
  • Page 25 Video quality Video frequency Arrange image...

  • Page 26: Show Time & Date

    Show time & date...

  • Page 27: Albums

    Albums Albums - iOS View albums to start Delete albums 1. Tap “Edit”, then “Delete” -> “Done” to confirm View pictues 1. Choose an album and tap on the picture you want to see for larger view...
  • Page 28 2. Tap on to Delete, Email, and Save picture You can only process one picture at a time...
  • Page 29 Albums – Andriod OS View albums to start Delete albums Tap “Edit”, then “Delete” -> “Delete Selected Album” to confirm View pictures 1. Tap on the album you want to view 2. Tap on the picture you want to see to view larger image...
  • Page 30 Delete pictures 1. Tap “Edit” when you are in an album 2. Choose pictures you want to delete You can only process one picture at a time...

  • Page 31: App Settings

    Passcode lock Default “Off”. Turn on Passcode lock can help prevent others connect to your plugCAM without your permission. You must enter correct passcode every time when starting the plugCAM program after turning on this function. Turn on passcode 1.

  • Page 32: Turn Off

    Turn off passcode 1. Tap on the passcode lock 2. Enter passcode again to turn off passcode lock Background skin 1. Tap on Background skin 2. Default gray. Choose a color for your background.
  • Page 33 Passcode lock Default “Off”. Turn on Passcode lock can help prevent others connect to your plugCAM without your permission. You must enter correct passcode every time when starting the plugCAM program after turning on this function. Turn on passcode 1.
  • Page 34 Background skin 1. Tap on Background skin 2. Default gray. Choose a color for your background.

  • Page 35: About

    About About - iOS to start Show software version & Product information...
  • Page 36 About – Andriod OS to start Show software version & Product information...

  • Page 37: Pc Software Instruction

    PC software instruction 1. Install software Insert the software CD to your CD-R device, start the installation according to your language. (1) Double click to start installation (2) Set-up will start automatically (3) Click “ Next > ” to enter PC information (4) Choose set-up type and click “...
  • Page 38 (5) Procedure complete automatically (6) You can see the plugCAM program and the icon after installation successfully Startup menu Short cut on desktop...
  • Page 39 Program main screen Main function Set snap shot and video recording path Playback video recording Display setting 4 channels 6 channels 9 channels (default) plugCAM settings...

  • Page 40: Search Device In Local Network

    Edit device Basic Info/Alarm Setting /Schedule recording Edit Device Setting: Add a new device on display channel Add in new device: Delete the selected device from display channel Delete selected device: Start connection with camera device Start up camera: Stop connection with camera device Disconnect camera Display channel View via...
  • Page 41 (2) Click to add in a new plugCAM device (3) Click search to find plugCAM in the same network, wait for plugCAM ID show then type in password, press “ Save “ to confirm (4) Click to start up camera...

  • Page 42: Add Device In Pc Program Manually

    3. Add device in PC program manually (1) Select an empty channel (2) Click to add in a new plugCAM device (3) Type in ID and password, press “ Save “ to confirm...
  • Page 43 (4) Click to start up camera (5) plugCAM image will show on the display channel...

  • Page 44: Create Private Encrypted Plc Network

    REATE RIVATE ENCRYPTED NETWORK This product is a HomePlug AV powerline device. Each powerline device has predefined attributes of Powerline network name. Multiple Powerline devices with same network names can communicate with one another, and thus belonging to a same PLC network group. Devices with different network name won’t communicate.
  • Page 45 Remove a device from a network Group For example, device A and device B are in the same logical network group, if uses want to remove device A from this logical network group, just follow the procedure in Step 1 by pressing GROUP button of device A for 10 seconds.

  • Page 46: Spec Sheet

    PEC SHEET Electric AC Input 100 to 240V AC, 50/60Hz Ethernet port power connector Euro8 connector Mounting Screw inlets (side, bottom), Tripod mounting thread Camera Sensor (1) 1/4 -inch CMOS VGA sensor, (2) brightness sensor Up to 7 fps @ 640*480 in LAN Resolution Up to 20 fps @ 320*240 in LAN Up to 30 fps @ 160*120 in LAN...
