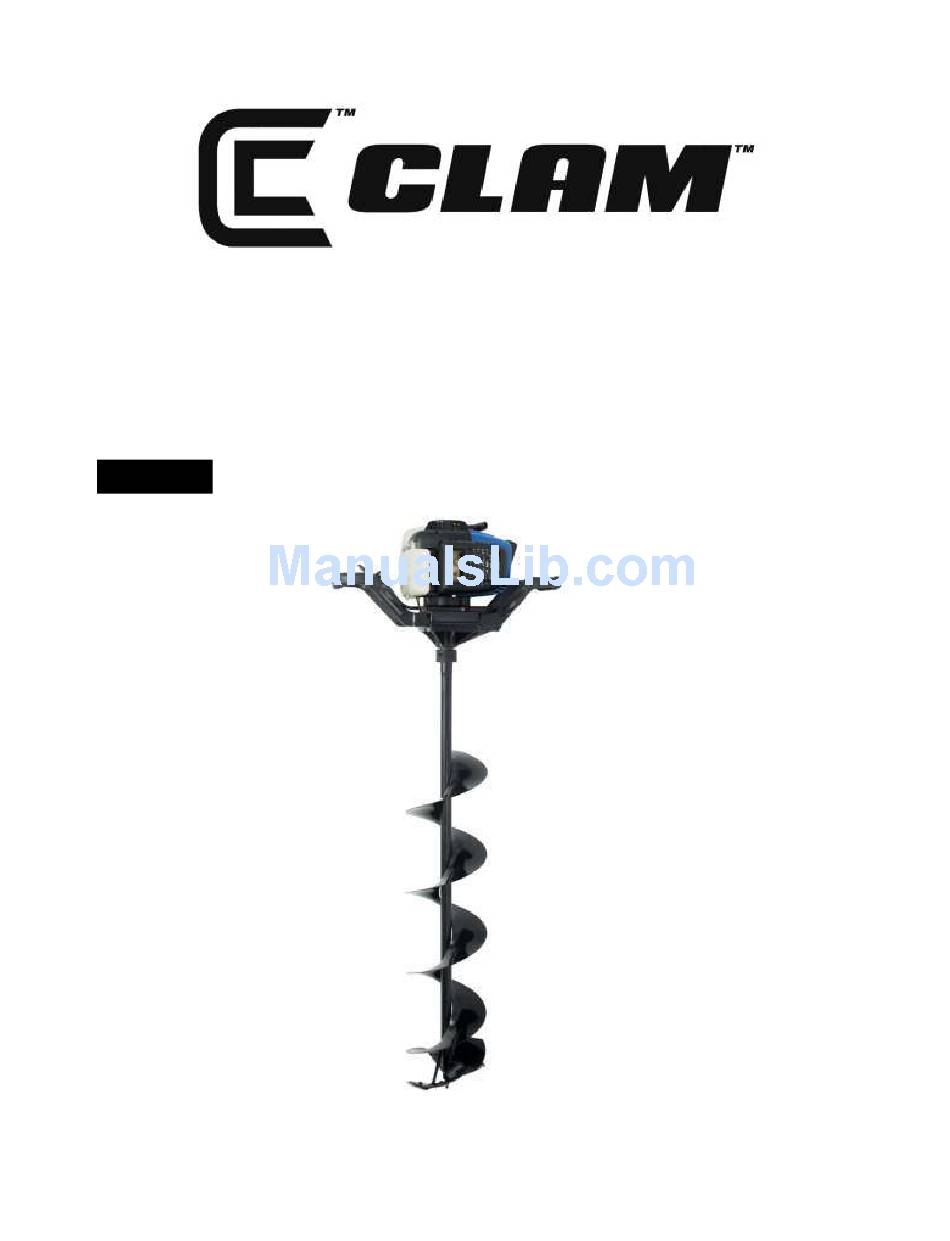

- Page 1 EDGE™ POWER AUGERS OPERATING AND PARTS MANUAL 104081 Clam Corporation 12135 Brockton Lane N. •Rogers, MN 55374 Phone ( 763)231-4120 • Fax (763)231-4121 www.clamoutdoors.com...
- Page 2 4. Person(s) using this auger should weigh a minimum of 100 lbs., and not be under the influence of any chemicals or mind-altering substances. The Edge auger operates with a lot of torque and speed, and the operator must be fully aware and prepared for that during its use.
- Page 3 1. Recoil (starter) Handle 9. Choke Lever 2. Fuel Cap 10. Transmission 3. Fuel Tank 11. Stop Switch 4. Full Fuel Level 12. Spark Plug Cap 5. Decompression Button 13. Recoil 6. Throttle L e v e r 14. Muffler Guard 7.
- Page 4 Tighten with the provided Allen wrench. Verify the bolt is tight on a regular basis between uses. Verifying your Edge auger is ready to start 1. Make sure there is free movement of the throttle lever. Verify it can be fully depressed and then return to its “idle”...
- Page 5 ONCE PROPER FUEL/OIL MIX HAS BEEN BLENDED, POUR GAS FROM AN APPROVED, SAFE CONTAINER INTO FUEL TANK UNTIL FLUID LEVEL REACHES THE “FULL” LEVEL. ITEM #4 ON PAGE 2 –DO NOT OVERFILL REINSTALL FUEL CAP BACK ONTO FUEL TANK YOUR CLAM EDGE AUGER IS NOW READY TO BE STARTED!
- Page 6 “Run” position) 4. Pull the recoil handle in short, fast pulls. If your Edge auger doesn’t start on the first pull, you will need to push in the decompression button again. Note: each time you pull on the recoil handle to start the engine, you will need to reset the decompression button.
- Page 7 Maintenance of your Edge auger Spark plug inspection and replacement You should inspect your spark plug for proper gap after approximately every 50 hours of use For optimum performance, the spark plug gap should measure .019” Replace when electrodes have become badly worn-or approximately every 100 hours of use 1.
-
Page 8: Limited Warranty
Limited Warranty You Edge auger has a warranty that will cover the cost of replacing parts that are found to be defective from the manufacturer. The initial purchaser has a 2 year warranty on the engine through Central Power Distributors-including the emissions system, while Clam Corp.
