Summary of Contents for KitchenAid KSSS48DBX00

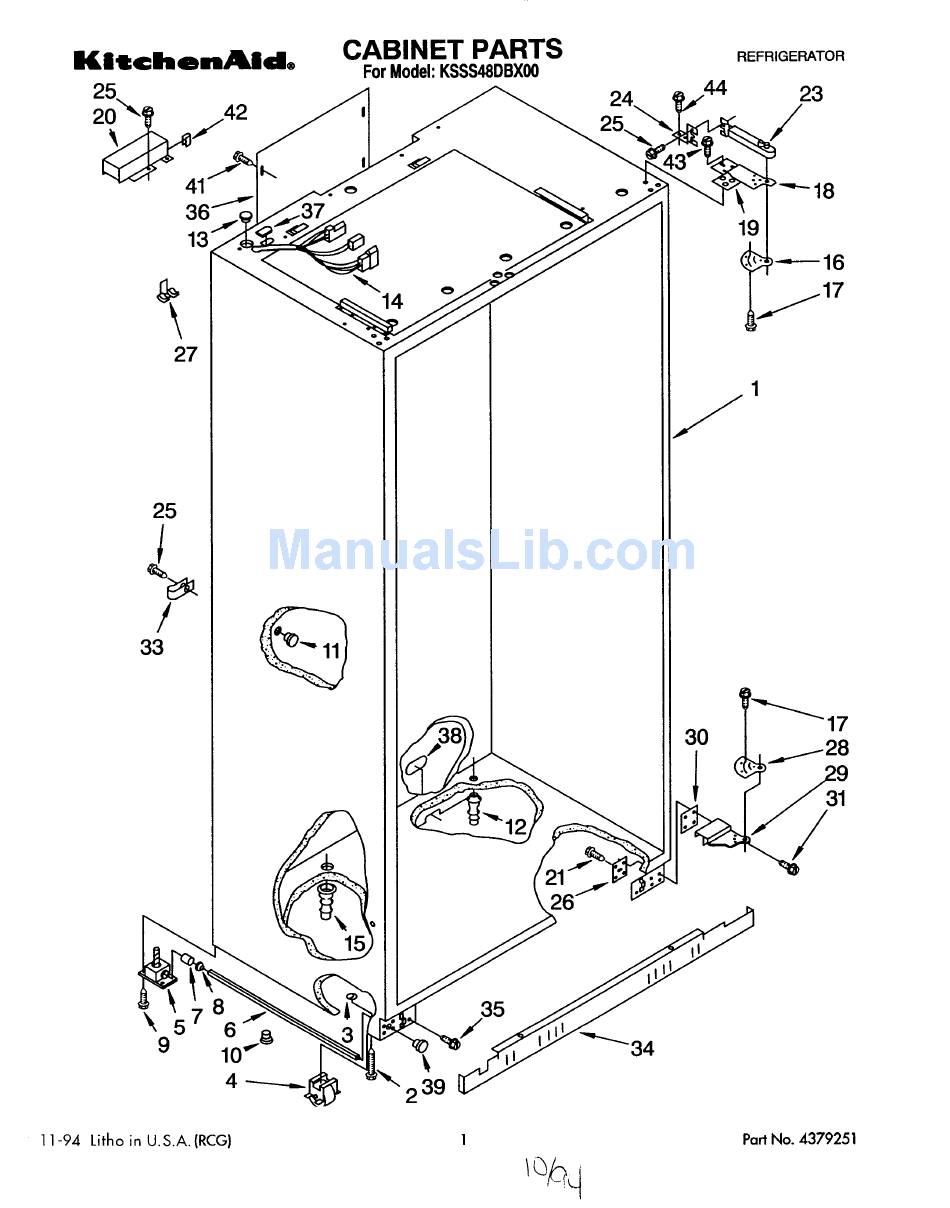

- Page 2 Cabinet (Not A Serviceable Part) 1112019 Leveler, Front (2) 1113249 Retainer (2) 1112023 Roller, Front & Rear (4) 1112695 Leveler, Adjustable (2) 2000670 Adjusting Rod (2) 1113250 Sleeve, Retainer (2) 1112937 Bushing, Rod (2) 489359 Screw 1112939 Hole Plug, Leveler 1112849 Cap, Grommet 1112970...
- Page 4 2000321 Cabinet, Trim R.S 2000322 Cabinet, Trim L.S 2001297 Screw 2001190 Cabinet, Trim (Bottom) 488649 Screw 2001311 Cabinet, Trim Top 2000007 Retainer, Unit Base (2) 487944 Washer (2)
- Page 6 LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2000740 Meat Pan, Air Duct Cover (Also Order 12) 2000337 Meat Pan, Air Duct 2001302 Inlay, Control Meat Pan 2001326...
- Page 8 Liner (Not A Serviceable Part) 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 992720 Stud, Support (4) 486194 Screw 1112591 Spacer, Control Panel (3) 842534 Clip, Air Duct (4) 1112260 Support, Evaporator 658944 Stud, Shelf (8) 487559 Screw...
- Page 10 Spacer, Track 1112282 Left Side 1112281 Right Side 1113870 Roller 1113871 Eyelet, Roller 1113169 Stop, Roller 488307 Washer 486194 Screw 1113127 Bracket, Motor 2155262 Motor Assembly 489399 Screw 983663 Coupling, Motor 1112613 Socket, Light 1113130 Cover, Motor 487294 Screw 1112287 Ice Container 1112378 Conveyor...
- Page 12 1112004 Frame, Shelf 1113956 Glass, Shelf 1112006 Reflector, Shelf 1113792 Gasket, Glass (2) 1125913 Rack, Wine 2002181 Retainer Glass 1112014 Frame Assembly 1112247 Cover, Crisper 2002148 Glass, Crisper 2000742 Meat, Pan Connector 2000554 Crisper Pan 1113870 Roller 1113871 Eyelet, Roller 489211 Screw 488307...
- Page 14 2000695 Door Panel, Refrigerator (Also Order Item 29) 939101 Screw Anchor (8) 2000696 Hinge Assembly, Top 2000303 Spacer 489282 Screw 2000698 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112542 Gasket Retainer, Top & Bottom 2001049 Door Gasket, Magnetic 489101...
- Page 16 2001138 Exterior Door Panel, Freezer (Includes Insulation) 1112997 Tube, Wiring 1112928 Retainer, Tube 2000720 Hinge, Bottom 489282 Screw 2000721 Hinge, Top 2000303 Spacer Plate 2000697 Door, Spacer Bottom 2001323 Wiring Harness, Freezer Door 1112533 Gasket Retainer, Side (2) 1112539 Gasket Retainer, Top & Bottom 2000878 Door Gasket, Magnetic 489101...
- Page 18 1107943 Housing, Dispenser 987049 Bracket, Water Fitting 2155018 Water Fitting Assembly (Includes Water Tube) 487916 Screw Water Tube (See Item #3) 488316 Screw 987048 Grommet 2001334 Heater, Ice Dispenser 2147167 Ice Door Mechanism 2147168 Door, Ice 1129333 Shroud 489000 Screw 1127421 Lever, Ice Dispenser 987917...
- Page 20 2001929 Assembly, Unit Base 2163787 Clip, Compressor Mounting (4) 2169273 Compressor (Includes Items 7, 8, 9, 10, 11 & 12) (Also Order) 876765 Tube Kit 2163786 Grommet, Mounting 1127675 Wire Assembly 2162362 Overload (Includes Relay) 1108115 Terminal Cover 938384 Strap, Cover Relay (See Overload) Capacitor 2169137...
- Page 22 2000528 Defrost Bi-Metal 1113043 Clamp, Bi-Metal 486194 Screw 2002186 Sleeve 2002171 Sleeve 2002184 Condenser Inlet Tube 2002408 Tube, Connect (Drier) 2000756 Heater, Drain Pan 1113062 Hanger, Heater 1113105 Bracket, Heater 487534 Screw 2002381 Tube, Discharge 2002187 Sleeve 2002403 Heat Exchanger 2001133 Evaporator 2001608...
- Page 24 2001086 Fan Motor 488908 Screw 2154800 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2000618 Motor, Wiring 488366 Clamp 489348 Clamp, Nylon 2000113 Channel, Wiring 2150347 Union 2000783 Scroll, Fan 488772 Screw 2000746 Assembly, Air Duct 2000048 Air Deflector, Icemaker 1112870...
- Page 26 489084 Screw 2000829 Fitting, Water Tube 2001087 Clamp, Tube 841707 Insert, Tube 628379 Clip, Fuse 2000392 Wire Clip 2001260 Tube, Water (To Ice Maker) 1106508 Seal Gasket 487627 Sleeve, Nut 2002182 Valve, Solenoid 627018 Nut, Compression 227991 Connector, Wire 2000836 Water Valve, Harness 2001320 Copper, Water Line...
- Page 27 LIT2002469 Installation Instructions...
- Page 29 2001317 Decorative Panel Assembly 1113356 Back Up Panel 2002664 Top Grille Assembly 2001883 Cover, Unit 486194 Screw 2001874 Cover, Component Assembly 1113317 Brace...
- Page 31 1112367 Solid Shelf 2000529 Front, Ice Compartment 1112052 Shelf, Fixed 1113638 Shelf, Fixes (2) (Large) 1113644 Trim, Basket 1113870 Roller 1113871 Eyelet, Roller 489211 Screw 488307 Washer 2001626 Basket 2000061 Slide, Basket R.S. 2000062 Slide, Basket L.S. 1113169 Stop, Roller 486194 Screw...
- Page 33 1112642 Control Panel 2000976 Inlay, Control Panel 2000789 Circuit Board 2001738 Control Knob 837444 Retainer, Knob 1108112 Switch, Rocker Arm 1113137 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 1113775 Shield, Control Panel 1112613 Socket, Light (2) 547225 Light Bulb (2) 486194 Screw...
- Page 35 1112597 Control Panel 1113959 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 851387 Switch, Rocker Arm (Dispenser Motor) 1113136 Seal, Control Panel 489260 Screw (3) 1113769 Shield, Control Panel 1112613 Socket, Light 486194 Screw 547225 Light Bulb 1112707 Channel, Wiring 1108112...
