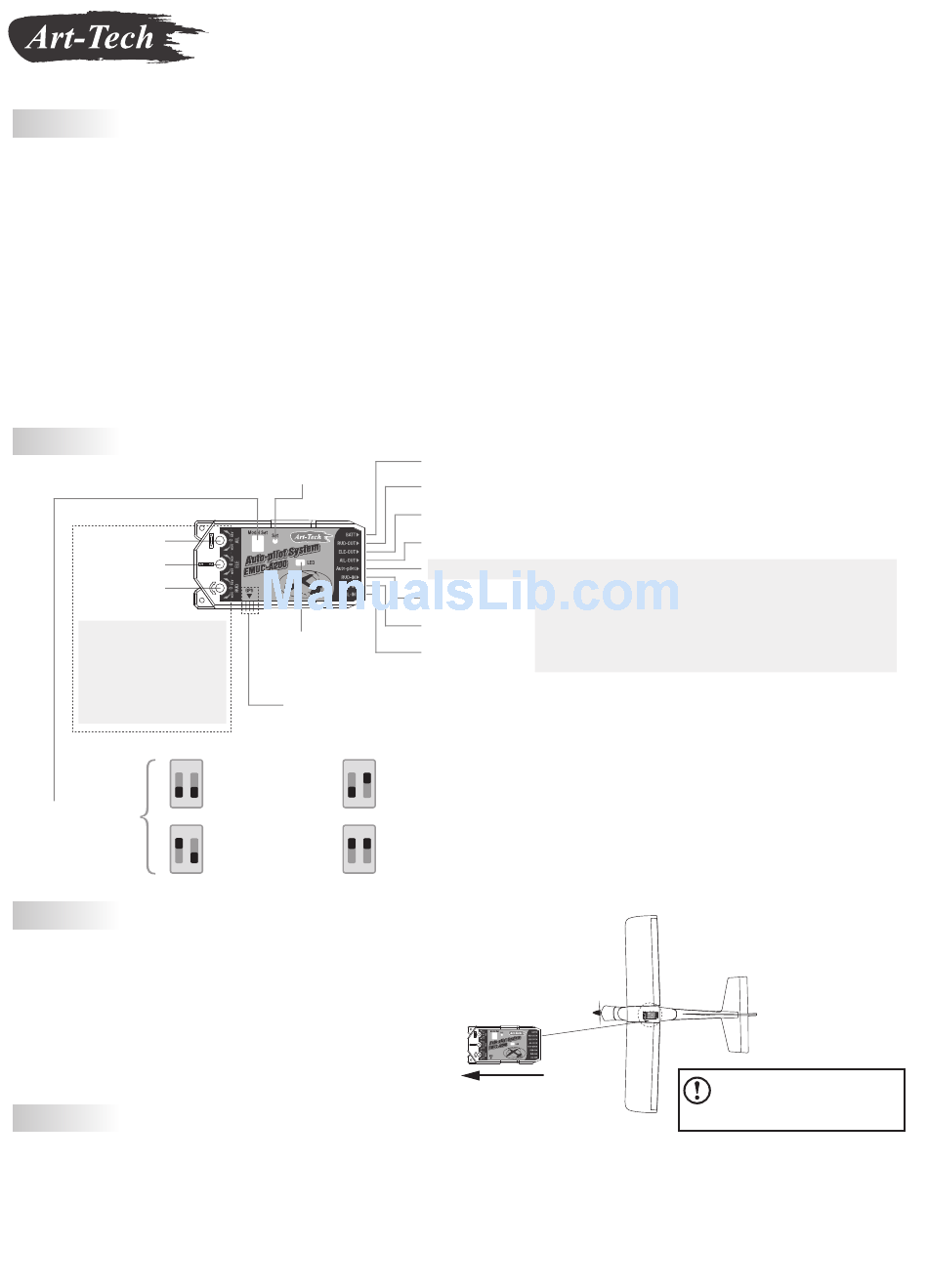

Art-Tech EMUC-A200 Instruction Manual

Features

EMUC-A200 system is designed to provide a high precision self-correction and superb accurate stabilization for your airplane.
This system will help you to become more confident in flight.
1. Safe and reliable design.
2. Inertial vector measuring, Barometer, applicable to all weather.
3. Compatible with great range of fixed wing designs.
4. Incorporated with PID smart control, leaving every adjustment to the equipment itself.
5. Multiple flight modes are available; covering pilots from beginner to 3D Pilots.
6. 3-Axis stabilization.
7. Smart self-correction. (Input full control, system will lock the travel at 45 degree).
8.GPS "Home" point flight back compatible (Optional).

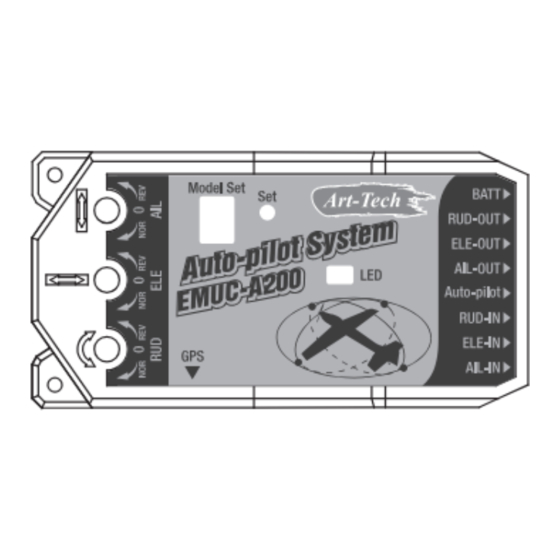

Block Diagram

AIL Gain
ELE Gain
RUDD Gain
When the potentiometer is
in the middle position, it is
with minimum feedback,
to both sides the gain will
be increased, with a
positive and a negative
feedback result.
ON
Normal Wing
1 2
Wing Selection
ON
Flying Wing
1 2

Installation

Orientate the receiver horizontally and keep the connector
toward the tail. Please note: locate the receiver as close as
possible to the CG with good shock absorption material to
realize the max optimum effect.

LED Lights Instruction

1. Without GPS module, LED light solid.
2. Without GPS but sensor is in the state of initialization, LED light quick flashing when power on; keep the airplane steady and
level on the ground till the LED turns solid, this indicates you are ready for flight.
3. GPS module connected and successfully bound, LED light flashes at 2HZ speed.
EMUC-A200 Auto Pilot Instruction Manual
GPS Mode
LED Indicator
GPS Connector (optional, need to buy GPS module separately)
ON
V Tail or A Tail
1 2
ON
Sensor Initialization (gyro and angular accelerating sensor start initializing when
power on. Keep your airplane steady on the level ground, LED light turns solid when
1 2
initialization completed)
5V Input Voltage
RUDD Output
ELE Output
AIL Output
Flight Mode/Auto-pilot: Connect the two- switch: flight mode and Auto-pilot mode.
Connect the three-switch: w/o GPS mode, the sequence is
RUDD Input
Auto-pilot mode, 3D mode and flight mode. With GPS mode,
the sequence is Auto-pilot mode, fixed high directional mode
ELE Input
(by balancing mode cut to the middle position), fixed height
mode (by returning to the middle position), automatic return
AIL Input
mode (GPS before positioning for Auto-pilot mode).
Heading Orientation
(Installation sketch map)
Notice: Fix your receiver
tightly and keep the
connector toward the tail.
